30 Sets of Test Data Storage Capability 5-Inch Touch Screen Rotational Viscometer

Rotational Viscometer

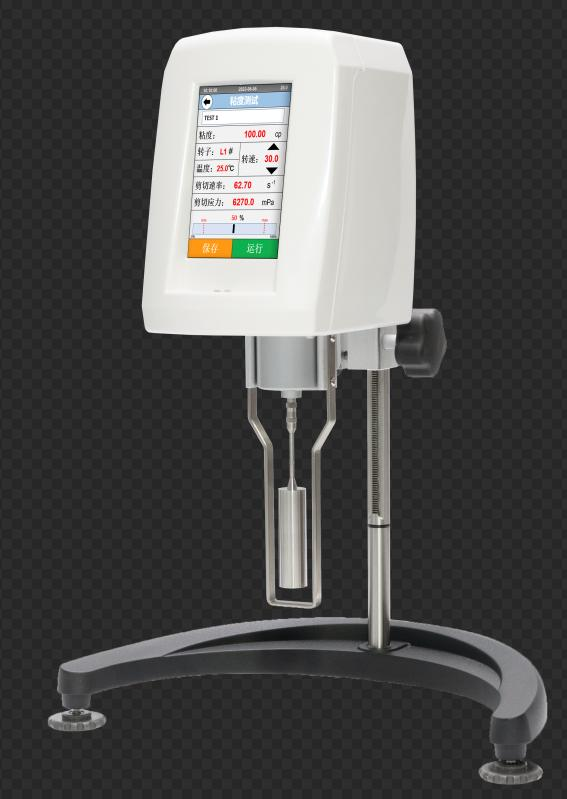

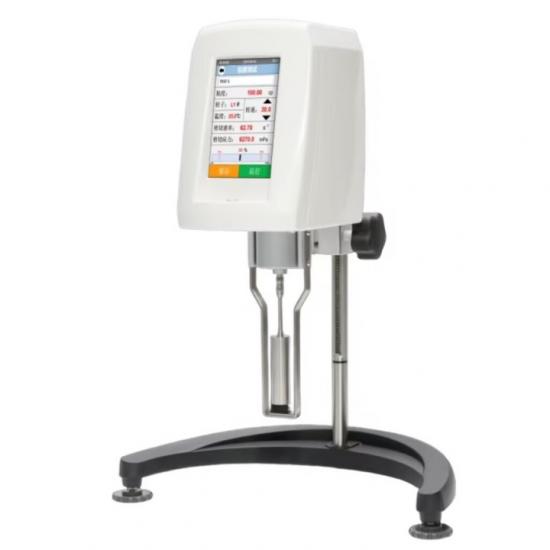

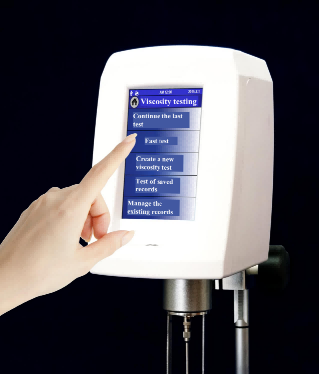

The LVDV-2T rotational viscometer is perfectly integrated with touchscreen technology, offering a stylish and modern high-tech solution for quickly, accurately and conveniently measuring viscosity. It is highly functional, with stepless adjustment and the ability to measure samples with extremely high viscosity.

It has 30 built-in test programs and can save 30 sets of test data. The 5-inch large color touchscreen can comprehensively and vividly display various parameters and working conditions. It has the advantages of multiple measurement parameters, rich display content, convenient operation, clear reading, high measurement accuracy, stable rotational speed, strong anti-interference performance, the ability to display shear rate and viscosity curves, and wide working voltage range. It can replace similar imported instruments.

Main charateristic:

1. Adopting ARM technology and equipped with a Linux system. The operation interface is simple and clear. Through the creation of test programs and data analysis, viscosity tests can be conducted quickly and conveniently;

2. Accurate viscosity measurement: Each range is automatically calibrated by the computer, with high precision and small error;

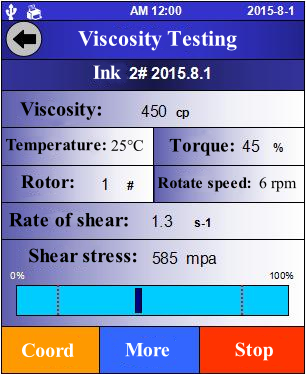

3. Rich display content: Besides viscosity (dynamic viscosity and kinematic viscosity), there are temperature, shear rate, shear stress, percentage of measurement value to full range value (graphical display), range overflow alarm, automatic scanning, maximum measurement range under the current rotor speed combination, date, time, etc. It can also display kinematic viscosity under known density, meeting different measurement requirements of users;

4. Complete functions: Timed measurement, self-creation of 30 test programs, access to 30 sets of measurement data, real-time display of viscosity curves, printing of data and curves, etc.;

5. Front-mounted level gauge: Level adjustment is intuitive and convenient;

6. Stepless speed regulation: RV1T series: 0.3 - 100 rpm, a total of 998 speeds; RV2T series: 0.1 - 200 rpm, a total of 2000 speeds;

7. Display curve of shear rate on viscosity: The range of shear rate can be set, and it is displayed in real time on the computer; it can also display the curve of time on viscosity;

8. Standard USB interface for inserting USB drive to directly copy data;

9. Optional Pt100 temperature probe: Wide temperature measurement range from -20 to 300℃, with a measurement accuracy of 0.1℃;

10. Rich optional accessories: viscosity meter-specific constant temperature bath, constant temperature cup, printer, standard viscosity samples (standard silicone oil), etc.;

11. Chinese-English operating system (set before factory shipment).

The torque of the hairspring, the shape of the rotor, the speed, and the measurement range of viscosity are all the same as those of the imported type of viscosity meter. The measured viscosity data and other information have a good comparability with those of the imported similar instruments.

It is widely applied in industries such as paints, coatings, cosmetics, inks, pulp, food, oil products, starch, solvent-based adhesives, latex, biochemical products, etc., as well as in samples that require heating and melting, such as paraffin, polyethylene wax, rosin, asphalt, hot melt adhesives, etc.

Detailed technical parameters:

Model	TAMX-LVDV-2T
Control / Display	5-inch color touch screen
Rotational speed (r/min)	0.1 - 200 continuous variable speed range There are 2000 different rotational speeds available.
Measuring range	0.3 - 600 million mPa.s (For ultra-low viscosities below 10, ULR must be selected)
Rotor	1 - 4 models (standard configuration) Enhanced ultra-low viscosity adapter ULR (optional) A small sample adapter (for rotors 18, 25, 31, and 34) (optional)
Sample quantity	Rotors 1-4: Measurement range 10-6M, 300 - 400ml ULR: Measurement range 0.3 - 1000, 21ml Rotor 18: Measurement range 1.5 - 30K, 7ml Rotor 25: 240 - 4.8M; 9ml Rotor No. 31: 15 - 300K; 10.5ml Rotor No. 34: 30 - 600K; 11ml
Sample quantity	K = 1000; M = 1000000
Measuring error	± 1% (Newtonian fluid)
Repetitive error	±0.2% (Newtonian fluid)
Display shear stress /Shear rate	Standard configuration
Timing function	Standard configuration
Real-time display of viscosity curve	Temperature-time curve Viscosity-time curve (With the optional data processing software, the rheological curves of shear rate and viscosity can be displayed)
Kinematic viscosity	The density of the sample needs to be entered.
Temperature measurement function	Standard temperature probe interface (temperature probe needs to be selected separately)
Automatic scanning function	Automatically scan and recommend the preferred combinations of rotors and speeds
Maximum measurement range	Automatically display the viscosity range that can be measured by the combination of the selected rotor and rotational speed
Self-developed Measurement program	Up to 30 sets can be saved (including rotor, speed, temperature, time, etc.)
Save the measurement results	Up to 30 sets of data can be saved (including viscosity, temperature, rotor, speed, shear rate, shear stress, time, density, kinematic viscosity, etc.)
Print	Data and curves can be printed (standardly equipped with a printing interface; a printer needs to be purchased separately)
Data output interface	USB: Can be inserted into a USB drive and directly copy data RS232: Special connection for connecting to a computer
Constant temperature component	Options (including various viscosity meters' dedicated constant temperature baths, constant temperature cups)
Working power supply	Wide voltage operation (110V / 60Hz or 220V / 50Hz)
Overall dimensions	300 × 300 × 450（mm）

Rotational Viscometer

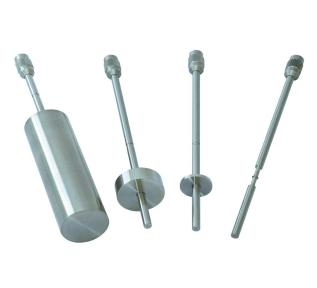

The standard 1-4 rotor set, from left to right: 1, 2, 3, 4

Option：

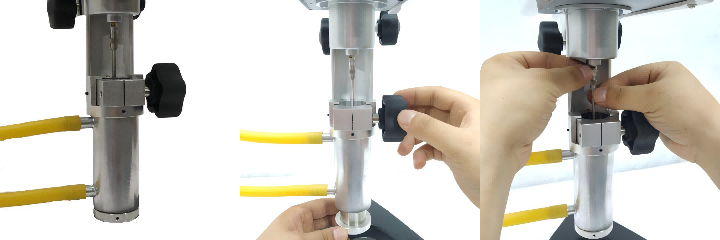

1. Enhanced Ultra-Low Viscosity Adapter (ULR without circulation jacket or ULR plus with circulation water jacket)

Designed specifically for low-viscosity fluid measurement, it offers two specifications: jacketed type and non-jacketed type. The minimum detection limit is up to 1cP, and this range depends on the model of the viscosity meter used.

Rotational Viscometer

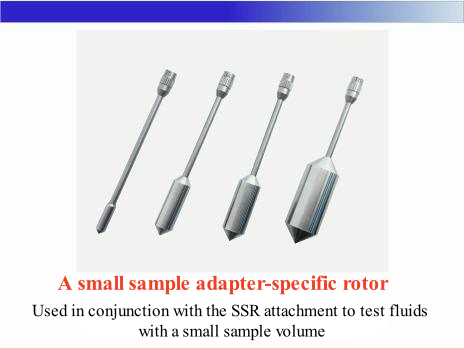

2. Small sample adapters (from left to right: rotor numbers 18, 25, 31, 24)

Rotational Viscometer

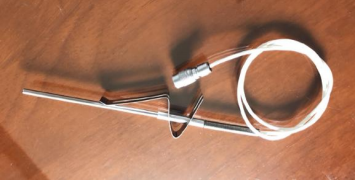

3. Temperature probe (temperature sensor)

Using Pt100 platinum resistance ; Temperature measurement range: -20 - 300℃

Measurement accuracy: 0.1℃

4. Miniature thermal printer

It can be directly connected to the viscometer to print data and curves.

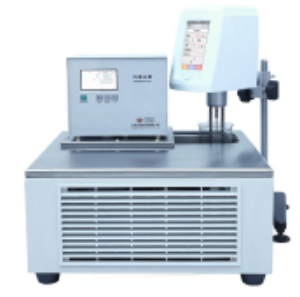

Special constant-temperature bath for viscometers

Temperature control range: -20 to 100℃

Temperature control accuracy: 0.1 or 0.01℃

Opening size: 145*145*150 (length x width x depth)

Can accommodate a 500ml ordinary beaker

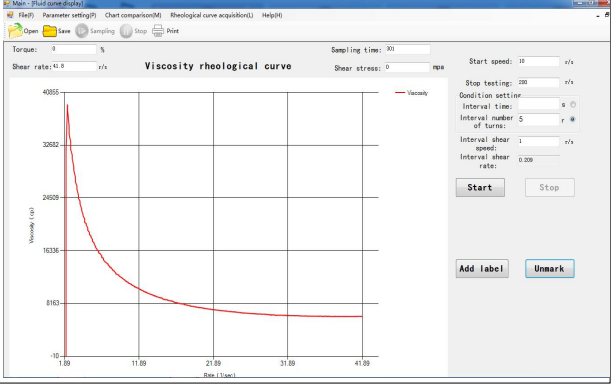

6. data processing software

By setting the measurement parameters of the viscometer through the computer, the rheological curve showing the shear rate and viscosity can be displayed.
