Lab High Speed Super Large Capacity Refrigerated Ultra Centrifuge for Biological Pharmacy Research

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-GL-10MD
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

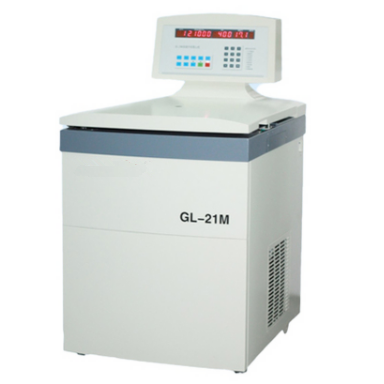

Lab High Speed Super Large Capacity Refrigerated Ultra Centrifuge for Biological Pharmacy Research

This is a university laboratory centrifuge designed for customers with large capacity and high speed requirements. Used in bioengineering, genetic engineering, biopharmaceutical and other fields.

1. The maximum speed can reach 10000rpm, and the maximum relative centrifugal force can reach 18300xg.

2. Microcomputer control, AC variable frequency motor drive, prolong service life; low noise and vibration.

3. Touch panel, digital display.

4. The user can arbitrarily set the acceleration and deceleration time, automatically calculate the RCF value, and ensure the centrifugal effect.

5. It is equipped with various protections such as over-temperature, over-speed, unbalance, door cover self-locking, etc. to ensure the safety of people and machines.

6. Programmable operation, store multiple routine programs.

7. Imported environmental protection refrigeration system, good refrigeration effect.

8. The 4×1000ml horizontal rotor is equipped with various adapters, which is convenient for users to use.

Technical Parameters

Model	TMAX-GL-10MD
Order No	0202115000
Max.Speed	10000rpm
Max.RCF	18300xg
Max.capacity	6x1000ml
Speed accuracy	±10rpm
Time rang	1min to 23h59min
Temp range	-20℃~40℃
Temp control accuracy	±1℃
Compressor set	Environment-friendly with (R404a)refrigerant
Noise	<65dB(A)
Power supply	AC220V±22V 50Hz 30A
Power consumption	5.5kW
Dimensions (WxDxH)	710x820x1200mm
Packing size (WxDxH)	920x1040x1520mm
Net weight	130kg

GL-10MD ROTOR

NO.	ITEM	MAX. RPM （r/min）	MAX.RCF (×g)	CAPACITY
No.1	Angle Rotor	10000	18300	6×250ml
No.2	Angle Rotor	8000	11620	6×500ml
	Adapter	8000	11620	6×13×1.5ml
				6×10×5ml
				6×7×10ml
				6×7×15ml
				6×30ml/50ml
				6×50mlsharp bottomed
				6×50ml
				6×2×50mlsharp bottomed
				6×100ml
				6×250ml
No.3	Angle Rotor	7000	11500	6×1000ml
	Adapter	7000	11500	6×4×50ml
				6×4×50ml（sharp bottomed）
				6×4×250ml
				6×500ml
No.4	Horizontal transposon	4000	4050	4×1000ml
	Horizontal round cups	4000	4050	4×1000ml
	Adapter	4000	4050	4×500ml
				4×300ml
				4×3×100ml
				4×5×50ml(sharp bottomed)
				4×5×50ml
				4×14×15ml(sharp bottomed)
				4×14×15ml
				4×37×7ml
				4×24×5mlblood collection tube
				4×28×1.5ml
				4×200ml（blood bag）
				4×250ml(sharp bottomed)
