Product Details

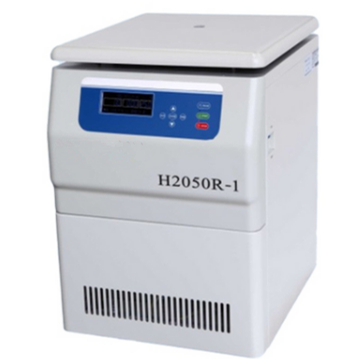

High Speed Refrigerate Centrifuge for Medical Examination and University Scientific Research

This is a high-speed refrigerated centrifuge with 11 different rotors, which can not only centrifuge in large capacity (4×750ml), but also centrifuge at high speed (20500RPM). It is a multifunctional centrifuge designed by combining the technology and performance of high-speed centrifuge and large-capacity centrifuge. It has powerful functions and is suitable for biopharmaceuticals and scientific research in universities.

1. There are 11 different rotors to choose from, which can be used for both large-capacity centrifugation and high-speed centrifugation.

2. Microcomputer control, high-torque AC variable frequency brushless motor is directly driven to prolong the service life.

3. Large-screen liquid crystal display (LCD), programmable operation.

4. 9 kinds of acceleration curves, 10 kinds of deceleration curves (No. 0 is free parking), three-stage damping and shock absorption, and good centrifugal effect.

5. It is equipped with various protections such as overspeed, overtemperature, door cover self-locking, stainless steel inner sleeve, and three-level protective cover to ensure personal and machine safety.

6. The rotor is automatically identified, and over-speed control is carried out, making the centrifugation safer.

7. Imported high-efficiency environmental protection refrigeration system, the maximum speed can be kept below -4℃.

Technical Parameters

Temperature Control	±1℃	Compressor Set	Advanced and environment-friendly compressor set with R404a
Max.speed	20500rpm	Noise	≤65dB(A)
Max.RCF	29200xg	Power supply	AC220V +/-22V,50Hz 16A
Max,capacity	4x750ml	Power Consumption	1500W
Speed accuracy	±10rpm	Dimensions(WxDxH)	550x650x840(mm)
Time range	1min~99min59s or continuous run	Packing Size (WxDxH)	756x856x1320(mm)
Temperature range	-20℃~40℃	Net weight	110Kg

H2050R-1 ROTOR

NO.	ITEM	MAX. RPM （r/min）	MAX. RCF(×g)	CAPACITY
No.1	Angle Rotor	20500	29200	12×1.5/2.2ml
No.2	Angle Rotor	16500	19175	12×5ml
No.3	Angle Rotor	15000	23120	12×10ml
No.3	Angle Rotor	15000	23120	6×30ml
No.4	Angle Rotor	13000	17940	6×50ml
No.4	Angle Rotor	13000	17940	6×50ml（sharp bottomed）
No.5	Horizontal transposon	4000	3500	4×750ml
No.5	Horizontal round cup	4000	3500	4×750ml
No.6	Horizontal transposon	4000	3040	4×500ml
	Enzyme plate hanger rotor	4000	3040	4×2×96 hole
	Horizontal hanging cup rotor	4000	3040	4×24×5ml （blood collection tube）
	Horizontal hanging cup rotor	4000	3040	4×37×7ml （放免管）
	Square hanging basket rotor	4000	3040	Four hanging basket
	Horizontal round cup rotor	4000	3040	4×500ml
No.7	Angle Rotor	16500	26050	24×1.5/2.2ml
No.8	Angle Rotor	12000	15805	6×85ml
No.9	Angle Rotor	10000	11960	6×100ml
