High-speed 25000rpm Large-Capacity Refrigerated Centrifuge

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-H2500R-2
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

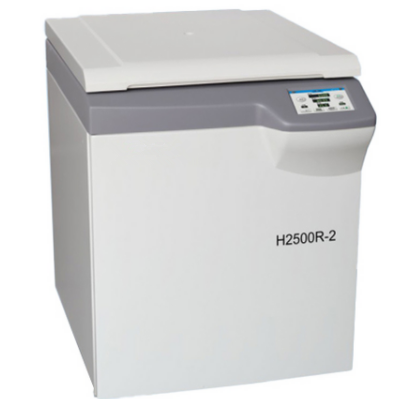

High-speed 25000rpm Large-Capacity Refrigerated Centrifuge

This is a high-speed refrigerated centrifuge that brings together many high-tech technologies and incorporates many new design elements. Its shape design is simple and easy to operate. The breakthrough of high-speed operation technology makes the maximum speed of this machine reach 25000rpm, and the maximum relative centrifugal force can reach 64800×g, which is suitable for universities, scientific research and biological engineering and other fields.

1. The maximum speed can reach 25000RPM, and the maximum centrifugal force can reach 64800xg.

2. Fully automatic rotor recognition and automatic overspeed protection make the centrifuge safer.

3. There are 13 different rotors to choose from, and the large-screen LCD displays the setting parameters and operating parameters at the same time.

4. The operating parameters of the main engine and rotor are automatically stored, and the service life of the rotor is automatically calculated and alarmed.

5. It is directly driven by a high-torque variable frequency motor, with large starting torque and short acceleration time.

6. Equipped with unbalanced, over-temperature, over-speed protection functions to ensure personal and machine safety.

7. The RCF value can be set for direct centrifugation without setting the speed.

8. Imported environmentally friendly compressor units (refrigerant R404a) are used to meet environmental protection requirements.

9. Sensitive touch screen and control system.

Technical Parameters

Model	TMAX-H2500R-2
Max speed	25000rpm
Max RCF	64800xg
Capacity	4x1000ml
Speed accuracy	-/+10rpm
Time range	1min~23h59min
Temp.range	-20℃~40℃
Temp.accuracy	±1℃
Compressor set	Environment-friendly compressor set with R404a refrigerant
Noise	≤65dB(A)
Power supply	AC220V ±22V,50Hz,25A
Power consumption	5kW
Dimensions (WxDxH)	730930960(mm)
Packing size(WxDxH)	92010401560(mm)
Net Weight	260kg

H2500R-2 ANGLE ROTOR

NO.	ITEM	MAX.RPM	MAX.RCF	CAPACITY
No.1	Angle Rotor	25000	64800	24×1.5/2ml
No.2	Angle Rotor	23000	60460	18×10ml
No.3	Angle Rotor	21000	52356	8×50ml
	Angle Rotor	21000	52356	8×50ml
	Angle Rotor	21000	52356	8×50ml
No.4	Angle Rotor	15000	33800	4×250ml
No.5	Angle Rotor	14000	30070	6×250ml
No.5	Angle Rotor	14000	30070	6×250ml
No.6	Angle Rotor	10000	17700	6×500ml
No.6	Angle Rotor	10000	17700	6×500ml
No.7	Angle Rotor	8000	12040	4×1000ml
No.8	Angle Rotor	22000	54706	30×1.5ml
No.9	Angle Rotor	18000	36220	12×15ml（sharp bottomed）
No.10	Swing Rotor	10000	15680	6×50ml(fan with protection basket)
No.11	Angle Rotor	14000	30070	12×50ml（sharp bottomed）
No.12	Horizontal transposon	5000	5470	4×750ml
No.12	Horizontal round cup	5000	5470	4×750ml
No.13	Horizontal transposon	4000	3040	4×500ml
	Enzyme plate hanger rotor	4000	3040	4×2×96 hole
	Horizontal hanging cup rotor	4000	3040	4×24×5ml （blood collection tube）
	Horizontal hanging cup rotor	4000	3040	4×37×7ml （放免管）
	Square hanging basket rotor	4000	3040	Four hanging basket
	Horizontal round cup rotor	4000	3040	4×500ml
