Hot Selling High Speed Refrigerated Centrifuge can Put 3000ml Continuous Rotor

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-GL-21M
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

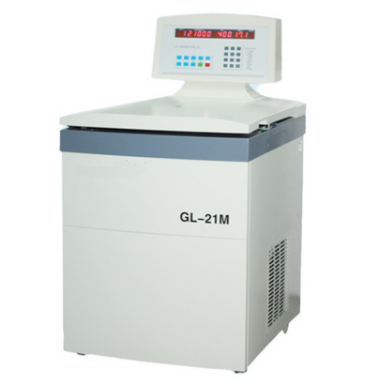

Hot Selling High Speed Refrigerated Centrifuge can Put 3000ml Continuous Rotor

This is a floor-standing high-speed refrigerated centrifuge, which has been produced by Xiangyi for many years. There are as many as 17 types of rotors, including continuous flow rotors, titanium alloy rotors, and aluminum alloy rotors; its technology, performance, quality, and rotor characteristics Diversity and many other elements make this high-speed machine trusted by customers.

1. There are 17 types of rotors with different capacities to choose from, including 4 types of continuous flow rotors,

meet user needs.

2. The maximum speed can reach 21000rpm, and the maximum centrifugal force can reach 47400xg.

3. The imported environmental protection compressor unit is adopted to ensure the cooling effect and meet the environmental protection requirements.

4. Microcomputer control, AC variable frequency motor drive, prolong service life; low noise and vibration.

5. Touch panel, digital display, programmable operation.

6. The acceleration and deceleration time can be set arbitrarily, the RCF value is automatically calculated, the cooling and heating dual-circuit temperature control, and the centrifugal effect is good.

7. There are various protections such as overspeed, overtemperature, unbalance, door cover self-locking, etc. to ensure the safety of personal and machine.

Technical Parameters

Model	TMAX-GL-21M
Order No	0202110000
Max speed	21000rpm
Max RCF	47400xg
Capacity	4x750ml
Speed accuracy	-/+10rpm
Time range	1min~23h59min
Temp.range	-20℃~40℃
Temp.accuracy	-/+1℃
Compressor set	Environment-friendly compressor set with R404a refrigerant
Noise	≤65dB(A)
Power supply	AC220V +/-22V,50Hz 30A
Power consumption	5kW
Dimensions (WxDxH)	710x820x1200(mm)
Packing size(WxDxH)	920x1040x1520(mm)
Net Weight	310kg

GL-21M ROTOR

NO.	ITEM	MAX. RPM（r/min）	MAX. RCF (×g)	CAPACITY
No.1	Angle Rotor	21000	47400	16×10ml
No.2	Angle Rotor	20000	43000	6×50ml
	Angle Rotor	20000	43000	6×50ml(sharp bottomed)
	Angle Rotor	20000	43000	6×50ml
No.3	Angle Rotor	16000	28618	12×15ml（sharp bottomed）
No.4	Angle Rotor	14000	29440	4×250ml
No.6	Swing Rotor	5000	5470	4×750ml
	Horizontal round cup	5000	5470	4×750ml
	Adapter	5000	5470	4×2×100ml
				4×10×20ml
				4×4×50ml(sharp bottomed)
				4×4×50ml
				4×14×15ml(sharp bottomed)
				4×19×15ml
				4×24×7ml
				4×37×5ml
				4×300ml
				4×500ml(sharp bottomed)
				4×500ml
No.9	Angle Rotor	12000	21280	10×100ml
No.10	Angle Rotor	12000	22470	6×250ml
No.11	Swing Rotor	4000	3040	4×500ml
	Enzyme plate hanger rotor	4000	3040	4×2×96孔
	Square hanging basket rotor	4000	3040	Four hanging basket
	Adapter	4000	3040	4×250ml
				4×4×50ml(sharp bottomed)
				4×4×50ml
				4×25×1.5ml
				4×10×15ml(sharp bottomed)
				4×10×15ml
				4×20×10ml
				4×28×5ml
	Horizontal round cup rotor	4000	3040	4×500ml
	Adapter	4000	3040	4×19×5ml
				4×9×15ml
				4×7×20ml
				4×3×50ml
				4×300ml
				4×100ml
	Horizontal hanging cup rotor	4000	3040	4×37×7ml
	Horizontal hanging cup rotor	4000	3040	4×24×5ml
No.12	Angle Rotor	9000	14400	6×500ml
No.15	Angle Rotor	18000	37600	8×50ml
No.17	Angle Rotor	12000	22470	12×50ml(sharp bottomed)
No.7	Continuous centrifugal rotor	14000	21500	1000ml
No.8	Continuous centrifugal rotor	8000	9500	3000ml
No.13	Ti Continuous centrifugal rotor	16000	28100	1000ml
No.14	Ti Continuous centrifugal rotor	10000	14800	3000ml
