Lab Four Column Manual Powder Pellet Hydraulic Press with Digital Display Pressure Gauge 15T 24T 30T 40T

Lab Four Column Manual Powder Pellet Hydraulic Press with Digital Display Pressure Gauge 15T 24T 30T 40T

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-SYP-15AS
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

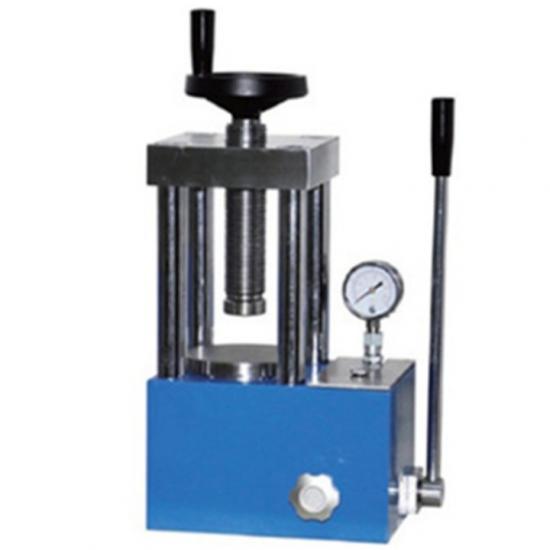

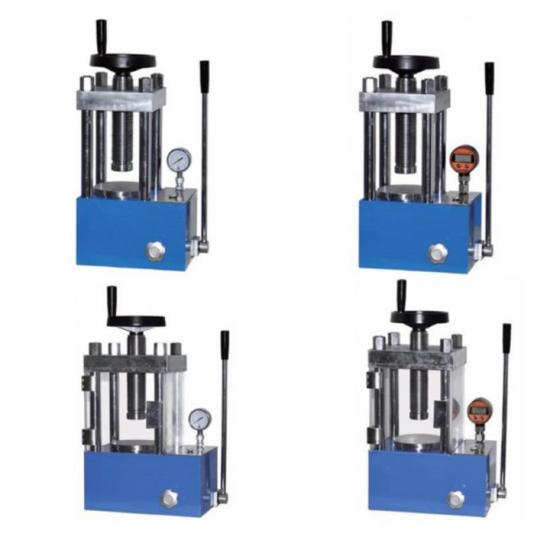

Lab Four Column Manual Powder Pellet Hydraulic Press with Digital Display Pressure Gauge 15T 24T 30T 40T





New SYP-TS digital display series


SYP-TS series protective hydraulic press is based on SYP-T pointer series upgrade and optimize the pressure display series, using XNNETS "S" type digital display pressure gauge, display accuracy of 0.01MPa, is very suitable for safety and pressure control precision requirements of the laboratory use.

With a specific mold, it can be pressed into shape for all kinds of powder samples. It is a common supporting equipment for calcium and iron analysis, infrared spectroscopy (IR), X-ray fluorescence (spectrometer) and other analytical instruments.

At the same time the machine is also suitable for other need corresponding pressure in the workplace, as the use of press, testing the pressure degree of various objects, etc., the application is very wide.




Parameters


Model

SYP-15AS

SYP-24BS

SYP-30TS

SYP-40CS

Pressure range

0-15T(0-30Mpa)

0-24T(0-34Mpa)

0-30T(0-31.5Mpa)

0-40T(0-30Mpa)

Pressure conversion

1T=2.0Mpa

1T=1.42Mpa

1T=1.05Mpa

1T=0.75Mpa

Piston diameter

Φ80 chrome plated cylinder

Φ95 chrome plated cylinder

Φ110 chrome plated cylinder

Φ130 chrome plated cylinder

Maximum piston stroke

30mm

30mm

40mm

50mm

Type of pressure gauge

XNNETS "S" digital pressure gauges, range 0.01-40.00 MPa, accuracy 0.01MPa

Pressure mode

Manual pressurization/manual slow pressurization

Pressure stability

≤1MPA/10min

Overall structure

One-piece structure, tightly connected equipment, reduce oil leakage points

Worktable diameter

Φ90mm

Φ105mm

Φ120mm

Φ140mm

Working space

80*130mm

80*150mm

92*160mm

106*185mm

Overall dimension

245*175*390mm

245*175*415mm

275*1955*420mm

295*215*500mm

Weight

40kg

42kg

56kg

75kg

Note

Four column tablet press, column height can be customized;

Optional "S" digital pressure gauge;

Accuracy 0.01 MPa, more accurate pressure control



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
