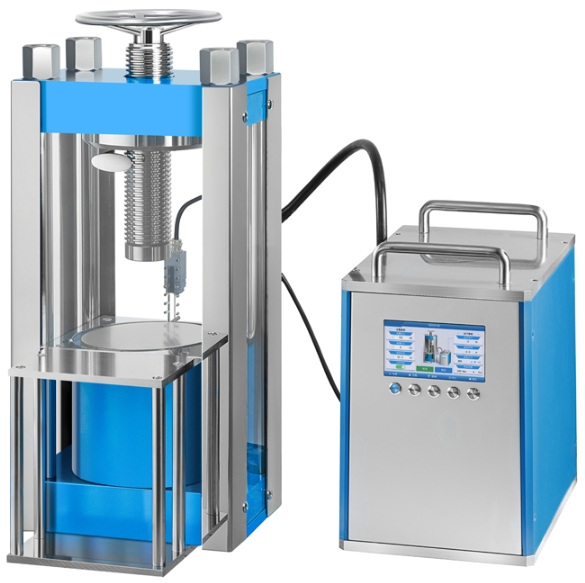

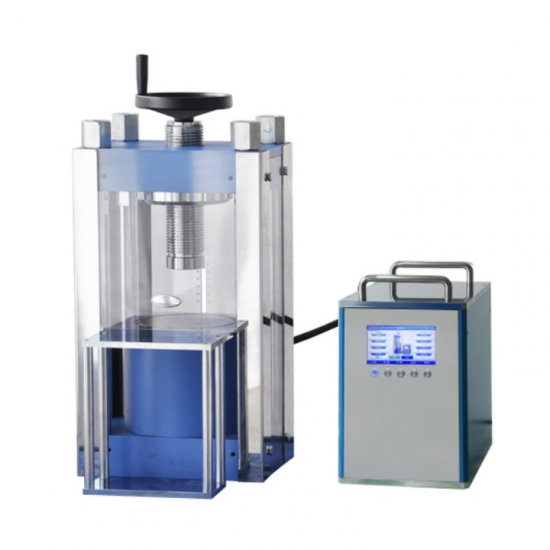

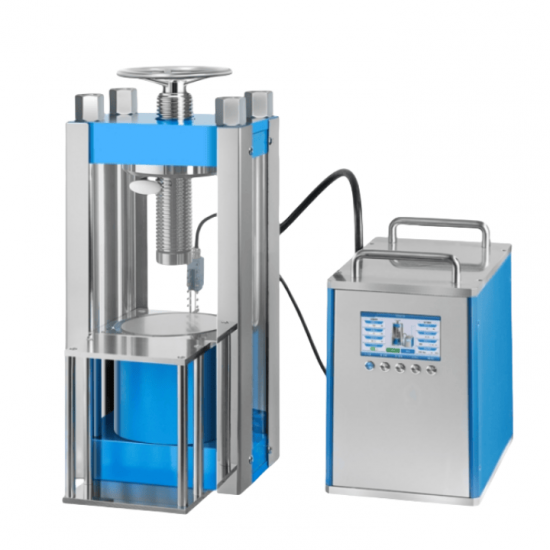

Lab 100T Programmable Split Type Automatic Press Machine

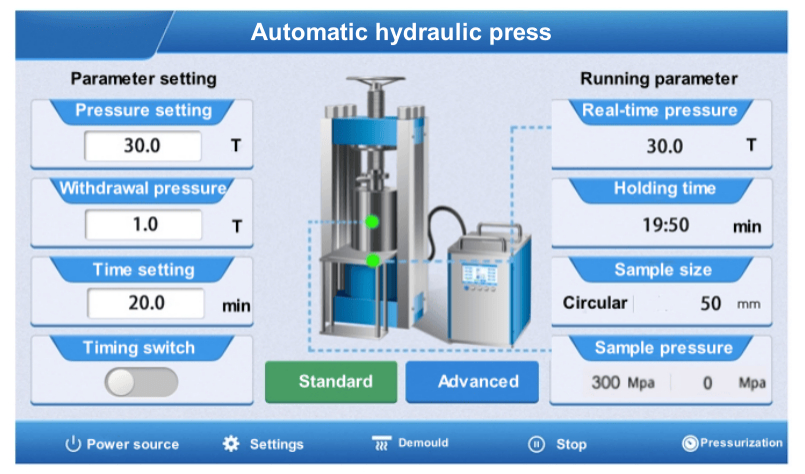

Operation interface (Standard mode)

Standard interface: Various parameters, pressure, demoulding, time, sample size, etc. can be set separately on this interface.

Pressurization button: Press according to the parameters set on the interface.

Stop button: Press the stop button during the pressurization process to stop the pressurization.

Demoulding button: Press the demoulding button to release the sample according to the demoulding pressure.

Timing switch: The timing function can be turned on and off.

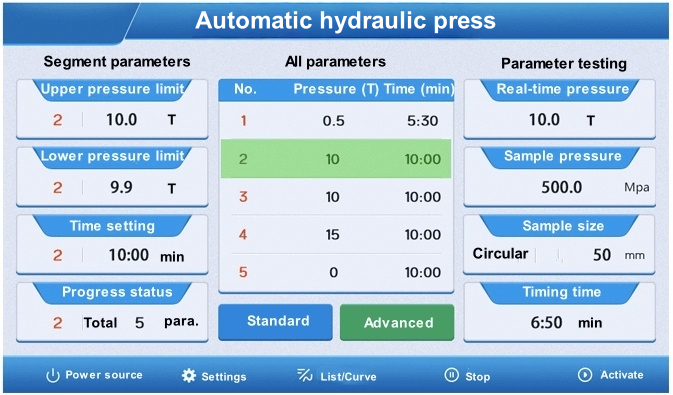

Operation interface (Advanced mode)

Activate button:It can be pressurized according to the multi-stage pressurization program.

Stop button: Press the stop button during the pressurization process to stop the pressurization.

Setting button: Click the Settings button to enter the Settings menu.

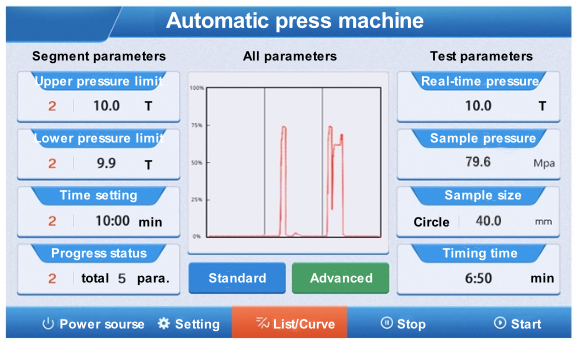

Operation interface (Advanced mode)

List/Curve: The current display state can be switched between list and curve.

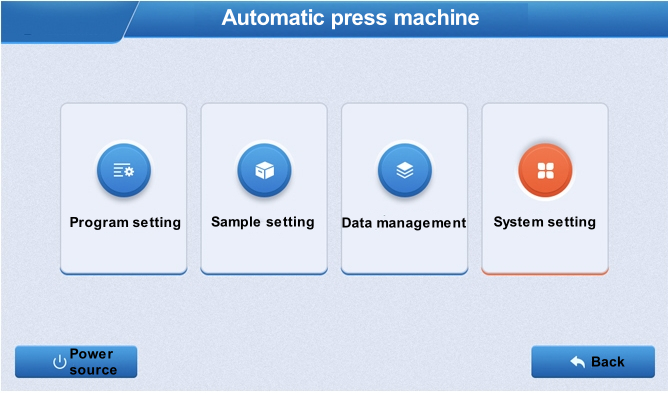

Setting interface

Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

Program Settings:Multi-stage pressure procedures and pressure holding times can be set.

Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

Data management: Previously saved data records can be invoked and modified..

System Settings: Administrators can set various parameters, enter the password "666"

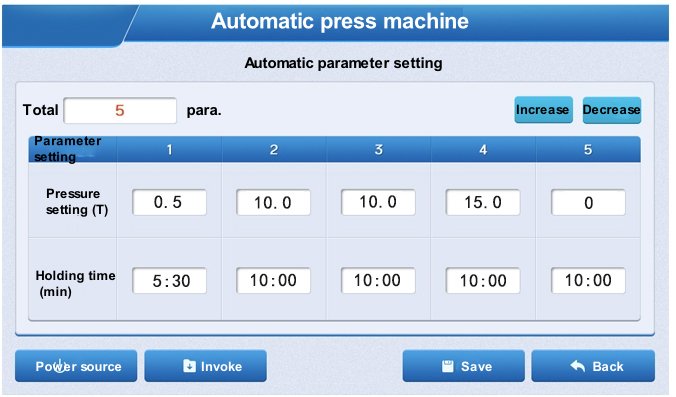

Setting interface

Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.

Invoke button: Invoke the set parameters to the automatic operation interface for pressure.

Save button: Save the set parameters to the database for later invocation.

Back button: Returns to the Settings screen

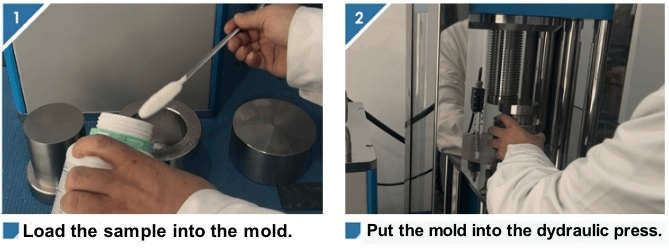

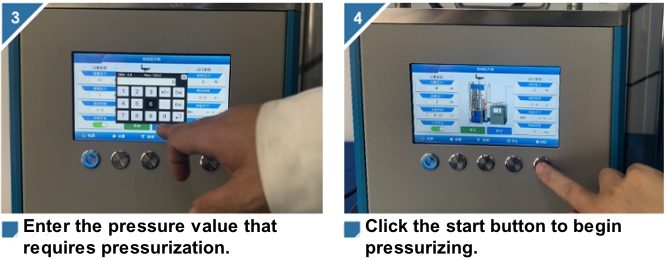

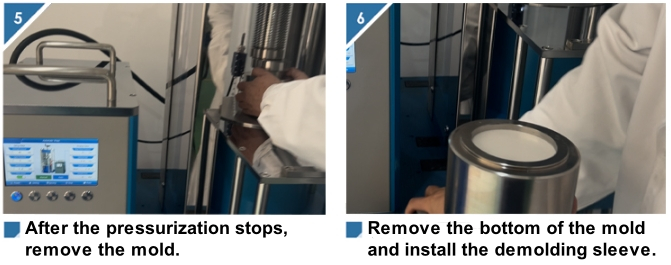

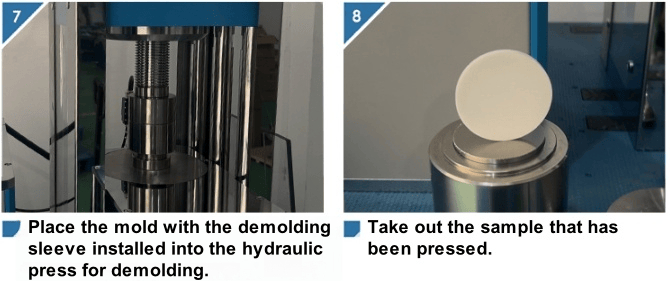

Operation procedure

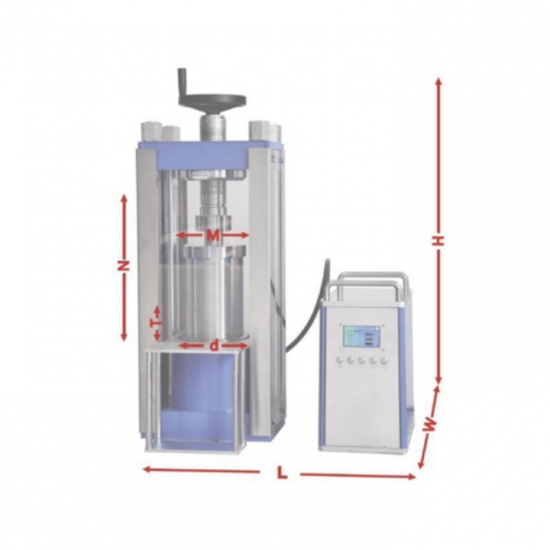

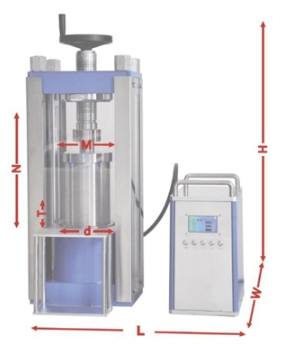

Technical parameter

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
