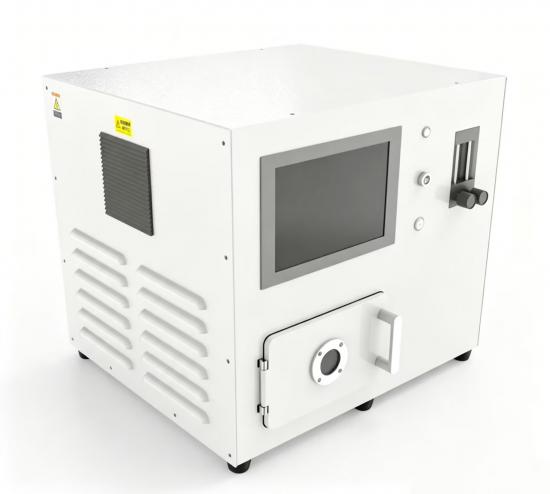

KT DL2L Plasma Cleaner Precision Surface Treatment for Semiconductor and Medical Devices

Product Introduction:

The plasma cleaning machine is a high-tech dry processing equipment that uses plasma to clean, activate, etch and modify the surface of materials. It is widely used in precision manufacturing, semiconductors, healthcare, electronics and new energy fields. It can handle various materials such as metals, plastics, rubber, glass, and high-molecular materials. It enhances surface performance: not only can it clean, but also improve the wettability, adhesion and coating adhesion of the materials.

The plasma cleaning machine is mainly composed of three parts:

1. Control unit: It includes power frequencies of 40KHz, 13.56MHz, and 2.45GHz, as well as the system control system.

2. (Buttons, PLC, touch screens, etc.).

3. Vacuum chamber: Made of stainless steel, it is used to hold samples and maintain a vacuum environment.

4. Vacuum pump: It is divided into dry pumps and oil pumps, which are used to evacuate the air to support plasma generation.

Advantages:

Environmental protection: No use of harmful solvents, no liquid discharge, it belongs to green cleaning technology.

Efficiency: The cleaning process only takes a few minutes and can reach deep into the micropores and internal parts of complex structures.

Safety: It avoids the harm to the human body caused by chemical reagents.

Technical parameters:

1. Chamber size: 160*160*90mm

2. Tray size: 130*130mm (two interchangeable)

3. Chamber material: 304 stainless steel with surface treatment

4. Overall size: approximately 470*410*430mm

5. Chamber volume: 2L

6. Power frequency: 40KHz

7. Power supply capacity: 0~1000W adjustable continuously

8. Flow meters: two high-precision float flow meters

9. Control process: fully automatic or manual (PLC human-machine interface)

10. Control system: 7-inch display, PLC control (Omron/UCON)

11. Cleaning time: 0~99999s adjustable

12. Vacuum degree: 1~30Pa

13. Chamber temperature: <60℃

14. Power supply voltage: 220V

15. Vacuum pump: 10m3/h (oil pump)

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
