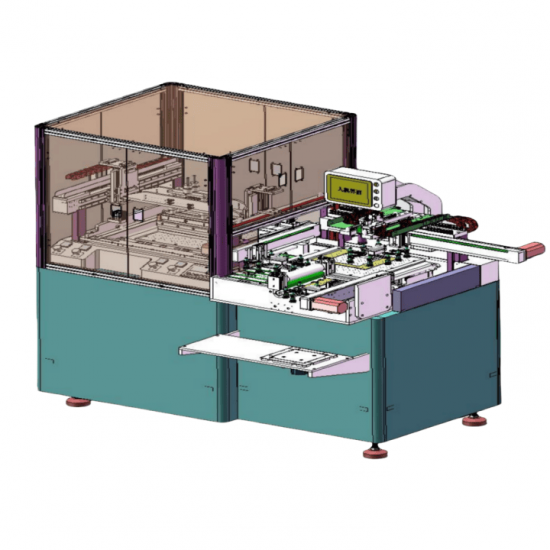

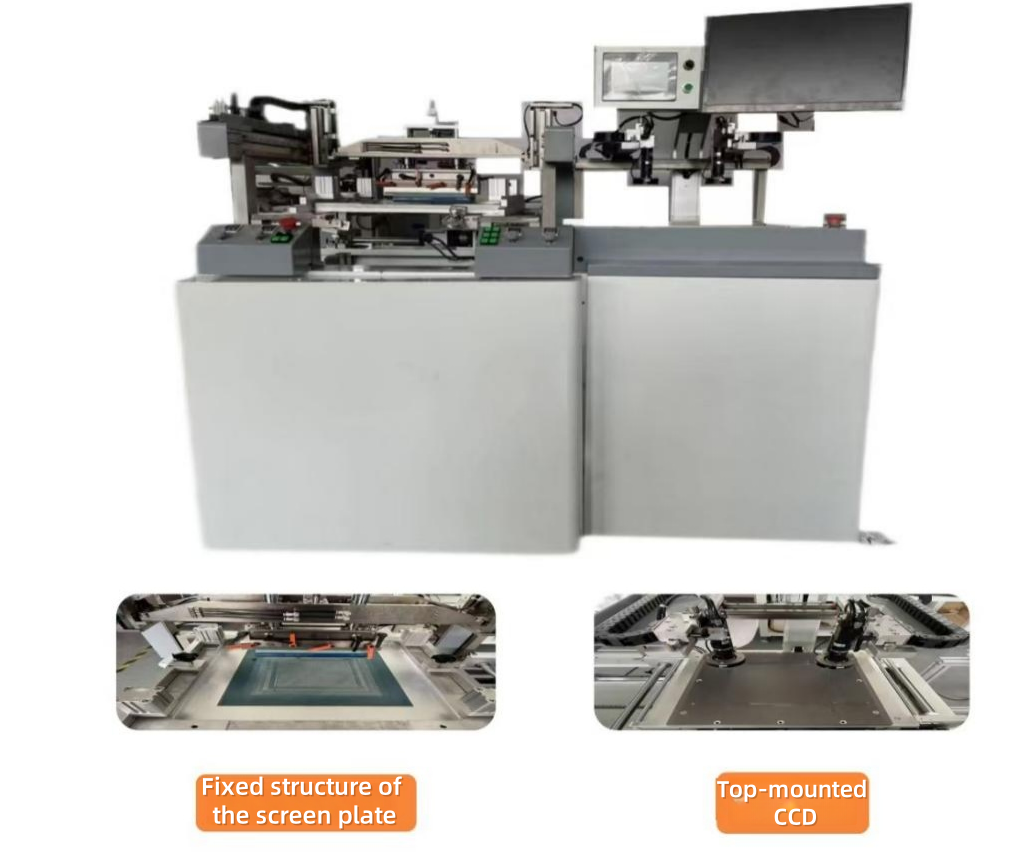

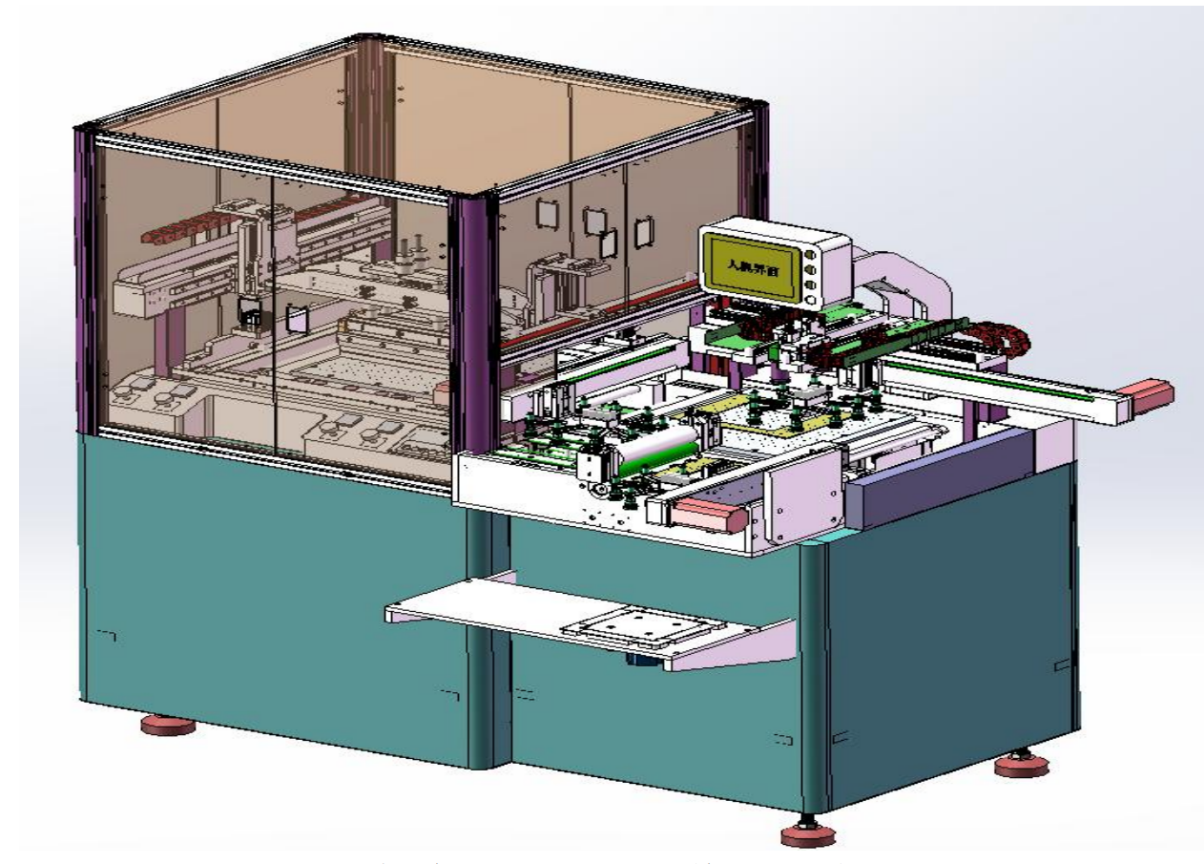

Lab High Precision Semiconductor Image Automatic Alignment Screen Printing Machine with Top-mounted CCD

1 Basic specifications

Machine outline size

Length 1500× Width 840× Height 1620mm

Printing area

Max. 250×250mm/Min. 40*50mm

Substrate thickness

0.05 mm~5.0mm

Uniformity of film thickness

<±0.001mm

Uses electrical

Three-phase, 220V, 50Hz 3.0KW

Air compressor

0~6kgf/cm²PSI (including air pressure reservoir, keep mechanical pressure stable)

2 Printing platen

Printing platen size

360mm×360mm

Countertop suction area

260×260mm

Table top in and out repeatability

0.001mm(servo + ball screw)

Table top delivery/direction

Left and right

Printing table adjustment

X:±4mm,Y:±4mm,θ:±2°

Table alignment accuracy

<±0.002mm

Repeat printing accuracy

<±0.005mm

Table surface accuracy

<±0.015mm

Parallelism between table and scraper

<±0.02mm

Parallelism between countertop and frame clip

<±0.02mm

Table speed

10~1500mm/s(settable)

Maximum lifting stroke of platform

15mm

Shift drive

Table top material

Configuration according to customer requirements

Automatic roll function

(Optional)

Automatic alignment device

CCD automatic positioning

Automatic supply and storage

Automatic (according to customer requirements)

3 Printing base

Printing mode

Printing base fixing

Printing speed

0~1200mm(per second)

Printing pressure

0~20kg/cm²

Scratch stroke

0~300mm(digital setting)

Printing motor

Travel set

Scraper height adjustment

20mm

Blade angle

-30°~30°

Ink return knife height adjustment

20mm

Angle of ink return knife

-30°~30°

Leveling adjustment on both sides of Scraper

Have

Printing drive

Servo motor

4 Mesh frame base

Maximum size of mesh frame

550×550mm

Frame thickness

25~50mm

Screen fixing

Servo motor + linear slide + ball screw (ensure low speed movement without inching phenomenon)

Screen base

Immobilization

The gap between the screen and the desktop

0~15mm

Automatic screen cleaning

(Optional)
