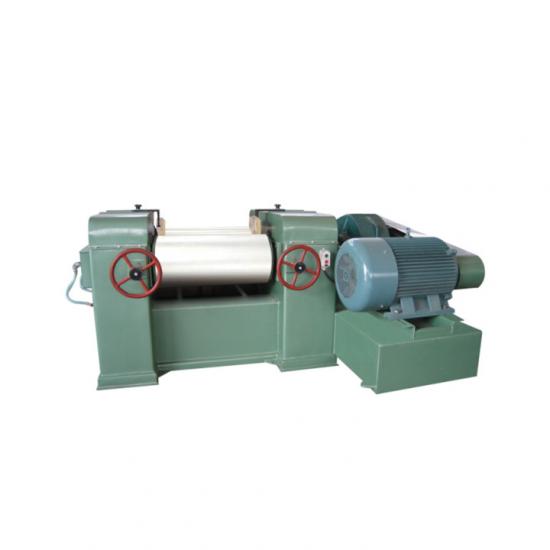

High Strengthen Three Roll Mill for Grinding and Mixing

The SQ series mainly for special high viscosity , high hardness material grinding and mixing. Enlager shaft head of roller, fixed gear and so on main parts improve to make the mill working stably, securely and powerfully. It's preferred to produce special material including pigment, pencil, palygorskite etc.

The mill can be follow customer requiremt producting with water cooling, steam heating and oil heating styles.

SPECIFICATION:

Model	SQ405	SQ260	SQ150
Working Length/mm	810	675	300
Roller diameter/mm	405	260	150
Slow roller speed/rpm	12.2	14	22
Middle roller speed/rpm	37.6	41	51
Fast Roller speed/rpm	116	117	118
Motor Power/kw	37-55	22-37	2.2-5.5
Reducer type	JZQ650	JZQ500	JZQ250
Speed ratio	1:3:9	1:3:9	1:2.3:5.8
Weight/kg	7500	3000	800
Overall size/mm	2860*2400*1360	2600*1800*1100	1450*1000*900

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
