High-precision Vertical Coating Machine with Bottom Heating and Air Suction

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-KT-Z150F
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

High-precision Vertical Coating Machine with Bottom Heating and Air Suction

Product Introduction

The KT-Z150F automatic coating machine is a high-precision vertical coating device specially developed for laboratories. It features fast preparation speed, excellent film formation and uniformity. It is particularly suitable for preparing 5-15cm perovskite battery modules in laboratories, as well as for the preparation of fuel cells, OLED and other devices. It is easy to clean, saves solution volume, has simple operation and good film formation performance. The bottom heating band is vacuum adsorbed, and is combined with a wind knife to assist in in-situ film formation. It is equipped with a high-precision imported coating head.

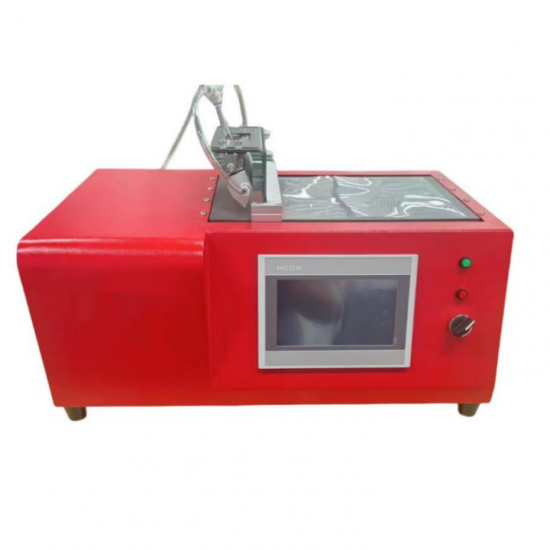

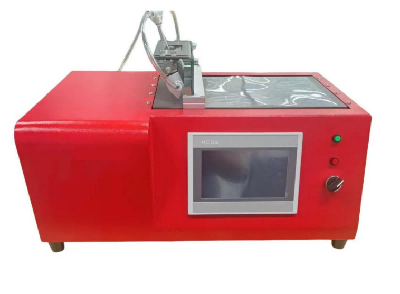

Equipment pictures (refer to the actual items)

Product features

1) Coating platform: Utilizes a high-level vacuum-adsorbing and heating coating platform to ensure the fixation of rigid substrates and the even spreading and adhesion of flexible substrates, thereby enhancing the uniformity of the film.

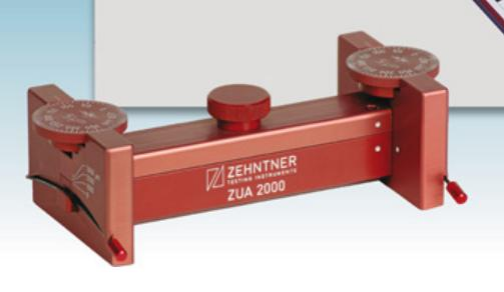

2) Coater: A variable wet film coater made of anodized aluminum alloy, non-decolorizing, resistant to acids and alkalis, and corrosion-resistant. It can precisely set a thickness ranging from 0 to 3000 μm, and can be completely disassembled for solvent cleaning. Essential for the paint and coating industry, also suitable for various experiments.

3) Coating speed: Can be adjusted continuously within the range of 0-100 mm/s. The coating length (starting point/ending point) and moving speed can be adjusted arbitrarily.

4) Air knife: Effective outlet diameter is 150 mm, with air intake from three sides. The height, distance, and angle of the air knife from the film can be adjusted.

5) Good solution applicability: The viscosity range of the coating solution is 0.8 - 10000 CPS.

6) Wide application range: Suitable for perovskite cells, lithium-ion batteries, and OLED applications, also suitable for quality control analysis, paints, coatings, inks, varnishes, and adhesives for their distribution characteristics.
Basic parameters

Base material thickness	1-3 mm
Solution viscosity	0.8-10000 cps
Film thickness (wet film)	5-3000 µm
Dispensing machine accuracy	5 µm
Adsorption effective size	230 × 150 mm
Heating plate size	260 × 170 mm
Dispensing speed	1-100 mm/s
Distance between scraper head and platform	0-3000 µm
Applicator	Coating width: 150 mm (maximum) (Swiss import) Resolution: 5 µm Material: Aluminum alloy
Heating platform	Platform maximum temperature: 150°C Temperature uniformity: ±2°C
Electricity usage	220V @ 50Hz, maximum 2.5KW, touchscreen control
Controller	PLC control system (Siemens)
Equipment dimensions (length × width × height)	620 × 370 × 350 mm (for reference)
Wind Blades	Automatic control: The air knife activates when the forward stroke starts, shuts off upon reaching the end point, and remains off during the return stroke.
Other	Display screen control, convenient operation, fan blade automatic control Included are a vacuum pump, a blower, free training on usage techniques, and adsorption membranes.
