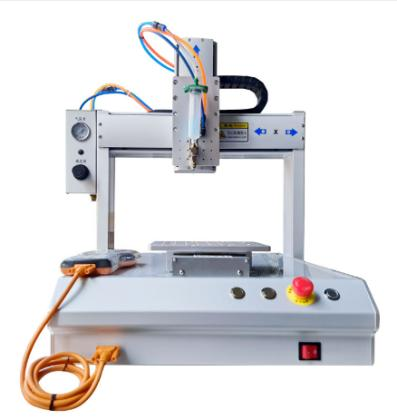

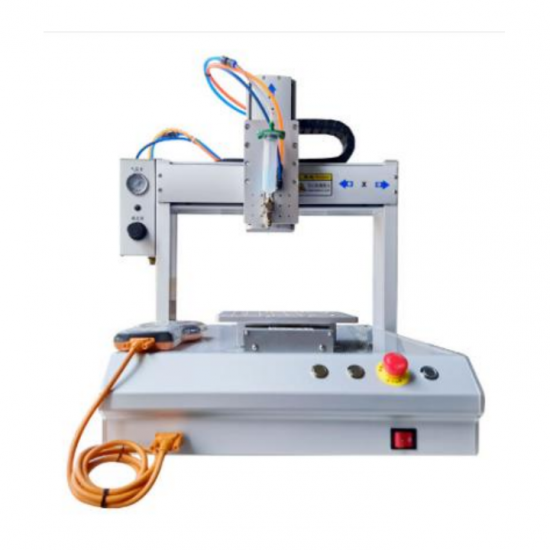

Auto Dispensing Machine for Production with Handheld Programming RS232 Interface and Multiple Motion Patterns

Product Introduction

The automatic dispensing machine is a specialized gluing equipment developed specifically for ultraviolet curing glue sealing frames in fields such as perovskite batteries, fuel cell stacks, and electronic components. Through immediate dispensing and bonding, it can effectively ensure the sealing of the batteries, thereby achieving the purpose of blocking the external environment and increasing the lifespan of the devices.

(Subject to the actual product.)

Main parameters of the equipment:

Model Name	KT-DJ331 Automatic Dispensing Machine
Travel Range X/Y/Z (mm)	300 / 300 / 100
Programming Method	Teach-in programming or graphic import
Supported Motion Paths	Point, line, arc, circle, curve, polyline, helix, ellipse
Maximum Load	Z-axis: 3 kg / Y-axis: 5 kg
Moving Speed (mm/sec)	0 – 300
Positioning Repeatability	± 0.02 mm
Dispensing Type	30 mL syringe-type
Control Method	Handheld teach pendant
Fluid Dispensing Repeatability	± 0.005 % (depending on fluid viscosity)
Program Storage Capacity	< 999 programs
Fixing Method	Z-axis and Y-axis with multifunctional plate
Motor Type	Leadshine drive / stepping motor
Transmission System	HIWIN linear dual guide rails + steel timing belt, 3-axis synchronous drive
Input Power	Universal voltage AC 110 V ~ 220 V
External Control Interface	RS-232

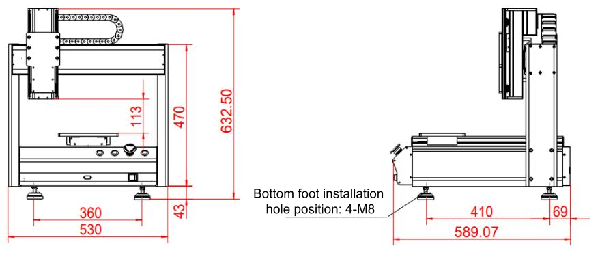

Overall Dimensions (L×W×H, mm)	600 × 620 × 650
Machine Weight (approx.)	~ 60 kg

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
