Two years limited warranty with lifetime technical supportUV‑Curable Dispensing Encapsulation Kit for Perovskite and OLED Lab Devices
A specially developed dispensing and packaging kit for perovskite battery devices and OLED devices in laboratories, including one dispensing machine, two UV-curable adhesives and one UV-curing lamp. The UV-curable adhesives do not react with the devices and the efficiency remains unchanged before and after packaging. The dispensing operation is simple and can be controlled manually or automatically, making it suitable for packaging small-sized devices in the laboratory, saving adhesive, and achieving the maximum curing size. At the same time, our company also provides large-scale automatic dispensing machines and belt-type continuous line curing equipment for customers to choose from. There are a wide variety of products available, providing not only equipment but also technical support.

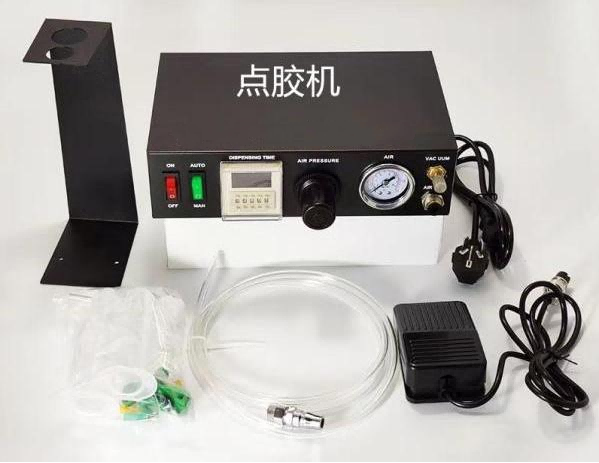

Dispenser

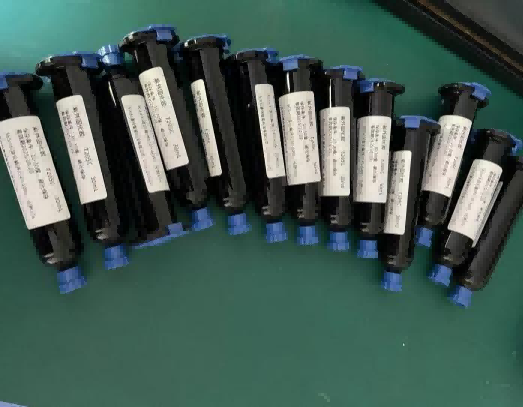

Ultraviolet curing adhesive

Ultraviolet curing lamp
Main technical parameters:
|
Parameter |
Value |
|
Wavelength |
365 nm |
|
Power Supply / Power |
AC 220 V / 70 W |
|

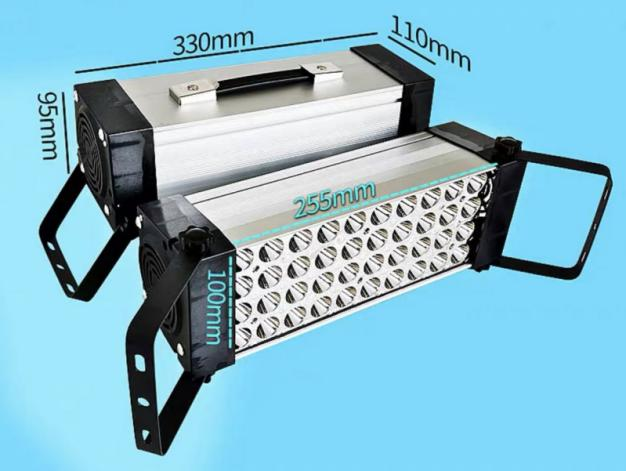

Curing Lamp Dimensions (L×W×H) |
330 × 110 × 100 mm |
|
Curing Adhesive Composition |
Acrylic-based system |
|
Curing Time |
5 – 10 seconds |
|
Adhesive Cartridge Capacity |
30 mL / 10 mL |
|
Maximum Dispensing Area / Size |
Within 10 cm |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
