Product Details

Fully-automated Vacuum Pulsing Thermal Evaporating Carbon Coating Coater for Materials Science



Introduction

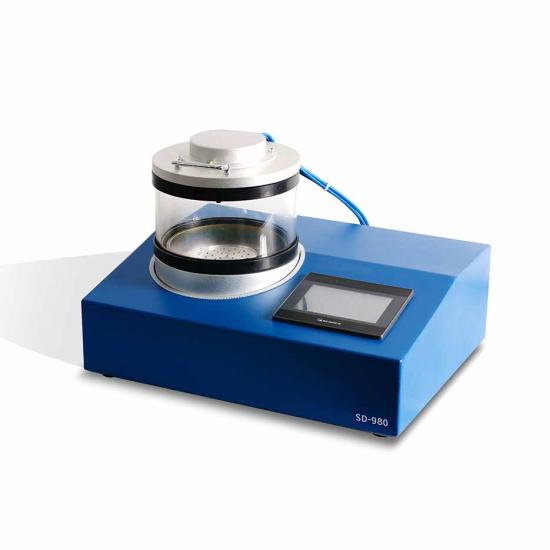

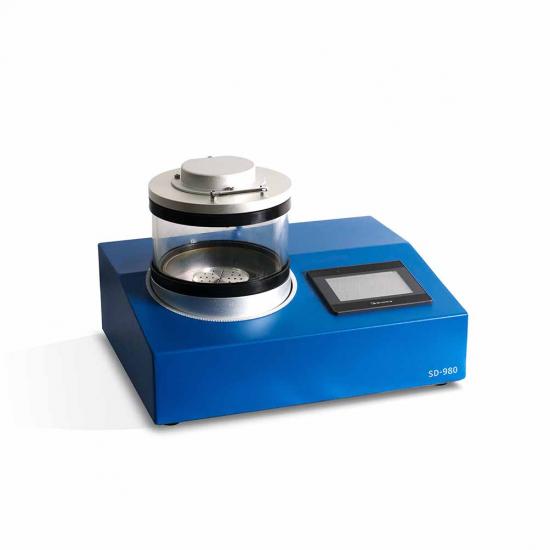

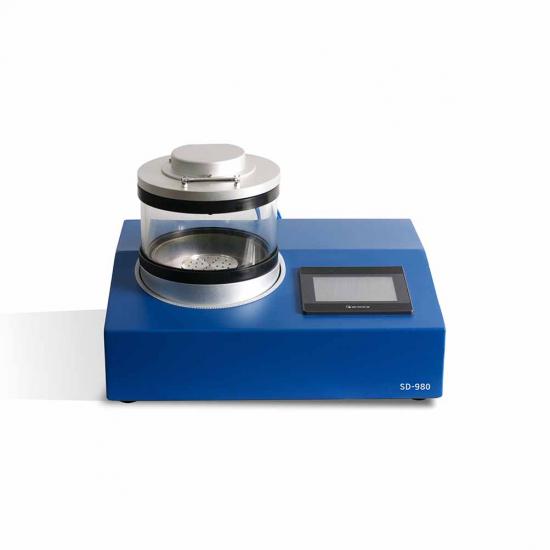

Automatic Pulsing Thermal Evaporation Carbon Coater (SD980 Model)  is ideal and designed for lab SEM sample preparation. SD980 Model carbon coater is a fully-automated carbon coater that applies a thin conductive carbon film on a sample surface. Applying this coating to a non-conductive sample is an effective preparation technique for diminishing charge-up electron artifacts for analysis in a SEM. A pulsed mode for protecting samples is also included.

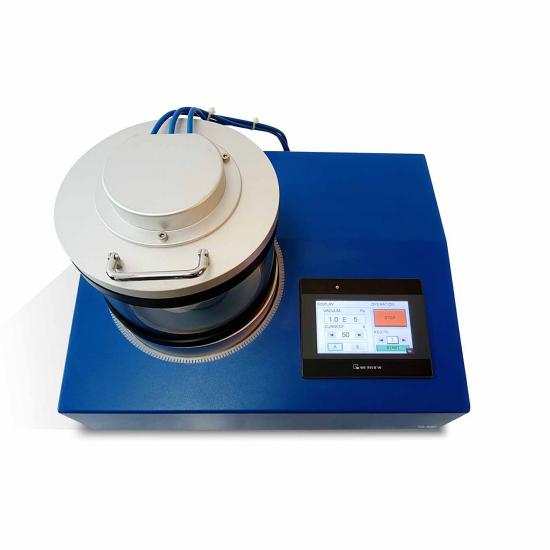

Working vacuum pressure can be achieved quickly when using proper vacuum pump. It is user friendly and easy to operate by Controlling Touch Screen Heating Power (Current) and Pulsing Times (Recipe).

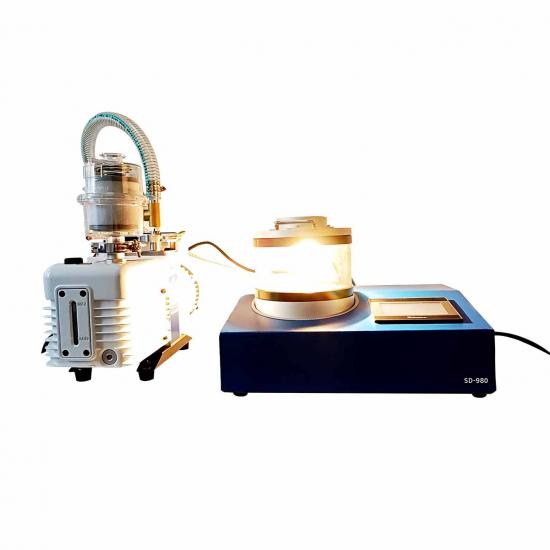

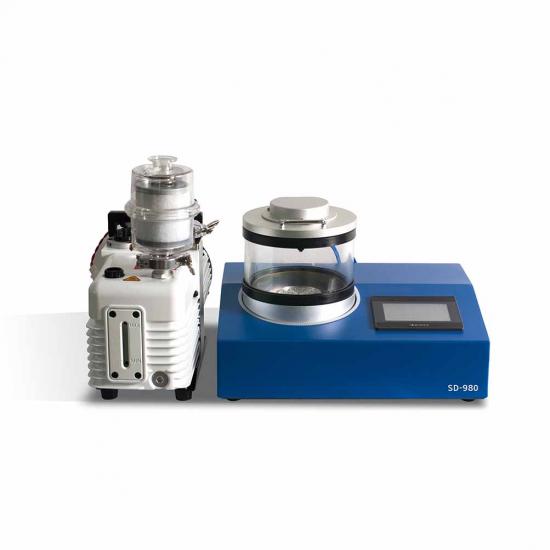

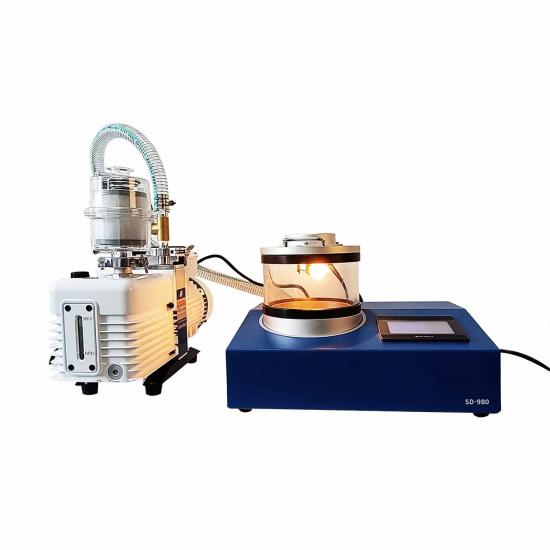

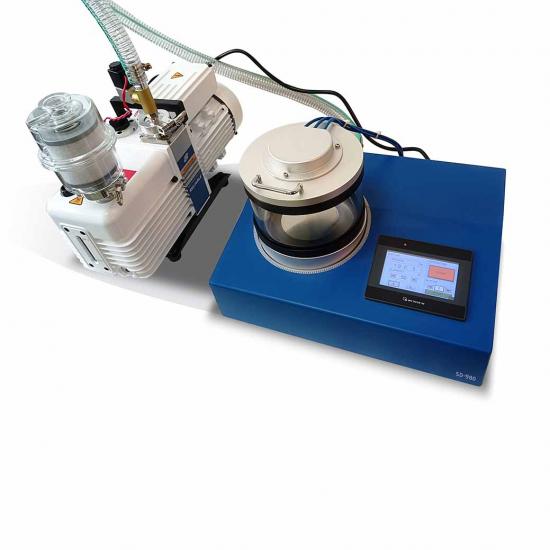

Vacuum pump is included.




Parameter

Vacuum pump set

(Oil required) rotary vacuum pump

Rotary pumping speed

50 Hz : 8 /h (2.2 L/s)/ 60 Hz : 9.6/h (2.6 L/s)

Vacuum limit

2 Pa

Max evaporation current

80A

Working pressure

6 Pa - 4 Pa

Vacuuming time

<5 Min(2 Pa)

Vacuum measure

Measuring range from atmosphere to 2*10-2mbar

Chamber size

Φ150*120mm (height) scratch resistant quartz glass

Evaporation target source

Target material :carbon rope/target source: carbon rope

Operation method

Instruction Manual

Weight/size

45kg/390mm length x 310mm wide x 290mm high

Power supply

AC 110V 60Hz or AC 220V 50Hz

Power consumption

<2000W

Warranty

One year limited warranty with lifetime product support



Vacuum Carbon Coater
Vacuum Carbon Coater
Vacuum Carbon Coater
Vacuum Carbon Coater
Vacuum Carbon Coater
Vacuum Carbon Coater
Vacuum Carbon Coater
Vacuum Carbon Coater
Vacuum Carbon Coater

Vacuum Carbon Coater
