Dental Zirconia Ceramic Dental Sintering Porcelain Furnace

Dental Zirconia Ceramic Dental Sintering Porcelain Furnace

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-M1700-DL
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Min order:

    2
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

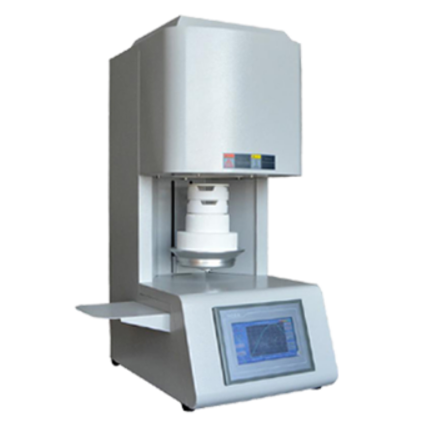

Dental Zirconia Ceramic Dental Sintering Porcelain Furnace



Our zirconia sintering furnace is mainly used for crystallization and sintering of zirconia crowns in denture processing factory.It adopts 1800 type dental pure MoSi2 heating elements to avoid secondary pollution of zirconia crowns;We manufacture traditional muffle furnace and new type bottom loading zirconia sintering furnace. Bottom loading zirconia sintering furnace adopts circular furnace chamber with six-side heating for more uniform temperature comparing with traditional type,better permeability and consistency of firing crowns.The auto lift mode makes loading material easy and taking convenient.It is the ideal equipment for denture processing factory.



Advantages

1. Heating elements are high purity and the camera is fiber, avoiding contamination.

2.The design of the heating chamber is circular, with six heating elements to heat evenly.

3.The operating system of the touch screen is easy to operate.

4.Automatic platform is easy to take sintering product.

5.The heating curve shows the temperature in real time, and the temperature of the camera can be corrected.

6.Good appearance.



Technical Parameter

Model

KJ-M1700

Chamber size

φ120×100mm

Max. temperature

1700℃

Working temperature

1600℃

Controller

Touch screen

Temperature accuracy

±1℃

Heating element

MoSi2

Chamber material

Ceramic fiber

Max. Power

1800w

Power supply

AC110/220/440V/ 50/60HZ

Dimensions

530×530×820mm

Gross Weight

75 KG


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
