Item No.:
TMAX-PC-3Payment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
15 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:
One year limited warranty with lifetime technical supportMini Two-column 3T Manual Powder Press with Digital Pointer Pressure Gauge

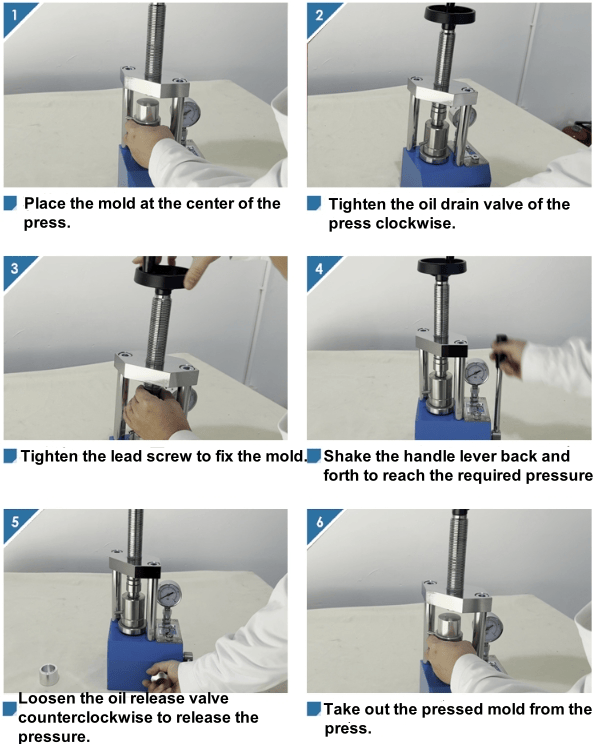

Operation steps
Technical parameters
|
Instrument model |
PC-3 |
|
Pressure range |
0-3T |
|
Piston diameter |
φ50mm(d) |
|
Overall structure |
The equipment has no sealed connection, reducing oil leakage points |
|
Pressure gauge |
Dual-scale display of pressure and intensity |
|
Maximum piston stroke |
30mm(T) |
|
Pressure stability |
≤1 MPa/10min |
|
Workbench diameter |
Φ80mm (D) |
|
The number of columns |
Two columns |
|
Column spacing |
90×125 (M×N) |
|
Product size/weight |
210×150×360 mm(L×W×H) /20kg |
|
Packaging size/weight |
405×330×550 mm (L×W×H)) /29kg |
|
Schematic diagram of powder press dimensions |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
