Dental Laboratory Clinic Vacuum Porcelain Furnace

Dental Laboratory Clinic Vacuum Porcelain Furnace

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-V1200-DK
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Min order:

    2
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

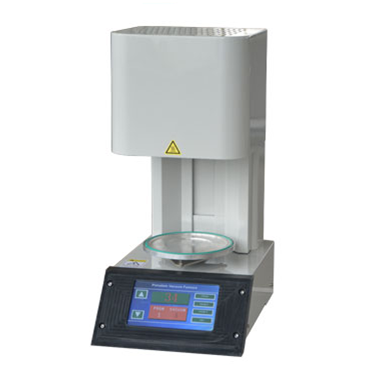

Dental Laboratory Clinic Vacuum Porcelain Furnace


This vacuum porcelain oven is mainly used for the processing of dental porcelain powder. The furnace is heated on four sides. Compared with the traditional muffle furnace and crystallization furnace, the temperature field is more uniform, and the fired crown has better permeability and consistency. The porcelain oven is the most ideal equipment for denture processing factory.


Characteristic:

1. Automatic temperature adjustment function, small actual temperature error.

2. Polycrystalline alumina fiber is used in the furnace, with high temperature resistance and long service life.

3. The heating adopts quartz spiral heater, and the working cavity is pure and pollution-free

4. True color touch screen, 99 custom programs and built-in programs, easy to operate.


Parameters:

Chamber size

Ø90x100mm

Max. temperature

1200℃

Working temperature

1100℃

Heating rate

200 deg.C/Min

Control accuracy

+/- 1℃

Vacuum degree

-98Kpa (With a no-oil vacuum pump)

Thermocouple

K-type

Control system

Touch screen interface

Programmable and PID automatic control

Heating element

Coils with spiral quartz

Lining material

Alumina ceramic fiber

Max. power

1.5KW

Working power

AC110/220/440V 50/60HZ

Dimensions

400x260x610mm

Net weight

21Kg


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
