1100C Integrated Debinding and Pre Sintering Furnace for Ceramic Powder Manufacturing

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-FXL(T)-60/11
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

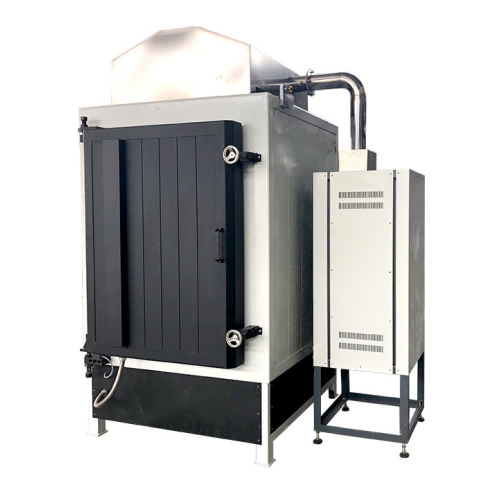

1100C Integrated Debinding and Pre Sintering Furnace for Ceramic Powder Manufacturing

Introduction

This furnace is primarily designed for the integrated debinding and pre-sintering processes of fine ceramic components made from aluminum nitride (AlN), silicon nitride (Si₃N₄), alumina (Al₂O₃), zirconia (ZrO₂), and dielectric ceramics. It is also suitable for the binder removal, pre-sintering, and sintering processes of ceramic powders, magnetic materials, LTCC, MLCC, NTC, NFC, ceramic cores, and other electronic components.

The furnace adopts a unique thermal field control method, which achieves excellent temperature uniformity during both low-temperature debinding and high-temperature pre-sintering, ensuring the precise thermal environment required for both process stages.

Specification

Model 1100 Debinding & Pre-Sintering Integrated Furnace

Equipment Model	Max. Temperature	Chamber Size (W×H×D)	Heating Method	Thermocouple	Voltage	Power
FXL(T)-60/11	1100℃	280×400×400 mm	Five-sided heating	Type K	380V	17 kW
FXL(T)-125/11	1100℃	380×500×500 mm	Five-sided heating	Type K	380V	25 kW
FXL(T)-300/11	1100℃	440×780×700 mm	Five-sided heating	Type K	380V	45 kW
FXL(T)-700/11	1100℃	700×1100×820 mm	Five-sided heating	Type K	380V	63 kW
