Item No.:
TMAX-800KPayment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
5 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:

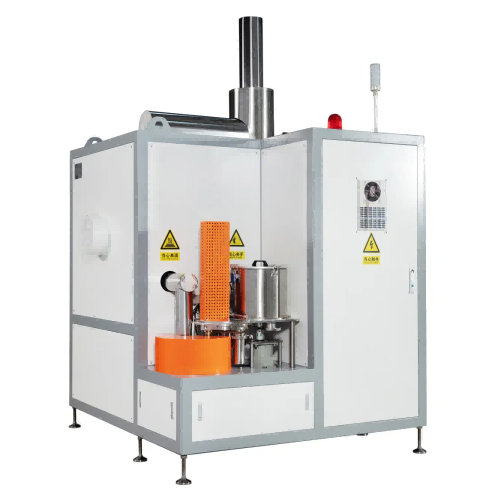

Two years limited warranty with lifetime technical supportEnergy-saving Vertical 400L Oxalic Acid Catalytic Debinding Furnace
Introduction
Catalytic debinding for conventional active metal materials that are easy to be oxidized, which is more energy-saving, safer operation environmental-friendly, and the exhaust gas can be directly discharged.
Specification
Model No: 800K
Working temperature: 110-140°C
Dimension: L2046xW1769xH2718 mm
Available working size: L414xW454xH1006 mm
Chamber dimension: φ700x1202mm
Standard cycle ti: 4-6 h
Oxalic acid consumptio: 150-300 g/h
Acid feeding mode: Continuous controlled acid feeding
Nitrogen consumption: 3.5-4.5 m3/h
Total weight: 2000 kg
Feeding mode: By transfer cart
Combustion mode: Electrothermal combustion
Exhaust gas: CO2and H2O(Non-pollution)
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
