18500RPM Desktop High-Speed Centrifuge Option of 9 Types of Rotors

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-DH-18
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

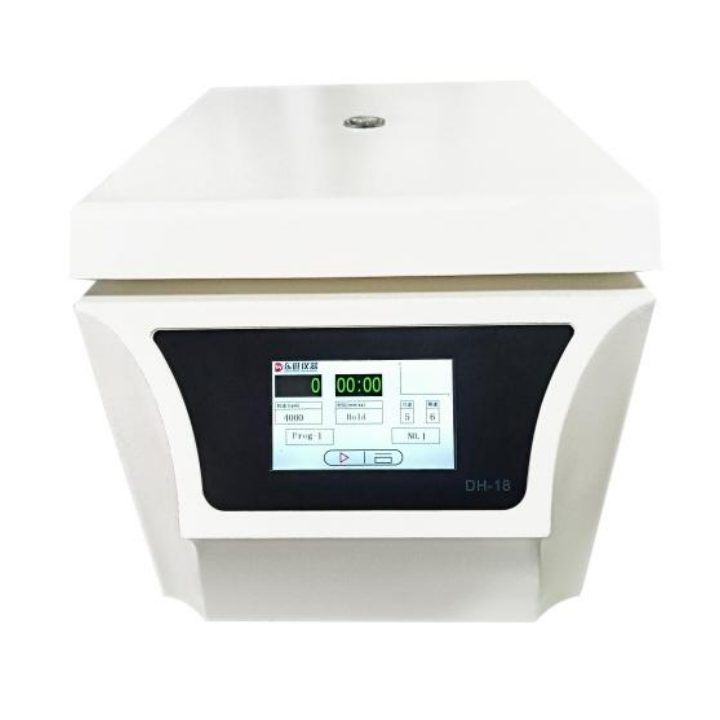

18500RPM Desktop High-Speed Centrifuge Option of 9 Types of Rotors

High Speed Centrifuge

It is widely applied in fields such as agriculture, medicine, food hygiene, biopharmaceuticals, bioengineering, cell biology and biochemistry, and is suitable for the separation and purification of microbial cells, cell proteins, molds and immunity.

Instrument features

1. 5-inch high-definition touch screen, easy to operate, clear display

2. Automatically recognizes 9 different rotors, eliminating potential safety hazards caused by user errors

3. 9 speed increase levels and 10 speed decrease levels, effectively preventing secondary suspension and achieving excellent centrifugal effect

4. Can store 15 sets of programs, ready for user access

5. AC variable-frequency motor, with high speed control accuracy

6. Equipped with various protections such as overspeed, door protection, and imbalance protection, ensuring safety for both personnel and equipment

7. Free switching of speed and centrifugal force

8. Special air duct to ensure the rotor operates at normal temperature

9. Sealed rotor, effectively preventing aerosols

Techenical parameter

Model number	DH-18
Maximum rotational speed	18500r/min
Maximum relative centrifugal force	23800×g
Maximum capacity Maximum capacity	4×100mL
Motor	AC variable-frequency motor
Rotational speed accuracy	±30r/min
Timing range	Periodic centrifugation: 1 min to 99 min 59 sec Continuous centrifugation: Hold
Power supply	AC220±22V 50/60Hz 10A
Overall machine noise	< 60dB(A)
Dimensions (L × D × H)	350×495×350(mm)
Net weight	35kg

Rotor

Number	Max speed rmp/m	Max RCF(xg)	Rotor Type	Capacity	Dimension of Tube (mm)
NO.1	18500rmp/m	23800×g	Angle Rotor	12×1.5/2ml	Φ10x42
NO.2	15000rmp/m	21380×g		24×1.5/2ml	Φ10x42
NO.3	14000r/min	22350×g		48×0.5ml	Φ8x32
NO.4	13000r/min	18040×g		8×15ml	Φ17x121
NO.5	13500r/min	12830×g		12×5ml	Φ13x53
NO.6	12500r/min	16060×g		12x10ml	Φ16x83
NO.7	12000r/min	15130×g		6×50ml (Pointed/ Round)	Φ29x120
NO.8	11000r/min	12850×g		4×100ml	Φ37.9x119
NO.9	4000r/min	2000×g	Microplate Rotor	2x2x48holes	Microplate
