Lab Table-top Large Capacity Refrigerated Centrifuge

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-L535R
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

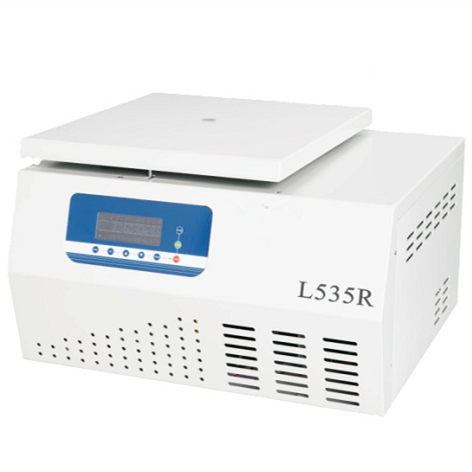

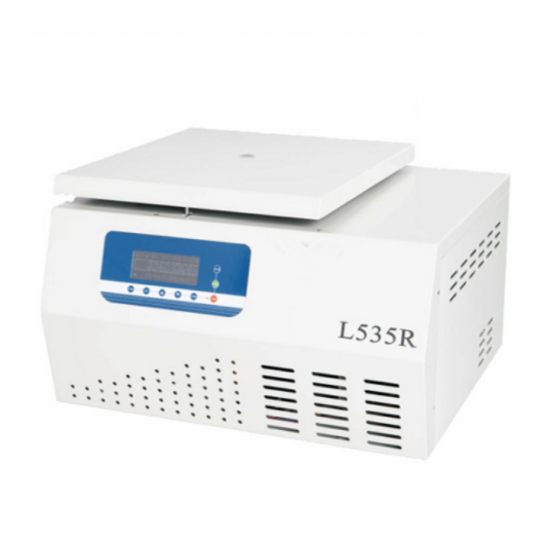

Lab Table-top Large Capacity Refrigerated Centrifuge

TMAX-L535R multifunctional large-capacity refrigerated centrifuge has a variety of rotors, and can be equipped with a variety of hanging cups and adapters. It is suitable for molecular biology, cell culture and other industries; it adopts imported environmentally friendly compressors. The maximum speed can be kept below -4 ℃ , the cooling effect is good.

1. Imported environmentally friendly compressor units are used, with good cooling effect and no environmental pollution.

2. Microcomputer control, AC variable frequency motor drive, large torque, no toner pollution, maintenance-free.

3. Automatically calculate and set the centrifugal force RCF value.

4. Equipped with a variety of pipe racks, pipe racks and adapters, one machine can be used for multiple purposes.

5. Programmable operation, can store multiple routine programs.

6. 9 kinds of acceleration and deceleration curves, 10 kinds of deceleration curves, two-stage damping and shock absorption, preventing secondary turbidity of the sample, and good centrifugal effect.

7. Equipped with various protection measures such as over-temperature, over-speed, door cover protection, unbalance, etc.; to ensure personal and machine safety.

Technical Parameters

Model	TMAX-L535R
Order No.	02041430000
Max. Speed	5350rpm
Max. RCF	5030xg
Max. Capacity	4x750ml
Speed Accuracy	±10rpm
Time Range	1min-99min
Temp.Range	-20℃--40℃
Temp.Control Accuracy	±1℃
Compressor set	Environs-friendly Refrigerant(R404a)
Noise	<65dB(A)
Power Supply	Ac220±22V 50/60Hz 10A
Power Consumption	1.6kw
Dimensions (W x D x H)	710x630x440(mm)
Package Size (W x D x H)	860x810x620(mm)
Net Weight	75kg

L535R ROTOR

NO.	ITEM	MAX. RPM （r/min）	MAX.RCF (×g)	CAPACITY
No.1	Angle Rotor	5350	5030	6×50ml
No.2	Horizontal transposon	4000	3040	4×500ml
	Enzyme plate hanger rotor	4000	3040	4×2×96 holes
	Square hanging basket rotor	4000	3040	Four hanging basket
	Horizontal round cup rotor	4000	3040	4×500ml
	Horizontal round cup rotor（air tight）	4000	3040	4×500ml
	Hang cup rotor horizontally	4000	3040	4×24×5ml （blood collection tube）
	Hang cup rotor horizontally	4000	3040	4×37×7ml
No.3	Enzyme plate rotor	4000	2200	2×2×96 holes
No.4	Horizontal transposon	4000	3500	4×750ml
No.4	Horizontal round cup rotor	4000	3500	4×750ml
No.5	Horizontal transposon	4200	3500	6×250ml
	Horizontal round cup rotor	4200	3500	6×250ml
	Horizontal gas seal rotor	4200	3500	6×250ml
	horizontal rotor	4200	3500	6×250ml（sharp bottomed）
No.6	Horizontal transposon	4200	3500	4×250ml
	Horizontal round cup rotor	4200	3500	4×250ml
	Horizontal gas seal rotor	4200	3500	4×250ml
	Horizontal square cup rotor	4200	3500	4×250ml
