Lab Tabletop High-speed Programmable Refrigerated Centrifuge

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-TGL-16
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

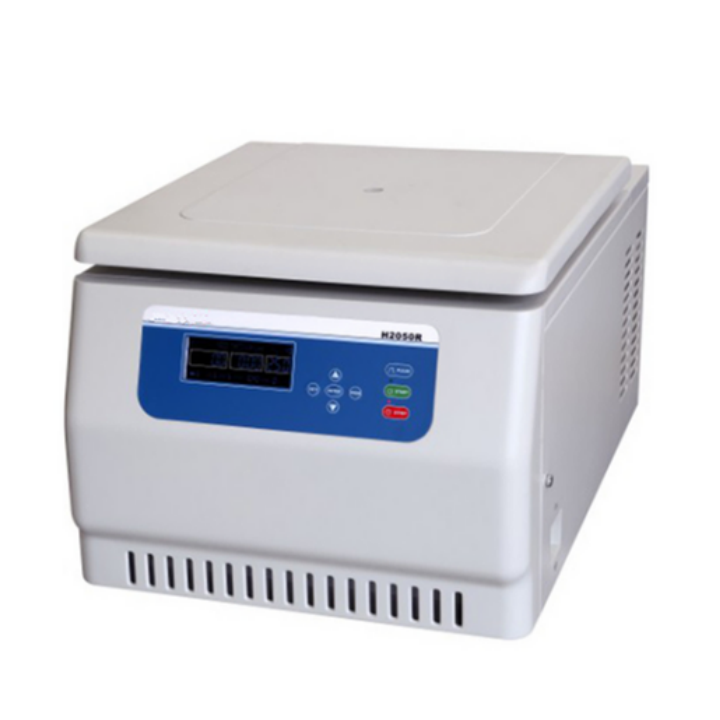

Lab Tabletop High-speed Programmable Refrigerated Centrifuge

TMAX-TGL-16 desktop high-speed refrigerated centrifuge is a cost-effective centrifuge designed and manufactured by Xiangyi for molecular biology, molecular chemistry and PCR. It adopts high-performance brushless DC motor, low noise, and the noise of the whole machine is less than 57dB(A ), environmentally friendly compressor. The temperature can be kept below -4°C at the maximum speed; 15 sets of program storage space, the user can freely program.

1. Microcomputer control, large-screen LCD pen-end liquid crystal, brushless motor.

2. With electronic door lock to improve operational safety

3. With RCF key, centrifugal force can be observed at any time.

4. Equipped with a fault self-diagnosis system, which can automatically detect various faults such as overspeed, overtemperature, unbalance, and door cover self-locking, and display the fault information in the display window; improve the safety performance of the instrument.

SPECIFICATION

Model	TMAX-TGL-16
Max. RPM	16000r/min
Max. RCF	21532×g
Capacity	12×5ml
Speed Accuracy	±30/min
Timing range	1min～99min
Temp setting range	-20℃～+40℃
Temp Accuracy	±1℃
Compressor unit	Imported high performance compressor environmental protection refrigerant R134a
Noice	≤57dB
Power supply	AC220V±22V 50Hz 10A
Power	700W
Overall dimension	350×630×300mm(L×W×H)
Package size	460×820×480mm(L×W×H)
Weight	65kg

TMAX-TGL-16 ROTOR

No.	ITEM	Max. RPM （r/min）	Max. RCF (×g)	CAPACITY
No.1	Angle Rotor	16000	17800	12×1.5/2.2ml
No.2	Angle Rotor	12000	10142	12×5ml
No.3	Angle Rotor	15000	21532	24×1.5ml/2.2ml
No.4	Angle Rotor	10000	9178	36×1.5ml/2.2ml
No.5	Angle Rotor	11000	13700	48×0.5ml
No.6	Angle Rotor	15000	13800	3×8×0.2mlPCR
No.7	Angle Rotor	16000	15300	18×0.5ml
