Tabletop Low-speed Refrigerated Centrifuge Used in Genetic Biology & Clinical Medicine & Cytology

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-L530R
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Tabletop Low-speed Refrigerated Centrifuge Used in Genetic Biology & Clinical Medicine & Cytology

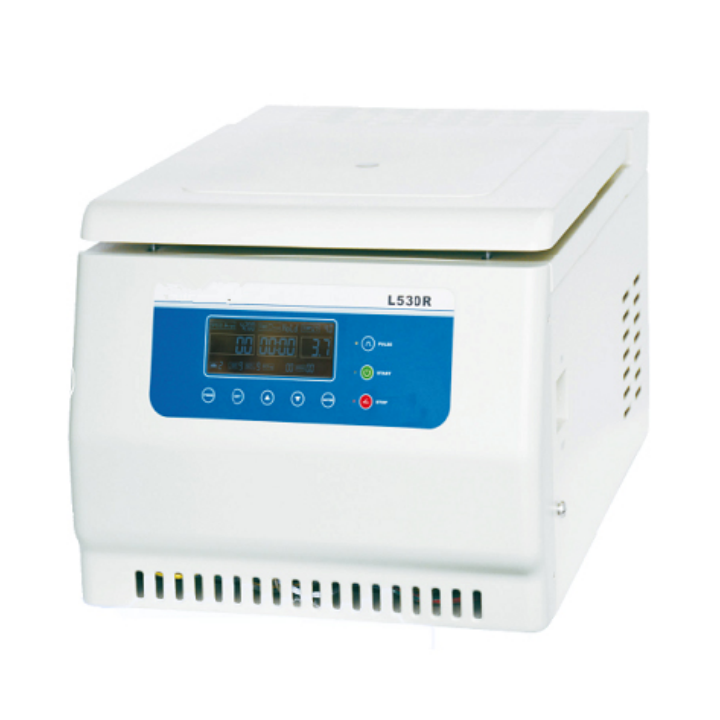

TMAX-L530R low-speed refrigerated centrifuge is used in genetic biology, cytology and other fields. A variety of rotors, tube racks and adapters are available for users to choose. Its appearance is simple, beautiful, stainless steel inner cavity, multiple protection, safe and reliable.

1. Adopt environmentally friendly compressor unit, with good cooling effect and no environmental pollution.

2. Microcomputer control, DC variable frequency motor drive, large torque, no toner pollution, maintenance-free.

3. Automatically calculate and set the centrifugal force RCF value.

4. Equipped with a variety of pipe racks, hangers and adapters, one machine can be used for multiple purposes.

5. Programmable operation, can store multiple routine programs.

6. 9 kinds of acceleration curves, 10 kinds of deceleration curves, two-stage damping and shock absorption, to prevent secondary turbidity of the sample, and the centrifugal effect is good.

7. Equipped with rotor identification, door cover protection, unbalance protection and other protection measures to ensure personal and machine safety.

Technical Parameters

Model	TMAX-L530R	Temp accuracy	±1℃
Order No.	0204141000	Compressor set	Environment-friendly with (R134a)refrigerant
Max. speed	5300rpm	Noise	<65dB(A)
Max. RCF	5010xg	Power supply	AC220V±22V 50/60Hz 10A
Max. capacity	4x250ml	Power consumption	1200W
Speed accuracy	±30rpm	Dimensions (W x D x H)	470x730x380mm
Time Range	1min to 99min	Package size (W x D x H)	547x960x422mm
Temp Range	-20℃~40℃	Net weight	70kg

L530R ROTOR

ROTOR	ITEM	MAX. RPM（r/min）	MAX. RCF (×g)	MAX. CAPACITY
No.1	horizontal transposon	5300	5010	4×100ml
	bracket	5300	5010	4×100ml
	adapter	5300	5010	4×50ml
				4×50ml(sharp-bottomed)
				4×30ml
				4×20ml
				4×15ml
				4×15ml(sharp-bottomed)
				4×3×5mlblood collection tube
				4×2×10ml
				4×4×Deposited tube
				4×3×1.5ml
No.2	horizontal transposon	4500	3560	4×2×50ml
	bracket	4500	3560	4×2×50ml
	bracket	4500	3560	4×2×100ml
	bracket	4500	3560	4×8×15ml （10ml/5mladapter）
	cradle	4500	3560	64×7ml/5ml
	cradle	4500	3560	48×7ml/5ml
No.3	Enzyme plate transposon	4000	2200	2×2×96孔
No.3	Enzyme plate hanger	4000	2200	2×2×96孔
No.4	horizontal transposon	4500	4080	4×250ml
	Round horizontal cup (airtight)	4500	4080	4×250ml（flat bottom）
	Horizontal round cup rotor	4500	4080	4×250ml（flat bottom）
	adapter	4500	4080	4×50ml
				4×100ml
				4×10×5ml
				4×7×10ml
				4×4×20ml
				4×6×15ml
				4×4×15ml(sharp-bottomed)
				4×50ml
				4×50ml(sharp-bottomed)
				4×8×1.5ml
	Horizontal square cup rotor	4500	4080	4×250ml
	adapter	4500	4080	4×250ml（flat bottom）
	adapter	4500	4080	4×4×50ml（sharp-bottomed）
	adapter	4500	4080	4×7×15ml（sharp-bottomed）
	adapter	4500	4080	4×9×10ml
