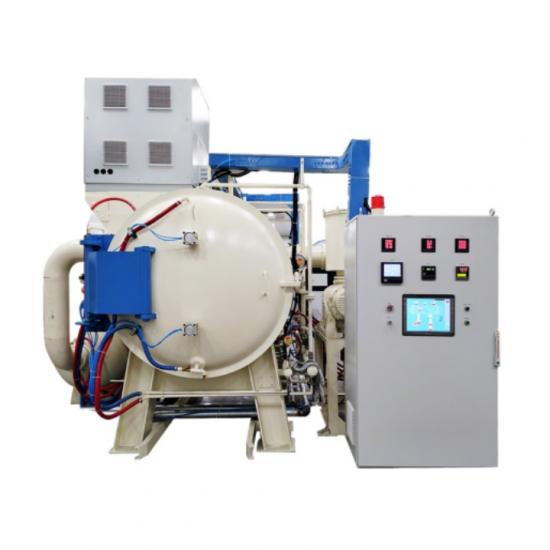

1600C Metal Injection Molding Vacuum Furnace 40L for Ceramic Applications

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-ZSJ
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

1600C Metal Injection Molding Vacuum Furnace 40L for Ceramic Applications

Product Overview

Mainly suitable for vacuum sintering of cemented carbide, ceramic materials, powder injection molding products, magnetic materials, porous materials, etc.Vertical bottom-loading structure is available as an option.Also widely used for vacuum sintering of cemented carbide, ceramic materials, powder injection molding, magnetic materials, porous materials and general powder metallurgy products.

Product Features

Heating elements: high-purity graphite or molybdenum
Insulation material: rigid graphite felt, or composite metal shield insulation structure of molybdenum + stainless steel
Cooling medium: high-purity nitrogen or high-purity argon
Compact structure, high degree of automation, environmentally friendly and energy-saving
Safe and stable operation; the system supports fault self-diagnosis, audible and visual alarms, as well as corresponding interlock protection functions
Optional configurations: dewaxing system available, or customized effective zone dimensions as specified by customers

Specification

Model	Effective Zone (mm)	Loading Capacity (kg)	Temperature Uniformity (°C)	Pressure Rise Rate (Pa/h)	Max. Temperature (°C)	Heating Power (kW)	Ultimate Vacuum Degree (Pa)	Gas Quenching Pressure (bar)
ZSJ-80	450×300×300	100	±5	0.5	1600	80	5×10⁻³ or 4×10⁻¹	2
ZSJ-120	600×400×400	200	±5	0.5	1600	120	5×10⁻³ or 4×10⁻¹	2
ZSJ-150	700×500×500	300	±5	0.5	1600	150	5×10⁻³ or 4×10⁻¹	2
ZSJ-220	900×600×600	500	±5	0.5	1600	220	5×10⁻³ or 4×10⁻¹	2
ZSJ-300	1200×600×600	800	±5	0.5	1320	200	5×10⁻³ or 4×10⁻¹	2
