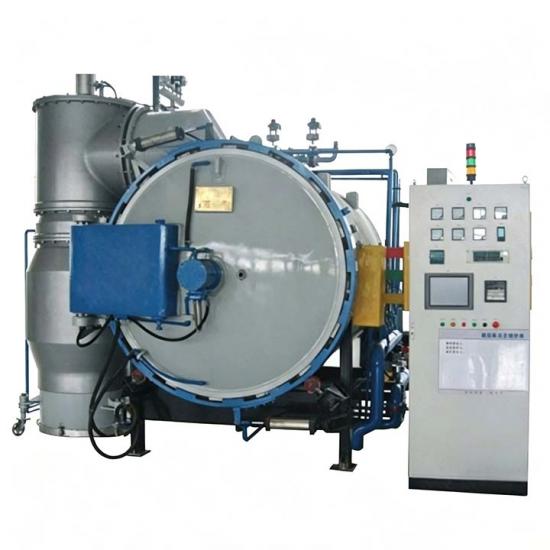

2400C Automated High Vacuum Sintering Oven for Tungsten Alloy Powder Processing

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-HVS-020203
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

2400C Automated High Vacuum Sintering Oven for Tungsten Alloy Powder Processing

Product Description

The high vacuum sintering furnace is mainly used for the sintering of metal matrix powder metallurgy products, as well as for processes such as titanium powder hydrogenation and dehydrogenation.

Application Scope

Tungsten alloys, magnetic materials, high-density alloys, molybdenum alloys, titanium alloys, tantalum-niobium alloys, high-temperature alloys, etc.

Technical Features

Adopts a special furnace chamber structure and heater arrangement to ensure excellent temperature uniformity.
Equipped with functions including flexible vacuum pumping, vacuum sintering, micro positive pressure sintering, and partial pressure sintering.
Utilizes advanced thermal insulation structure and materials, offering superior thermal insulation performance and low heat storage, achieving over 20% energy savings compared with traditional designs.
Features special high-temperature infrared measurement technology for precise temperature control with minimal error.
Compatible with process atmospheres: N₂ / Ar / H₂.

Specification

Parameters / Model	HVS-020203	HVS-040412	HVS-060612	HVS-080812	VVS-0608	VVS-0812
Working Zone Size W×H×L (mm)	200×200×300	400×400×1200	600×600×1200	800×800×1200	φ600×800	φ800×1200
Max. Temperature (°C)	2400	2400	2400	2400	2400	2400
Temperature Uniformity (°C)	±3~±7.5	±3~±7.5	±3~±7.5	±3~±7.5	±3~±7.5	±3~±7.5
Ultimate Vacuum Degree (Pa)	2×10-4	2×10-4	2×10-4	2×10-4	2×10-4	2×10-4
Pressure Rise Rate (Pa/h)	0.67	0.67	0.67	0.67	0.67	0.67

Note: The above parameters can be adjusted according to process requirements and shall not be regarded as acceptance criteria. The final specifications shall be subject to the technical proposal and agreement.

Configuration Options

Door locking mode: manual / automatic

Furnace shell material: full carbon steel / inner stainless steel layer / full stainless steel

Thermal insulation material: carbon felt / graphite felt / carbon fiber rigid felt / metal

Heater material: metal / graphite

Thermocouple: Type C (tungsten sleeve / molybdenum sleeve / ceramic sleeve)

Infrared pyrometer: single-color / two-color
