Main parameter

PN: SX2-XY-14TP

Max.design Temp: 1400C

Working temperature:0-1300C

Chamber size:D300*W300*H300mm

Power:16kw

Voltage: 380V 2 phase

Heating rate:0~15  Degree/Min

Heating element: Sic heater

Thermocouple：S type

Temperature accuracy: ±1℃

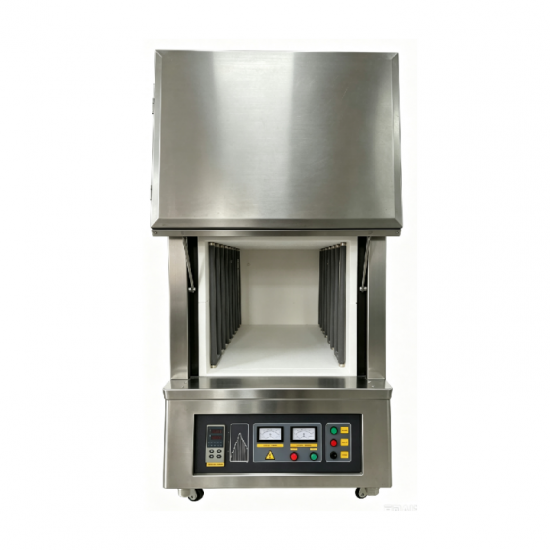

Vertically opening door

Extra design

A vent is on top of the furnace

Furnace Chamber material

Adopt the advanced light alumina ceramic fiber, with excellent thermal insulation effect, light weight, high temperature resistance, The energy saving effect is 60-80% of the old electric furnace.

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell material is stainless steel materials, adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (ultra-high temperature protection, coupling protection, overcurrent protection) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Certificates:

CE, ISO

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

Spare Heating element

2pcs

Crucible clip

1 pc

User manual

1 book

Door block

1 pc
