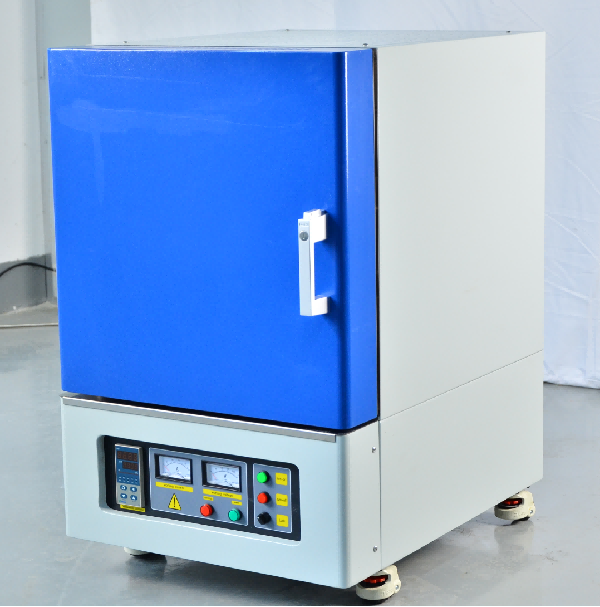

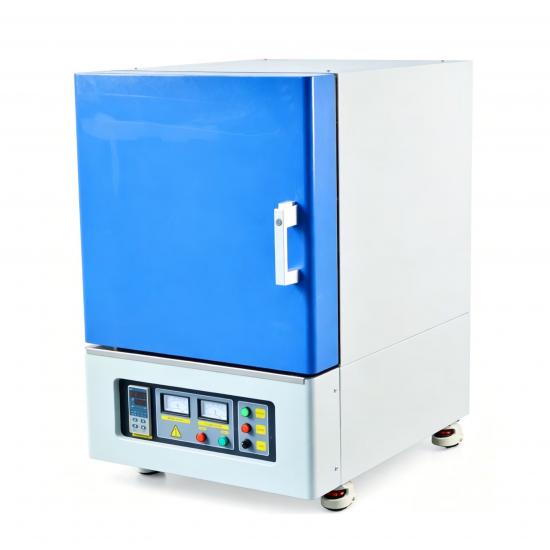

Main parameter

PN: SX2-XY-12TP

Max.Temp: 1200C

Working temperature:0-1100C

Chamber size:D300*W200*H200mm(12L)

Power:7kw(Subject to design)

voltage: 220V single phase

Heating rate:0~20  Degree/Min

Heating element: Resistance wire(Hidden type,left, right, top, and bottom 4 side heating)

Thermocouple：K type

Temperature accuracy: ±1℃

With Automatic power cut-off and audible/visual alarm upon over-temperature

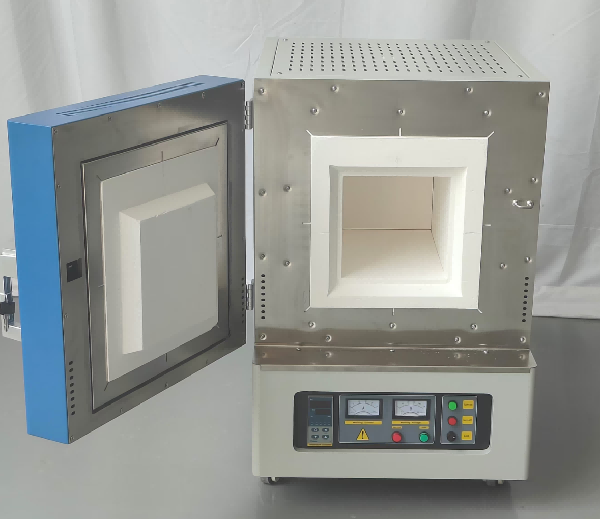

Furnace Chamber material

Adopt the advanced light alumina ceramic fiber, with excellent thermal insulation effect, light weight, high temperature resistance, n. The energy saving effect is 60-80% of the old electric furnace.

Heating from all four sides: left, right, top, and bottom.

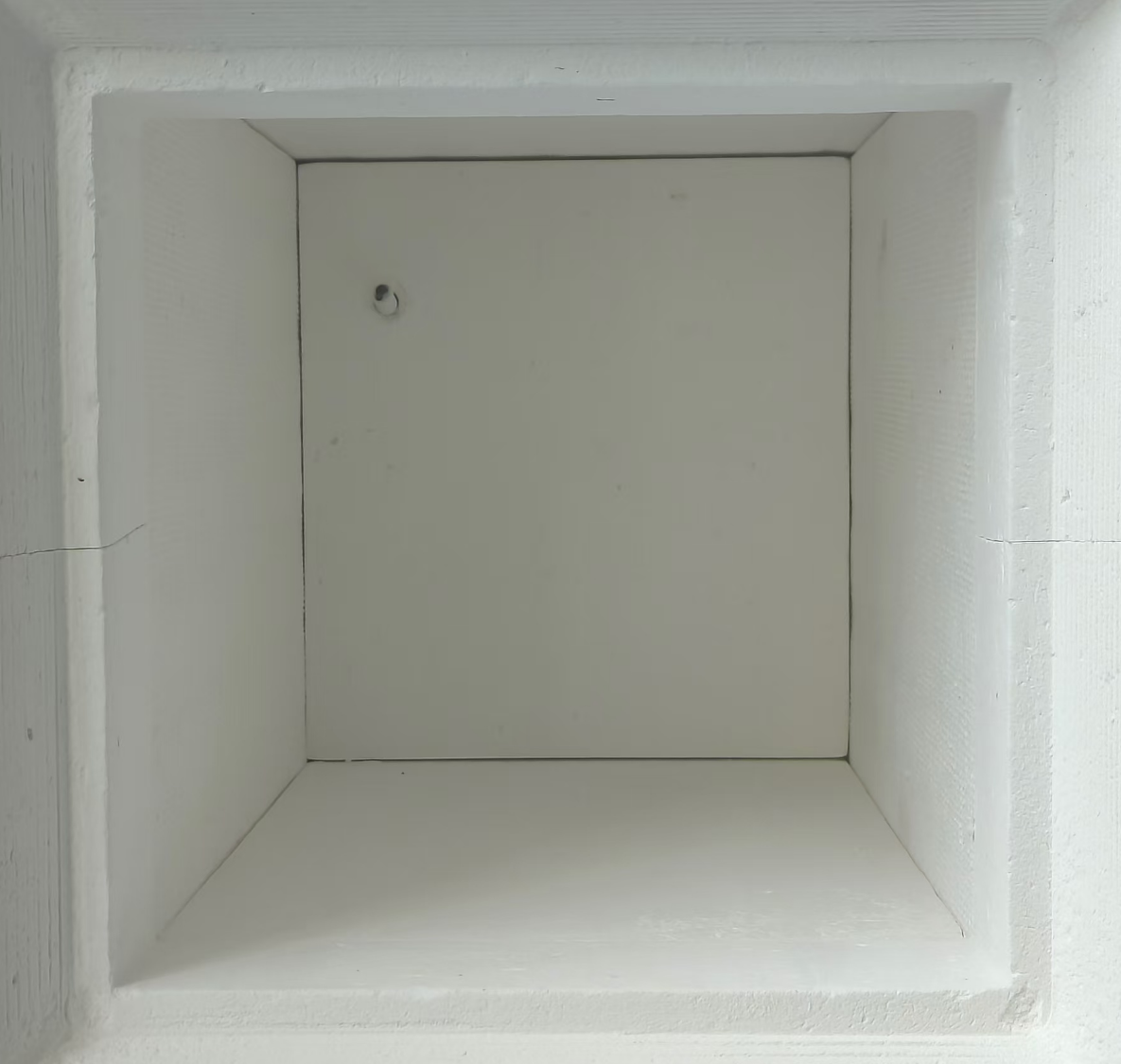

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell matrial is carbon materials,adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

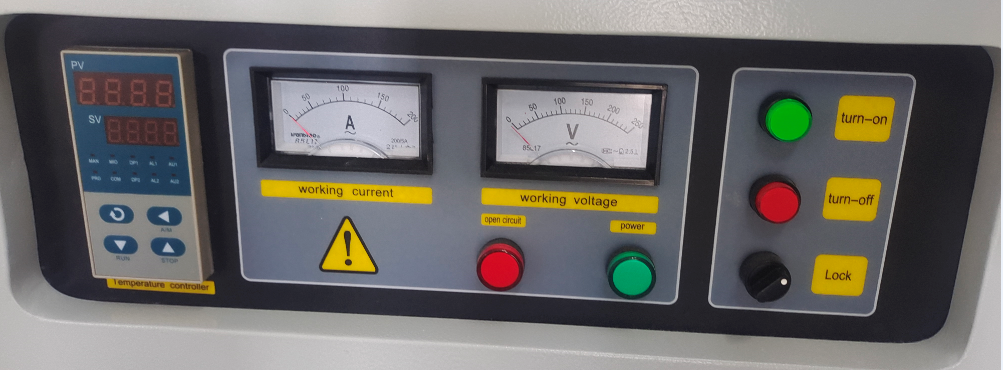

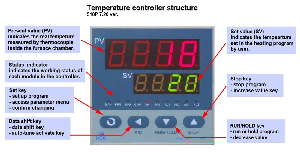

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (ultra-high temperature protection, coupling protection, and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

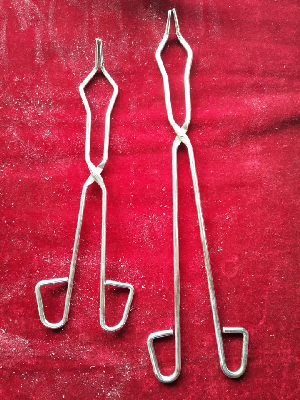

Crucible clip

1 pc

Door block

1 pc

User manual

1 book
