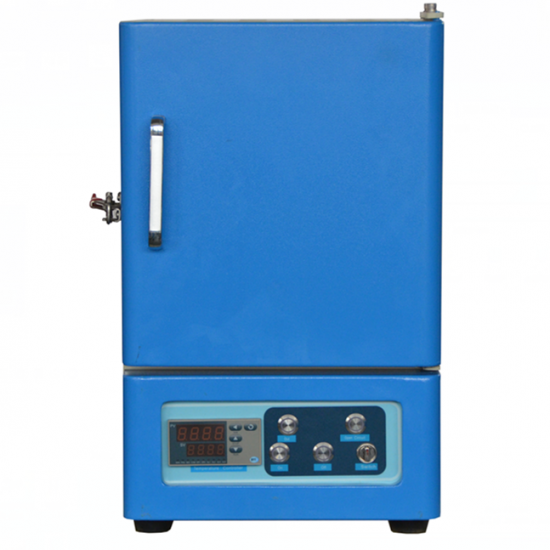

Lab Mini 1050C Box-type Muffle Furnace with Chamber Size 100*100*100mm

Lab Mini 1050C Box-type Muffle Furnace with Chamber Size 100*100*100mm

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164

  • Item No.:

    TMAX-1050muffle
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

Lab Mini 1050C Box-type Muffle Furnace with Chamber Size 100*100*100mm




This box furnace uses a resistance wire as a heating element, a double-shell structure and a Xiamen Yudian 30-stage program temperature control system. The furnace is made of alumina polycrystalline fiber material, and the double-layer furnace shell is equipped with an air-cooling system. Rapid temperature rise and fall, can reach 1000 degrees in 30 minutes, and has the functions of over temperature, broken couple, over current protection, etc. The furnace has the advantages of temperature field balance, low surface temperature, fast temperature rise and fall, energy saving, etc. It is a university, research institute. The industrial and mining enterprises are ideal products for high temperature sintering, metal annealing and quality testing.


UAV program temperature control instrument


1, 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1620 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3, with 485 communication interface (standard when purchasing software)

4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5, the meter has the function of temperature self-tuning


Main technical parameters:

Power

1.2 KW

Standard configuration

 Chamber size

100X100X100(DXWXH)



High temperature gloves: 1 pair


Clamps: 1


Alumina tile: 1 block


 Supply voltage

 220V

  Phase

  single phase

 Heating element

 resistance wire

 Control mode

30 sections of program temperature control

Chamber material

  Alumina polycrystalline fiber

Control precision

 +/- 1℃

 Maximum temperature

 1050℃

 Rated temperature

 1000℃

Thermocouple Type

 K Type

Silicon controlled

SEMIKRON 106/16E



mini muffle furnace


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
