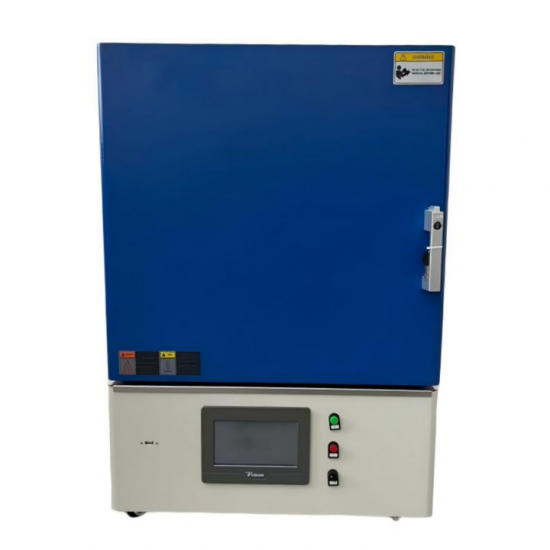

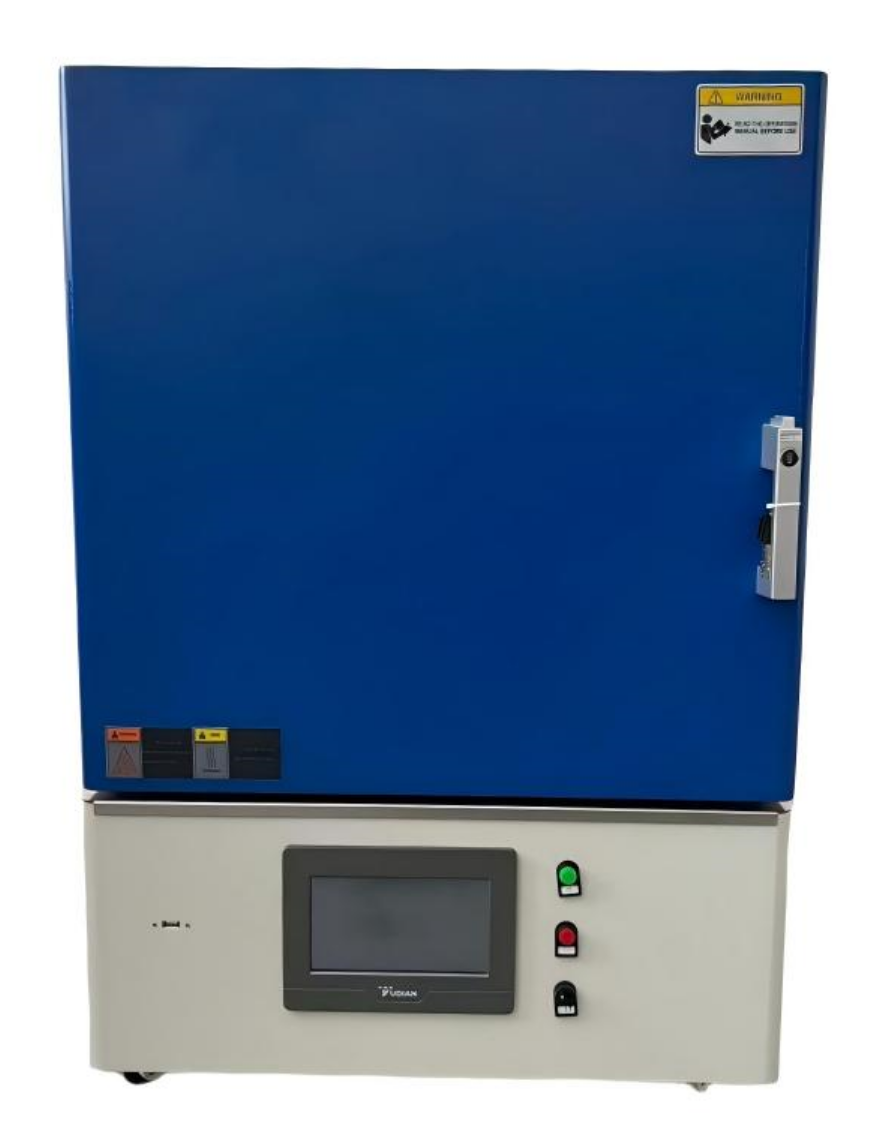

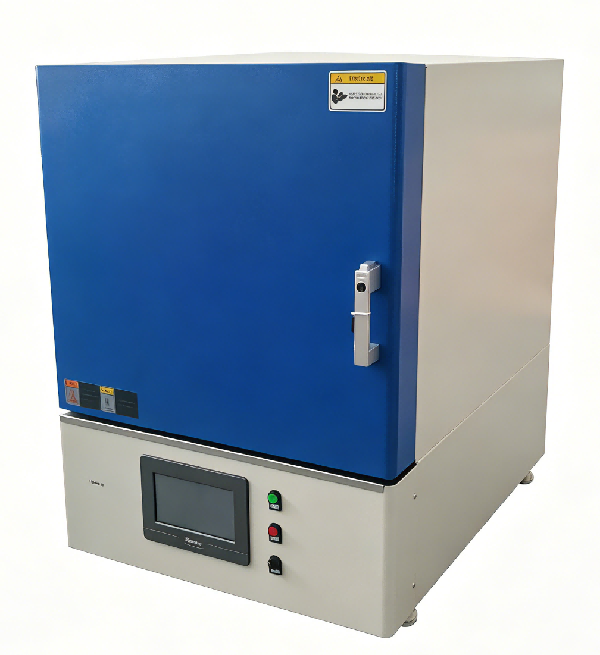

Main parameter

PN: SX2-16-17TP

Max.designTemp:1700C

Continue Working temperature: 0-1600C

Chamber size:D400*W300*H300mm(36L)

Rated power:16kw

Heating rate:0-10C/min,suggestion 0-5C/min

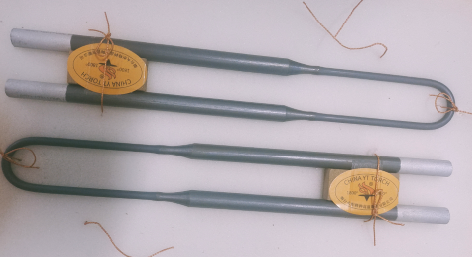

Heating element: High quality U type Mosi2 heating element

Thermocouple：B type

Temperature accuracy: ±1℃

Voltage:380v 2 phase

Furnace Chamber material

Adopt the advanced high quality alumina polycrystalline lightweight ceramic fiber board, it features low heat storage and low heat conduction, resulting in excellent thermal insulation performance. Compared to traditional resistance furnaces, it saves 60%–80% on energy and exhibits superior thermal shock resistance.

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace. U-shaped MoSi₂ heating elements are symmetrically arranged on both sides of the furnace, resulting in good heating performance.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

Equipped with locking silent swivel casters at the bottom, the equipment can be moved flexibly and locked at a fixed point, making it safe and convenient to use.

Temperature controller

Only now can we have the advanced touchscreen temperature controller from Yudian, which can be set with multiple programs and 50 temperature control segments. It has a built-in PID self-tuning function, can view historical records and curves, and has a USB interface to export data and generate curves using a USB flash drive.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (ultra-high temperature protection, coupling protection, overcurrent protection,and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Certificates:

CE,ISO

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

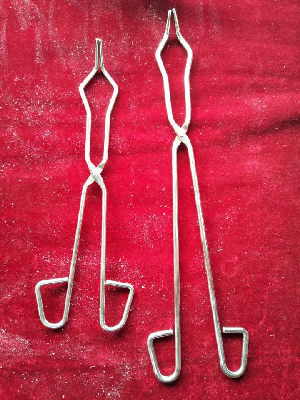

Crucible clip

1 pc

Spare heating element

2 pcs

User manual

1 book

Door block

1 pc
