Vertical Lab Full-Directional Planetary Ball Mill with Multi-grinding Jars

Product introduction:

The laboratory full-directional planetary ball mill is based on the vertical planetary ball mill and adds the planetary disc flipping function. While the planetary disc and the grinding jar are performing planetary motion, they can also flip 360° in a three-dimensional space range, achieving multi-dimensional and multi-directional movement of the grinding jar, enhancing the degree of disordered movement of the grinding balls and materials. The entire material is ground 360 degrees inside the grinding jar. It can make the ground materials more uniform and fine, and solve the problems of some materials settling at the bottom and sticking to the tank.

Product application：

The laboratory full-directional planetary ball mill is widely used in departments such as geology, mineral resources, metallurgy, electronics, building materials, ceramics, chemical engineering, light industry, medicine, and environmental protection It is applicable to electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, phosphors, long afterglow luminescent powders, rare earth polishing powders, electronic glass powders, fuel cells, zinc oxide varistors, piezoelectric ceramics, nanomaterials, circular ceramic capacitors, MLCC, thermistors (PTC, NTC), ZnO varistors, dielectric ceramics, and alumina ceramics The production fields of zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and other products.

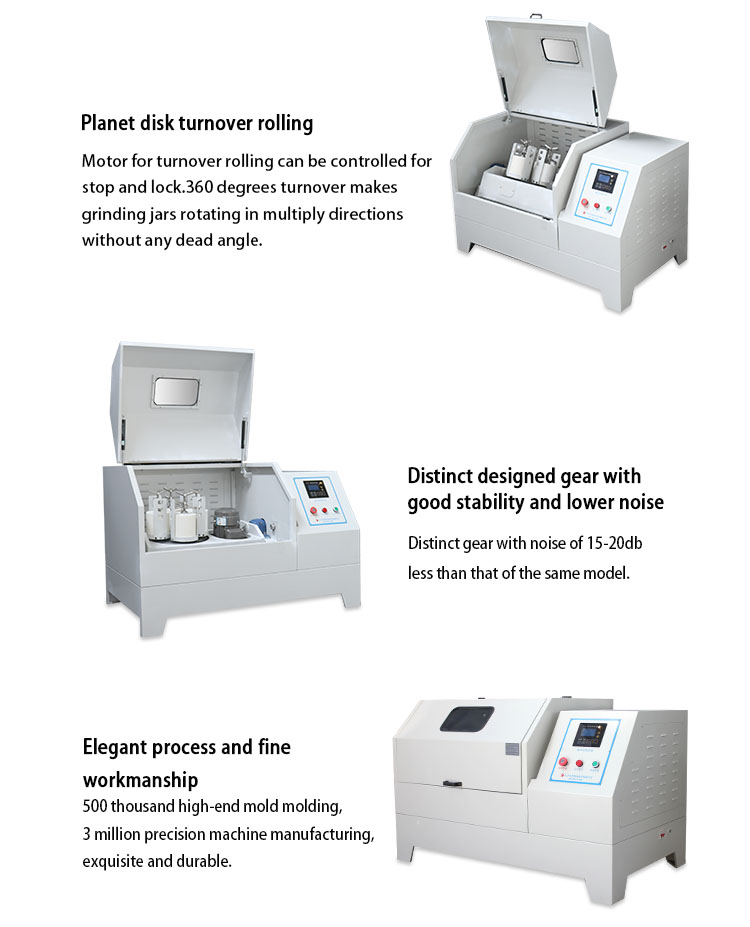

Product feature：

The professional appearance design and industrial shape of the equipment shell, with lean manufacturing, are exquisite and precise. The machined parts are processed by numerical control technology, and the transmission gears are made of special materials and precision gears to ensure smooth, safe and low-noise operation of the equipment at high speed. The reversing motor is equipped with a brake lock function, allowing it to stop at any flipping Angle, which is safe and reliable. It adopts a microcomputer touch screen, which is easy to operate and has a simple and intuitive interface. It can achieve alternating control of forward and reverse rotation and has timing and power-off memory functions.

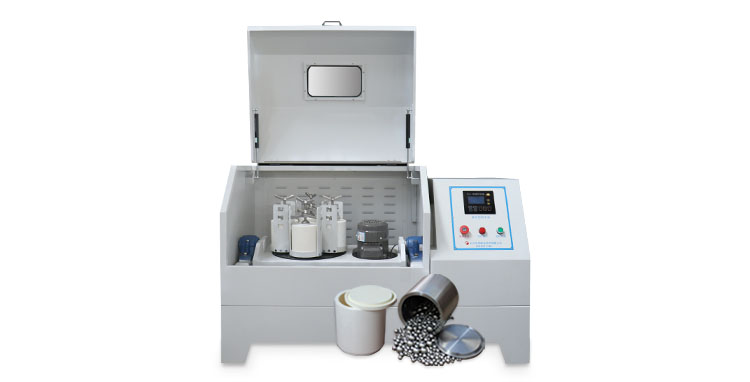

Product display：

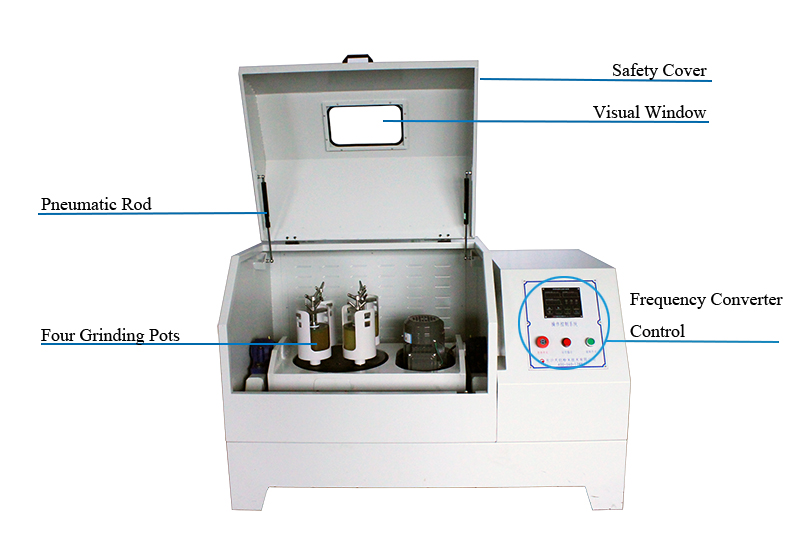

Product detail picture:

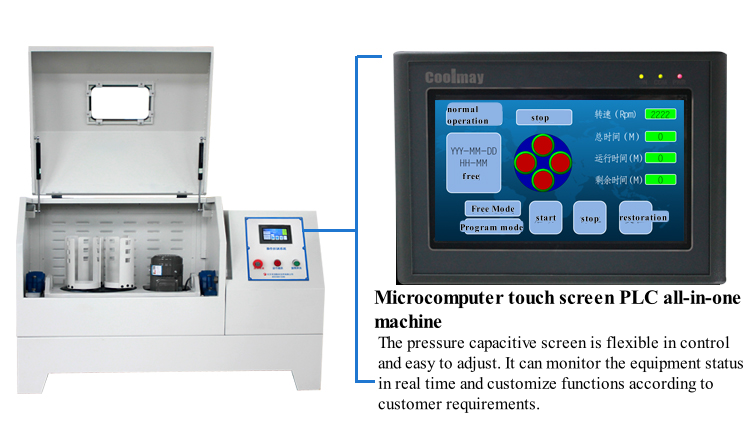

We have also launched a microcomputer touch screen PLC all-in-one machine. Customers can choose the control panel according to their own needs.

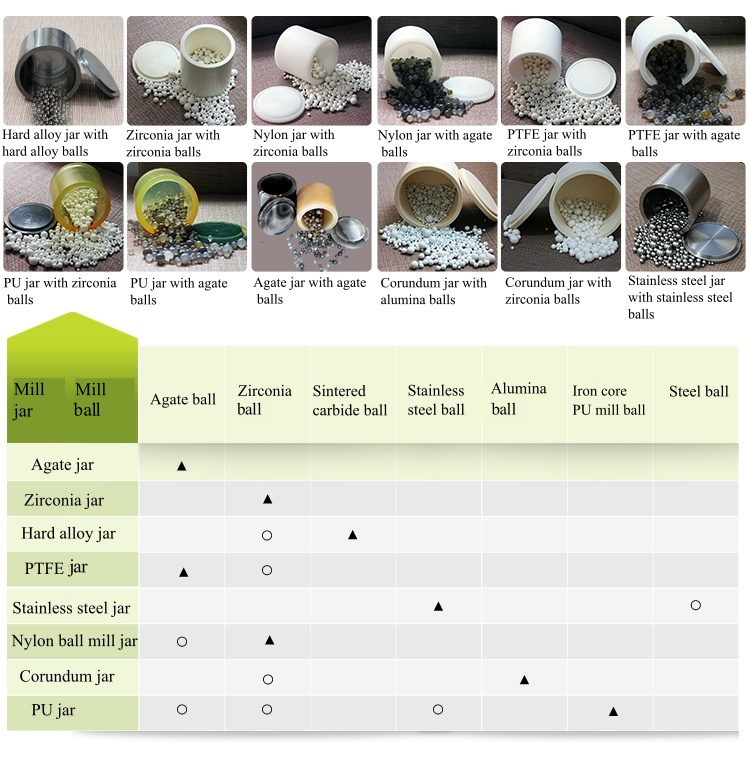

Reference for matching ball milling jars and grinding balls

Product Parameter:

Table 1 Technical Parameters For Laboratory Full-directional Planetary Ball Mill

Table 2 Technical Parameters For Laboratory Full-directional Planetary Ball Mill

Table 3 Technical Parameters For Laboratory Full-directional Planetary Ball Mill

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
