Noise-free Square Vertical Planetary Ball Mill for Lab

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-XQM
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
20 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

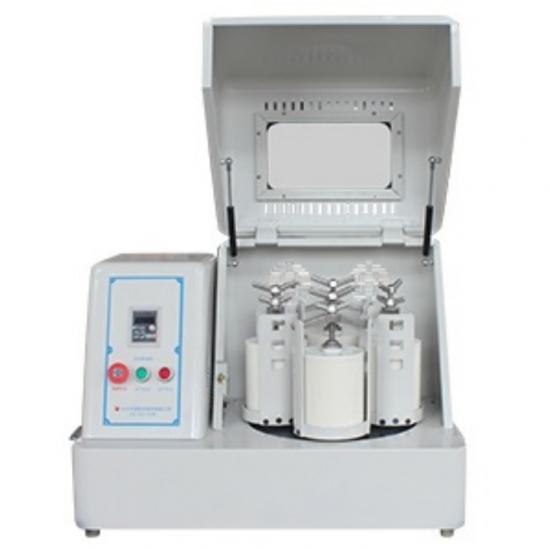

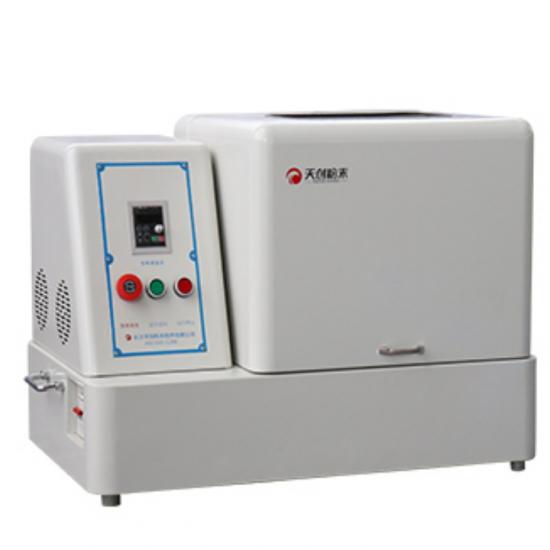

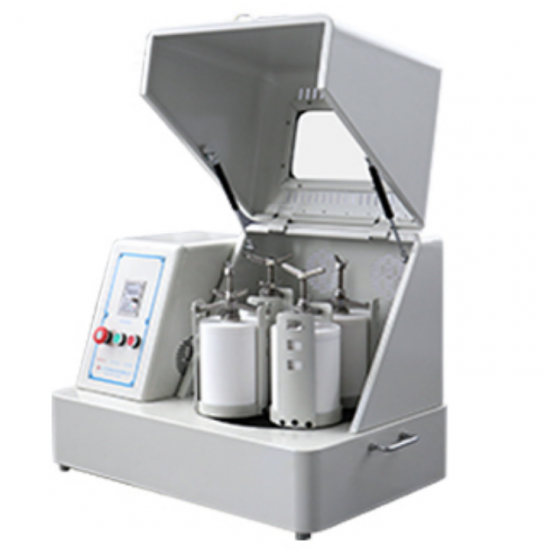

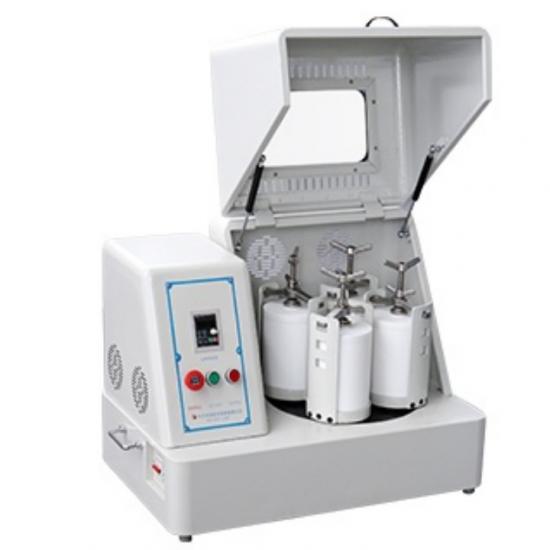

Noise-free Square Vertical Planetary Ball Mill for Lab

Product introduction

The vertical square planetary ball mill is a powder device for mixing, fine grinding, small sample preparation, new product development and small-batch production of high-tech materials. Our planetary ball mill is compact in size, fully functional, highly efficient and low in noise. It is an ideal device for research institutions, universities and enterprise laboratories to obtain research samples (four samples can be obtained simultaneously in each experiment). When equipped with a vacuum ball mill jar, it can grind samples under vacuum conditions.

Product use

Vertical square planetary ball mills are widely used in departments such as geology, mineral resources, metallurgy, electronics, building materials, ceramics, chemical engineering, light industry, medicine, and environmental protection It is applicable to electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, phosphors, long afterglow luminescent powders, rare earth polishing powders, electronic glass powders, fuel cells, zinc oxide varistors, piezoelectric ceramics, nanomaterials, circular ceramic capacitors, MLCC, thermistors (PTC, NTC), ZnO varistors, dielectric ceramics, and alumina ceramics The production fields of zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and other products.

Product feature

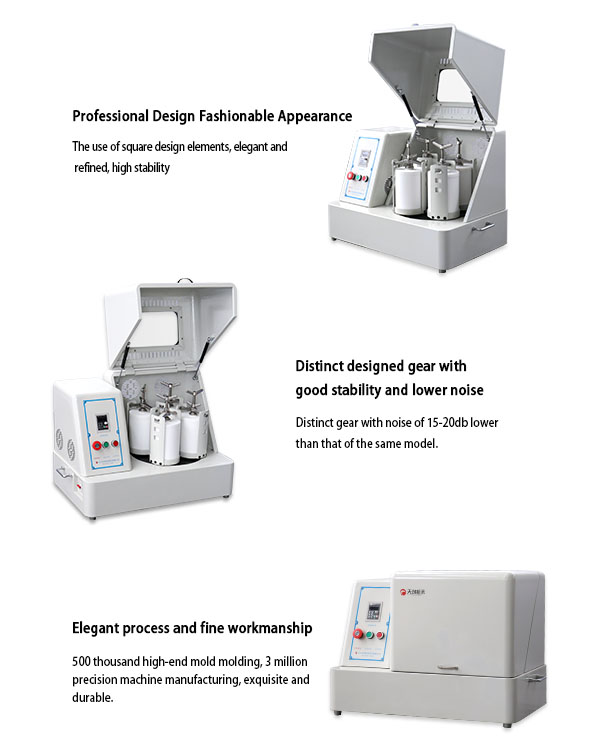

The equipment shell adopts square design elements, formed by high-precision mold stamping, which is elegant, exquisite, high-end and stable. The machined parts are processed by numerical control technology. The planetary disk is integrally cast. The transmission gears are made of special materials and are precision gears to ensure smooth and quiet operation of the equipment at high speed. The grinding jar clamping device is easy to operate, safe and reliable.

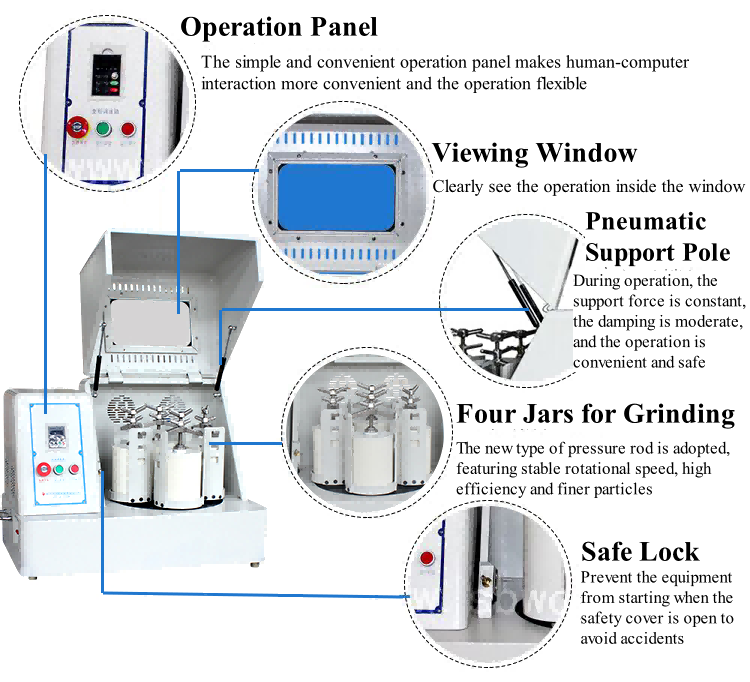

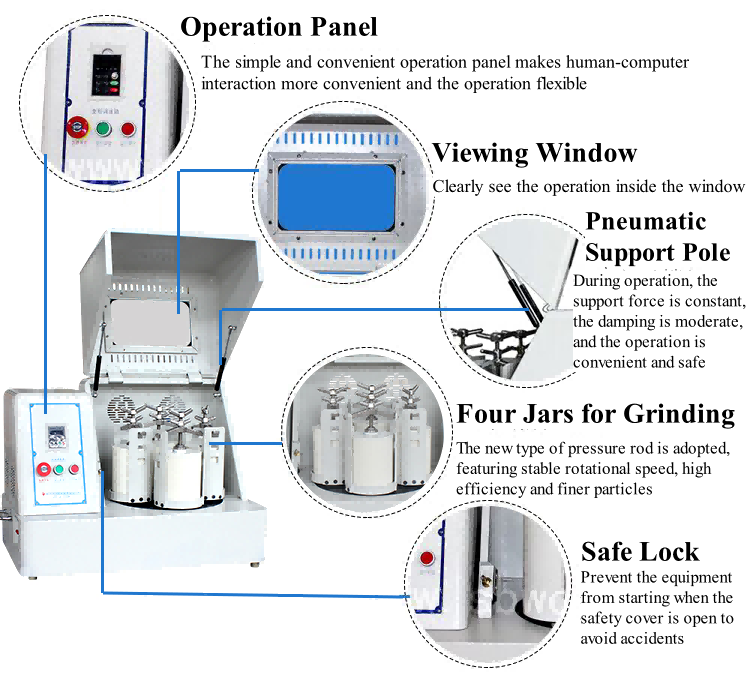

Product detail picture

Ball Mill Machine

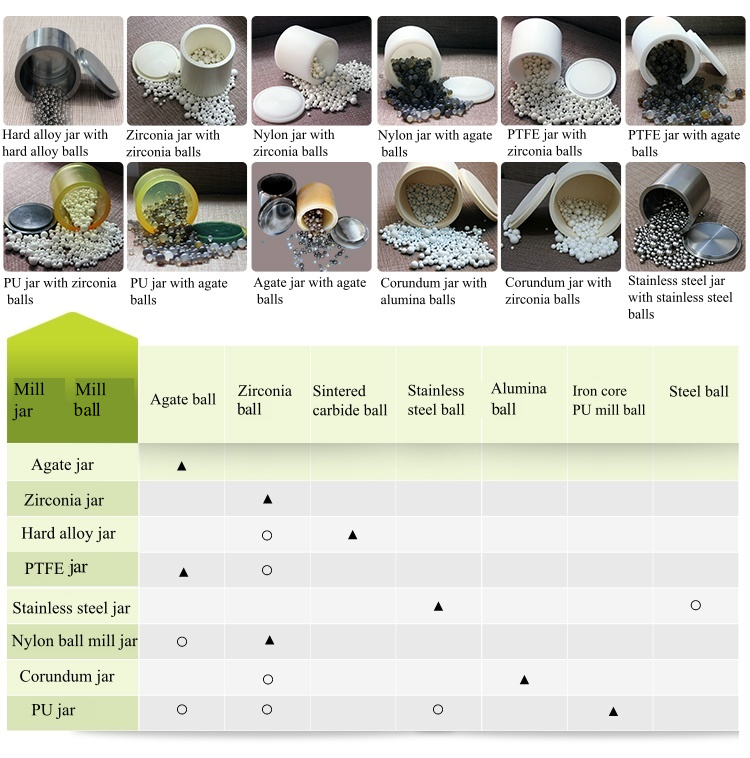

Reference for matching ball milling jars and grinding balls

Ball Mill Machine

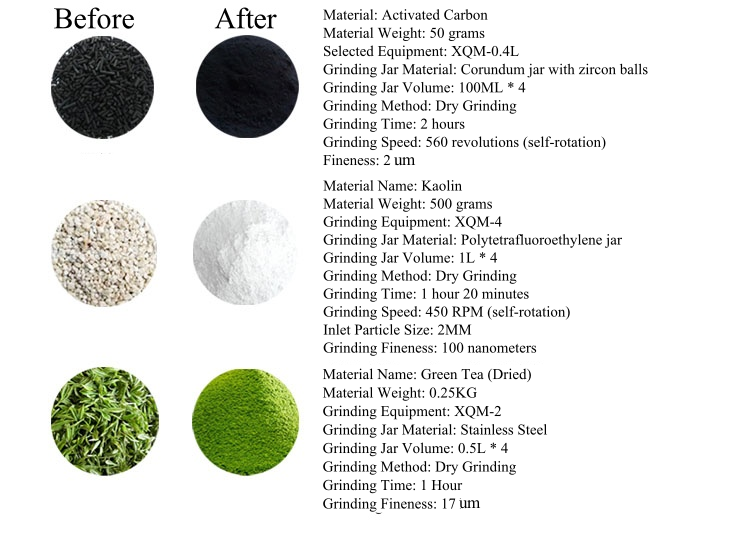

Grinding case

Ball Mill Machine

Product Parameter

Drive Mode	Gear drive
Operation Mode	Two or four grinding tanks can be used for grinding for each batch
Max Capacity for Materials	Less than 1/3 of each jar volume Total max capacity: less than 1/3 of total jars volume
Feed Size of Materials	Soft and crispy materials ≤ 10mm Other hard materials ≤ 3mm
Output Granule	Smallest granularity can be achieved to 0.1μm
Rotational Speed Ratio	1/2
Max.Continuous Operating Time	72 Hours
Materials of Available Mill Jars	304 or 316l stainless steel, Zirconia, Nylon, Polyurethane, Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide

Technical Parameter Table(I) of Vertical Planetary Ball Mill (Square Type)
Type NO	Specification	Volume of Each Matched Pot	Quantity	Remarks (Optional)
XQM-2	2L	50-500ml	4pcs	Matched with vacuum mill jars from 50ml to 250ml
XQM-4	4L	250-1000ml	4pcs	Matched with vacuum mill jars from 50ml to 1000ml
XQM-6	6L	1-1.5L	4pcs	Matched with vacuum mill jars from 50ml to 1000ml
XQM-8	8L	1-2L	4pcs	Matched with vacuum mill jars from 50ml to 1500ml
XQM-10	10L	1-2.5L	4pcs	Matched with vacuum mill jars from 1L to 2L
XQM-12	12L	1-3L	4pcs	Matched with vacuum mill jars from 1L to 2L
XQM-20	20L	2-5L	4pcs	Matched with vacuum mill jars from 2L to 4L
XQM-40	40L	5-10L	4pcs	Matched with vacuum 5L mill jars
XQM-60	60L	10-15L	4pcs	Matched with vacuum 10L mill jars
XQM-100	100L	20-25L	4pcs	Matched with vacuum 20L mill jars

Technical Parameter Table(II) of Vertical Planetary Ball Mill (Square Type)
Model	Power (KW)	Voltage	Revolution Speed (rpm)	Rotation Speed (rpm)	Total Timing (min)	Alternating Run Time of Forward & Reversal Rotation (min)	Noise≤db
XQM-2	0.75	220V-50Hz	35-335	70-670	1-9999	1-999	60db
XQM-4	0.75	220V-50Hz	35-335	70-670	1-9999	1-999	60db
XQM-6	0.75	220V-50Hz	35-335	70-670	1-9999	1-999	60db
XQM-8	1.5	220V-50Hz	35-290	70-580	1-9999	1-999	60db
XQM-10	1.5	220V-50Hz	35-290	70-580	1-9999	1-999	60db
XQM-12	1.5	220V-50Hz	35-290	70-580	1-9999	1-999	65db
XQM-20	4	380V-50Hz	25-215	50-430	1-9999	1-999	65db
XQM-40	5.5	380V-50Hz	20-195	40-390	1-9999	1-999	68db
XQM-60	7.5	380V-50Hz	27-174	40-260	1-9999	1-999	68db
XQM-100	11	380V-50Hz	27-160	40-240	1-9999	1-999	68db

Technical Parameter Table (III) of Vertical Planetary Ball Mill (Square Model)
Model	Power (KW)	Speed Control Mode	Net Weight (kg)	Dimension (mm)
XQM-2	0.75	Frequency Control	93	750470564
XQM-4	0.75	Frequency Control	93	750470564
XQM-6	0.75	Frequency Control	93	750470564
XQM-8	1.5	Frequency Control	150	900600640
XQM-10	1.5	Frequency Control	150	900600640
XQM-12	1.5	Frequency Control	150	900600640
XQM-20	4	Frequency Control	330	1200750920
XQM-40	5.5	Frequency Control	468	14008501160
XQM-60	7.5	Frequency Control	900	16009901250
XQM-100	11	Frequency Control	1250	175011401330
