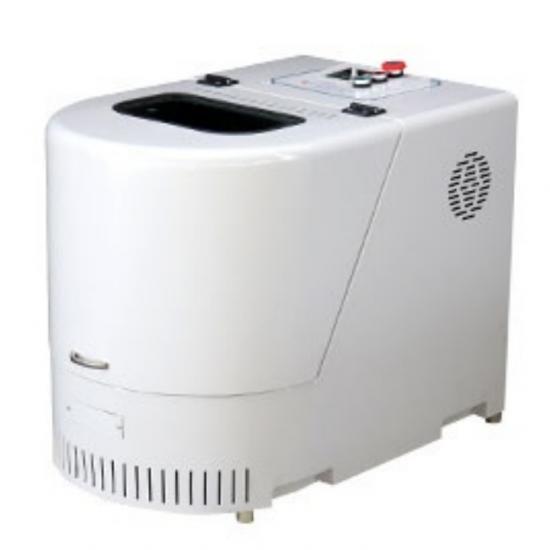

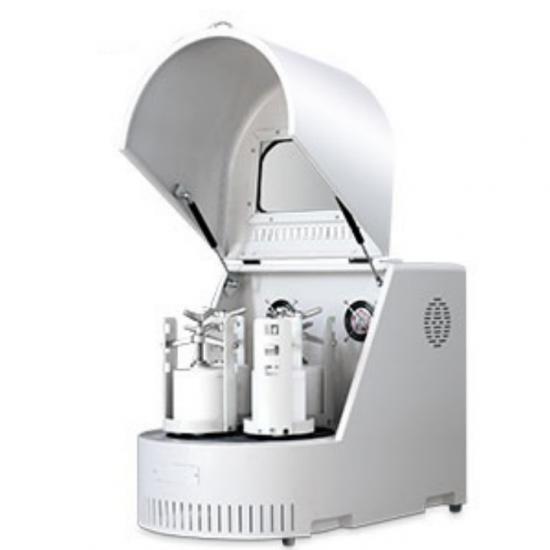

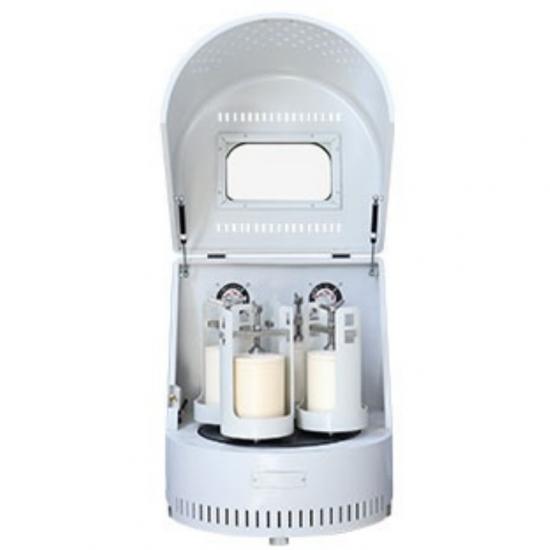

Semi-circular Vertical Planetary Desktop Ball Mill Machine for Lab

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-XQM-A
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
20 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Semi-circular Vertical Planetary Desktop Ball Mill Machine for Lab

Product introduction:

The vertical semi-circular planetary ball mill is a device for mixing, fine grinding, small sample preparation, new product development and small-batch production of high-tech materials. Our planetary ball mill is compact in size, fully functional, highly efficient and low in noise. It is a powder equipment for research institutions, universities and enterprise laboratories to obtain research samples (four samples can be obtained simultaneously in each experiment). When equipped with a vacuum ball mill jar, it can grind samples under vacuum conditions.

Product application:

Vertical semi-circular planetary ball mills are widely used in departments such as geology, mineral resources, metallurgy, electronics, building materials, ceramics, chemical engineering, light industry, medicine, and environmental protection It is applicable to electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, phosphors, long afterglow luminescent powders, rare earth polishing powders, electronic glass powders, fuel cells, zinc oxide varistors, piezoelectric ceramics, nanomaterials, circular ceramic capacitors, MLCC, thermistors (PTC, NTC), ZnO varistors, dielectric ceramics, and alumina ceramics The production fields of zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and other products.

Product feature：

The equipment shell adopts a semi-circular design element, formed by high-precision mold stamping, which is elegant, exquisite, high-end and stable. The machined parts are processed by numerical control technology. The planetary disk is integrally cast. The transmission gears are made of special materials and are precision gears to ensure smooth and quiet operation of the equipment at high speed. The grinding jar clamping device is easy to operate, safe and reliable.

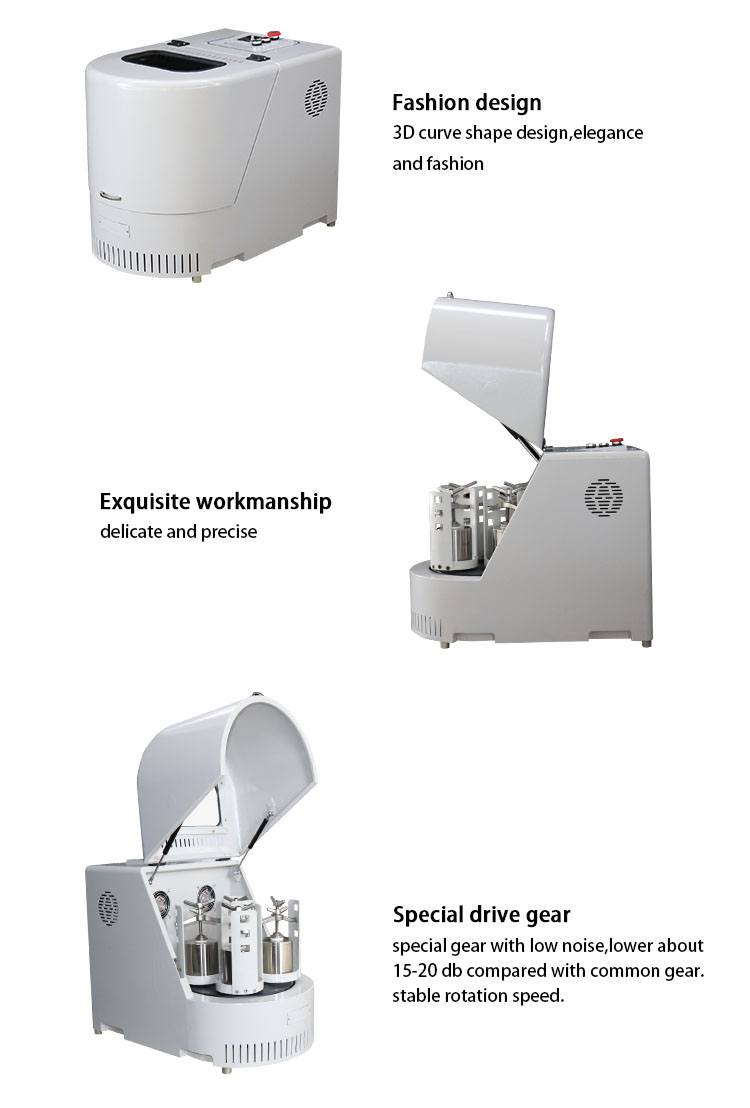

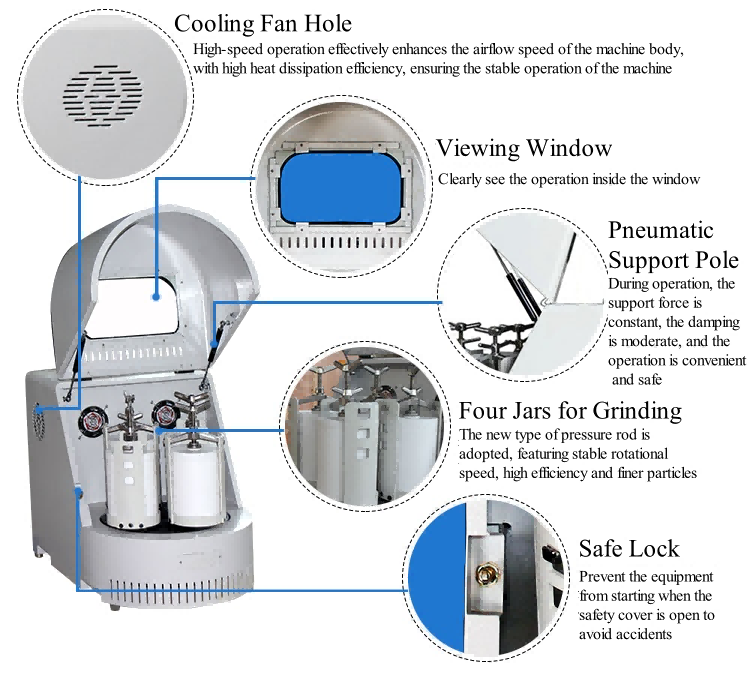

Product detail picture：

Ball Mill Machine

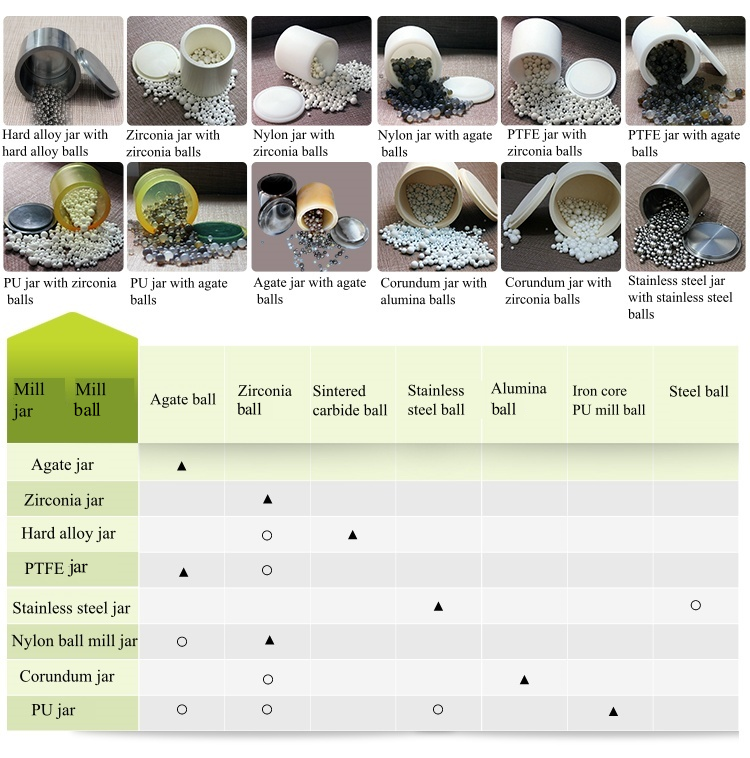

Reference for matching ball milling jars and grinding balls：

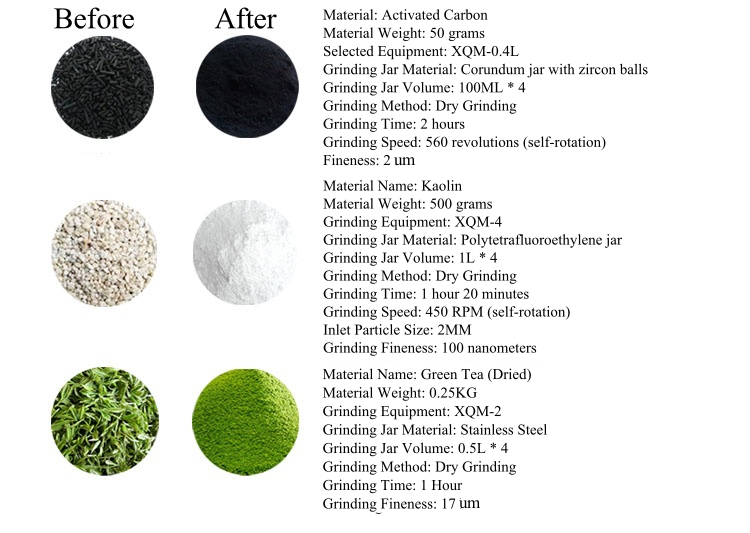

Grinding case：

Ball Mill Machine

Product Parameter：

Drive Mode	Gear drive or belt drive
Operation Mode	Two or four mill jars can be used for each grinding
Max Load Capacity	Less than 1/3 of each jar volume Total max capacity: less than 1/3 of total jars volume
Feed Size of Materials	Soft and crispy materials ≤ 10mm Other hard materials ≤ 3mm
Output Granule	Smallest granularity can be achieved to 0.1μm
Rotational Speed Ratio	1/2
Max.Continuous Operating Time	72 Hours
Materials of Available Mill Jars	304 Stainless steel, 316l stainless steel, Zirconia, Nylon, Polyurethane, Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide

Technical Parameter Table(I) of Vertical Laboratory Planetary Ball Mill(Semi-circle Round Type)
Type NO	Specification	Volume of Each Matched Pot	Quantity	Remarks(Optional)
XQM-0.2A	0.2L	50ml	4pcs	Matched with vacuum 25ml mill jars
XQM-0.4A	0.4L	50-100ml	4pcs	Matched with vacuum 50ml mill jars
XQM-2A	2L	50-500ml	4pcs	Matched with vacuum mill jars from 50ml to 250ml
XQM-4A	4L	250-1000ml	4pcs	Matched with vacuum mill jars from 50ml to 1000ml
XQM-8A	8L	1-2L	4pcs	Matched with vacuum mill jars from 50ml to 1500ml
XQM-10A	10L	1-2.5L	4pcs	Matched with vacuum mill jars from 1L to 2L
XQM-12A	12L	1-3L	4pcs	Matched with vacuum mill jars from 1L to 2L
XQM-16A	16L	2-4L	4pcs	Matched with vacuum mill jars from 1L to 3L

Technical Parameter Table(II) of Vertical Laboratory Planetary Ball Mill (Semi-circle Round Type)
Model	Power (KW)	Voltage	Revolution Speed (rpm)	Rotation Speed (rpm)	Total Timing (min)	Alternating Run Time of Forward & Reversal Rotation (min)	Noise≤db
XQM-0.2A	0.09	220V-50Hz	60-580	120-1160	1-9999	1-999	58db
XQM-0.4A	0.25	220V-50Hz	45-435	90-870	1-9999	1-999	58db
XQM-2A	0.75	220V-50Hz	35-335	70-670	1-9999	1-999	60db
XQM-4A	0.75	220V-50Hz	35-335	70-670	1-9999	1-999	60db
XQM-8A	1.5	220V-50Hz	35-290	70-580	1-9999	1-999	60db
XQM-10A	1.5	220V-50Hz	35-290	70-580	1-9999	1-999	60db
XQM-12A	1.5	220V-50Hz	35-290	70-580	1-9999	1-999	60db
XQM-16A	3	380V-50Hz	30-255	60-510	1-9999	1-999	60db

Technical Parameter Table (III) of Vertical Laboratory Planetary Ball Mill (Semi-circle Round Type)
Model	Power (KW)	Speed Control Mode	Net Weight (kg)	Dimension (mm)
XQM-0.2A	0.09	Frequency Control	24	250425280
XQM-0.4A	0.25	Frequency Control	29	500300340
XQM-2A	0.75	Frequency Control	80	750470590
XQM-4A	0.75	Frequency Control	80	750470590
XQM-8A	1.5	Frequency Control	132	880560670
XQM-10A	1.5	Frequency Control	132	880560670
XQM-12A	1.5	Frequency Control	132	880560670
XQM-16A	3	Frequency Control	203	950600710
