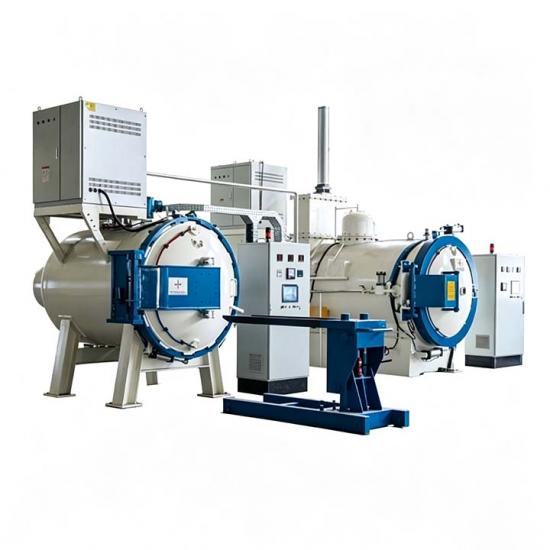

Vacuum Tempering Aging Furnace for Non Ferrous Metal Production

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-ZHH
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Vacuum Tempering Aging Furnace for Non Ferrous Metal Production

Product Overview

It is mainly suitable for bright tempering of various materials after vacuum quenching, and can also be used for recrystallization annealing and aging treatment of non-ferrous metals.

Product Features

Heating elements: High-temperature nickel-chromium alloy, high-purity graphite or molybdenum
Insulation materials: Composite metal shield structure (heat-resistant steel + stainless steel), rigid graphite felt, composite metal shield structure (molybdenum + stainless steel)
Cooling medium: High-purity nitrogen or high-purity argon
Compact structure with high degree of automation, meeting environmental protection and energy-saving requirements
Safe and stable operation; the system supports fault self-diagnosis, audible and visual alarms, and corresponding interlock protection functions
Optional configurations: High-vacuum system or customized effective zone dimensions as specified by customers

Specification

Model	Effective Zone (mm)	Loading Capacity (kg)	Temperature Uniformity (°C)	Pressure Rise Rate (Pa/h)	Max. Temperature (°C)	Heating Power (kW)	Ultimate Vacuum Degree (Pa)	Gas Quenching Pressure (bar)
ZHH-40	450×300×300	100	±5	0.5	1320	40	5×10⁻³ or 4×10⁻¹	2
ZHH-80	600×400×400	200	±5	0.5	1320	80	5×10⁻³ or 4×10⁻¹	2
ZHH-120	700×500×500	300	±5	0.5	1320	120	5×10⁻³ or 4×10⁻¹	2
ZHH-150	900×600×600	500	±5	0.5	1320	150	5×10⁻³ or 4×10⁻¹	2
ZHH-200	1200×600×600	800	±5	0.5	1320	200	5×10⁻³ or 4×10⁻¹	2
ZHH-300	1500×800×800	1500	±5	0.5	1320	300	5×10⁻³ or 4×10⁻¹	2
