Item No.:
TMAX-ZY-VSFPayment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
5 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:
Two years limited warranty with lifetime technical support

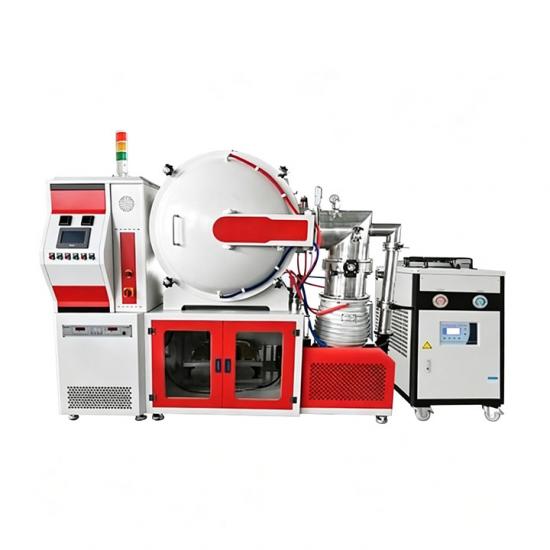

Energy Efficient Batch Vacuum Sintering Furnace for Powder Metallurgy
Specification
|
Item |
Specification |
|
Working Chamber Size (D×W×H) |
200×200×200 mm 300×200×200 mm 500×400×300 mm 600×400×400 mm |
|
Pressure Rise Rate |
< 2 Pa/h |
|
Gas Filling Pressure |
≤ 0.03 MPa |
|
Rated Power |
7 kW / 12 kW / 20 kW / 30 kW |
|
Rated Voltage |
220 V / 380 V |
|
Ultimate Vacuum Degree |
5×10⁻³ Pa |
|
Temperature Control Accuracy |
±1℃ |
|
Filling Media |
Argon (Ar), Nitrogen (N₂), Oxygen (O₂), Carbon Monoxide (CO), etc. |
Details
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
