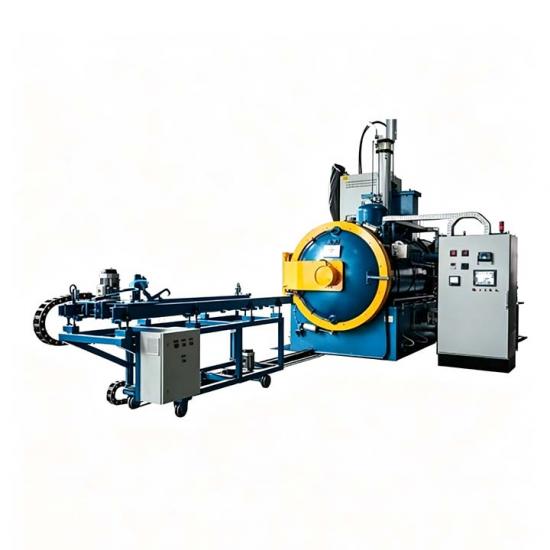

Vacuum Oil Quenching Gas Cooling Furnace Double Chamber for Steel Manufacturing

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-ZYQ2
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Vacuum Oil Quenching Gas Cooling Furnace Double Chamber for Steel Manufacturing

Introduction

The ZYQ2 series double-chamber vacuum oil quenching & gas cooling furnace is mainly suitable for bright quenching of tool steel, die steel, bearing steel, spring steel and other similar materials.

Product Features

Heating Elements: High-purity graphite or molybdenum
Insulation Materials: Graphite soft felt, or composite metal shield insulation structure of molybdenum + stainless steel
Cooling Medium: Vacuum quenching oil, high-purity nitrogen or high-purity argon
Compact structure with high degree of automation, meeting environmental protection and energy-saving requirements
Horizontal operation adopts frequency conversion speed regulation mode, and vertical direction adopts multi-speed operation mode, ensuring stable mechanism operation and long service life
Wide application range for product processing and low use cost; quenching oil can be reused
Safe and stable operation; the system supports fault self-diagnosis, audible and visual alarms, as well as corresponding interlock protection functions
Optional Configurations: Low-temperature convection heating system, hot chamber high-vacuum system, and customized effective zone dimensions as specified by customers

Specification

Model	Valid Zone (mm)	Loading Capacity (kg)	Temperature Uniformity (°C)	Pressure Rise Rate (Pa/h)	Max. Temperature (°C)	Heating Power (kW)	Ultimate Vacuum (Pa)	Gas Cooling Pressure (bar)
ZYQ2-40	450×300×300	80	±5	0.5	1320	40	5×10⁻³ or 4×10⁻¹	2
ZYQ2-65	600×400×400	150	±5	0.5	1320	80	5×10⁻³ or 4×10⁻¹	2
ZYQ2-80	700×500×500	250	±5	0.5	1320	120	5×10⁻³ or 4×10⁻¹	2
ZYQ2-150	900×600×600	500	±5	0.5	1320	150	5×10⁻³ or 4×10⁻¹	2
ZYQ2-240	1200×800×800	1000	±5	0.5	1320	240	5×10⁻³ or 4×10⁻¹	2
ZYQ2-300	1500×800×800	1200	±5	0.5	1320	300	5×10⁻³ or 4×10⁻¹	2
