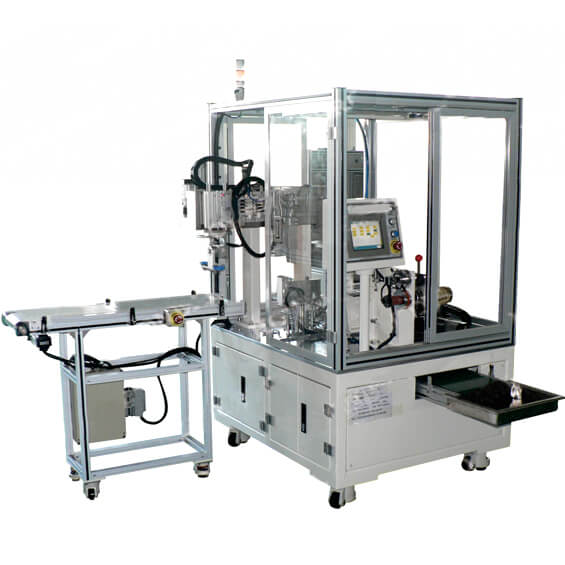

U Type Sticking Film Machine For Pouch Cell Lithium Batteries PP Surface Protective Film
Functions
● This equipment is suitable for the flexible packaging lithium batteries PP surface protective film.
Features
● Servo fixed-length puller, floating roller automatic tensioning.
● Drawstring to bring in and out, step by step control of roller coated.
● Vertical gas rose axis roll type feeding.
● PLC control, touch screen to adjust parameters.
Technical Parameters(for reference)：
|
ITEM |
HBDCS200(single station) |
TMQ200(double stations) |
|
Measure |
1960*1000*2000mm(L*W*H) |
2100*1950*2000mm(L*W*H) |
|
Weight |
About 0.8T |
About 1.2T |
|
Power |
AC220V/50HZ, 2.5KW |
AC220V/50HZ, 3KW |
|
Air source |
≧0.6Mpa,40L/Min |
≧0.6Mpa,40L/Min |
|
Vacuum source |
≤-0.095Mpa,80L/Min |
≤-0.095Mpa,80L/Min |
|
Applicable range |
H:50-200mm*W:60-200mm*T:2.5-10mm |
H:50-200mm*W:60-200mm*T:2.5-10mm |
|
Capacity |
10EA/Min |
20EA/Min |
|
Action |
≧99% |
≧99% |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
