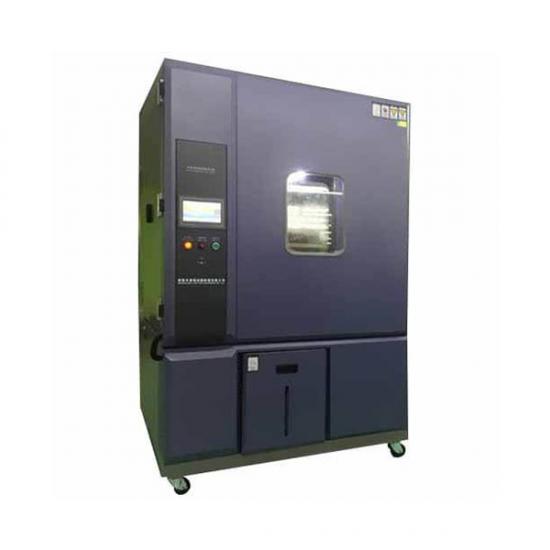

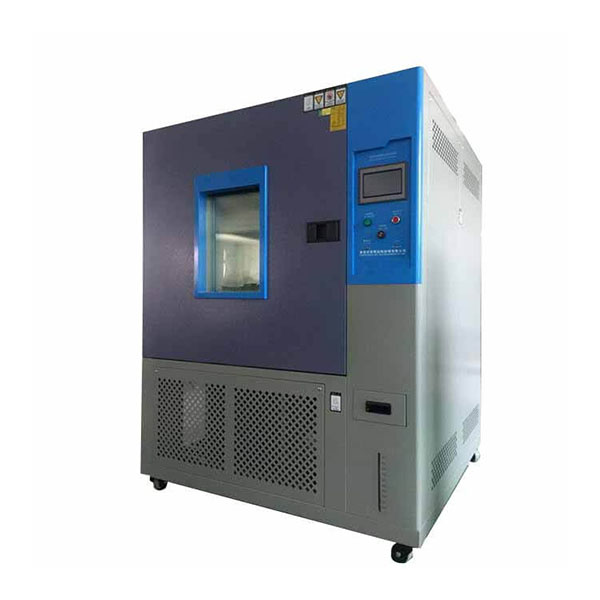

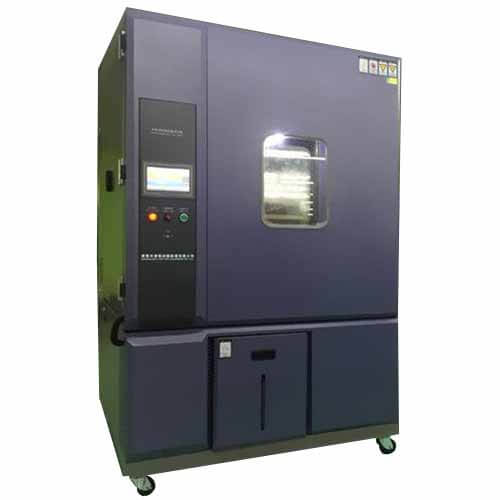

Temperature Humidity Test Chamber For Pouch Cell Manufacturing Quality Inspection

Introduction

Temperature humidity test chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

Model	TMAX-80(A~F)	TMAX-150(A~F)	TMAX-225(A~F)	TMAX-408(A~F)	TMAX-800(A~F)	TMAX-1000(A~F)
Internal Dimension WxHxD (mm)	400x500x400	500x600x500	600x750x500	600x850x800	1000x1000x800	1000x1000x1000
Internal Dimension WxHxD (mm)	950x1650x950	1050x1750x1050	1200x1900x1150	1200x1950x1350	1600x2000x1450	1600x2100x1450
TemperatureRange	Low Temperature(A:25°C  B:0°C  C:-20°C  D:-40°C  E:-60°C  F:-70°C)  High Temperature 150°C
HumidityRange	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need Dehumidifier)
Analytic Accuracy/ Distribution uniformity of temperature and humidity	0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H.
Control Accuracy of Temperature and Humidity	±0.5°C; ±2.5% R.H.
Cooling System	Wind cooling or water cooling/single segment compressor(-40°C, double segment compressor -70°C)
Temperature Rising/Falling Speed Rate	Temperature rising approx.  0.1~3.0°C/min temperature falling approx.  0.1~1.5°C/min; ( The Falling Speed Rate Min.1.5°Cper minute is a special optional condition)
Power	AC220V  1ph 3 lines, 50/60HZ ,  AC380V   3ph  5 lines , 50/60HZ
Approx. Weight (Kg)	150	180	250	320	400	450

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
