Small Lab Manual Powder Tablet Hydraulic Press with Two Column for Powder Pressing 3T 5T 12T 15T

Small Lab Manual Powder Tablet Hydraulic Press with Two Column for Powder Pressing 3T 5T 12T 15T

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-SYP-TS
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

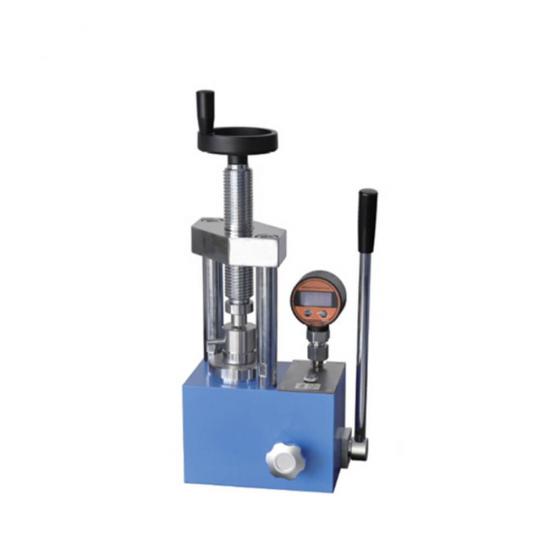

Small Lab Manual Powder Tablet Hydraulic Press with Two Column for Powder Pressing 3T 5T 12T 15T





New SYP-TS digital display series


SYP-TS series protective hydraulic press is based on SYP-T pointer series upgrade and optimize the pressure display series, using XNNETS "S" type digital display pressure gauge, display accuracy of 0.01MPa, is very suitable for safety and pressure control precision requirements of the laboratory use.

With a specific mold, it can be pressed into shape for all kinds of powder samples. It is a common supporting equipment for calcium and iron analysis, infrared spectroscopy (IR), X-ray fluorescence (spectrometer) and other analytical instruments.

At the same time the machine is also suitable for other need corresponding pressure in the workplace, as the use of press, testing the pressure degree of various objects, etc., the application is very wide.







Parameters


Model

SYP-3BS

SYP-5BS

SYP-12BS

SYP-15BS

Pressure range

0-3T(0-28.8Mpa)

0-5T(0-31.4Mpa)

0-12T(0-30Mpa)

0-15T(0-30Mpa)

Pressure conversion

1T=9.6Mpa

1T=6.28Mpa

1T=2.5Mpa

1T=2.0Mpa

Piston diameter

Dia35 chrome plated cylinder

Dia45 chrome plated cylinder

Dia70 chrome plated cylinder

Dia80 chrome plated cylinder

Maximum piston stroke

30mm

30mm

30mm

30mm

Type of pressure gauge

XNNETS "S" digital pressure gauges, range 0.01-40.00 MPa, accuracy 0.01MPa

Pressure mode

Manual pressurization/manual slow pressurization

Pressure stability

≤1MPA/10min

Overall structure

One-piece structure, tightly connected equipment, reduce oil leakage points

Worktable diameter

Dia80mm

Dia80mm

Dia80mm

Φ90mm

Working space

96*130mm

96*130mm

96*130mm

140*150mm

Overall dimension

225*155*380mm

225*155*380mm

225*155*380mm

245*175*390mm

Weight

28kg

28kg

28kg

38kg

Note

Two column tablet press, column height can be customized;

Optional "S" digital pressure gauge;

Optional mold;

Accuracy 0.01 MPa, more accurate pressure control





 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
