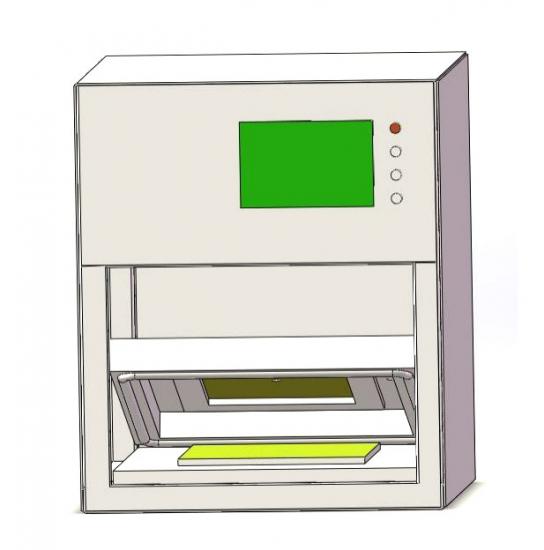

Equipment appearance diagram

Main technical parameters:

Device features:

1) Compact and intelligent, suitable for laboratory use, can be placed on the laboratory table. Touch one-button operation, easy to operate.

2) Specialized composite heating plate, excellent heat conduction effect, more uniform heating surface temperature. The unique heat insulation protection strips at the edge of the heating plate ensure no heat loss.

3) No leakage points, full coverage chassis heating design, more uniform heating, faster temperature rise.

4) PLC touch screen control, simple engineering mode: can display lamination times, can independently design heating temperature, heating time, lamination pressure.

Main equipment configuration:

1) Vacuum pressure switch: SMC or equivalent brand

2) Vacuum pump: Silent vacuum pump

3) Touch screen: Integrated touch screen

4) Control system: PLC touch screen integrated design, automatically records lamination times, English operating system

5) Outer frame structure: Welded with Q235b steel

6) Heating plate structure: Special composite heating plate, non-corrosive, fast heating

7) Opening method: Cylinder for opening cover

8) Heating method: Electric heating
