Item No.:
TMAX-KT-XL8250FPayment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
5 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:

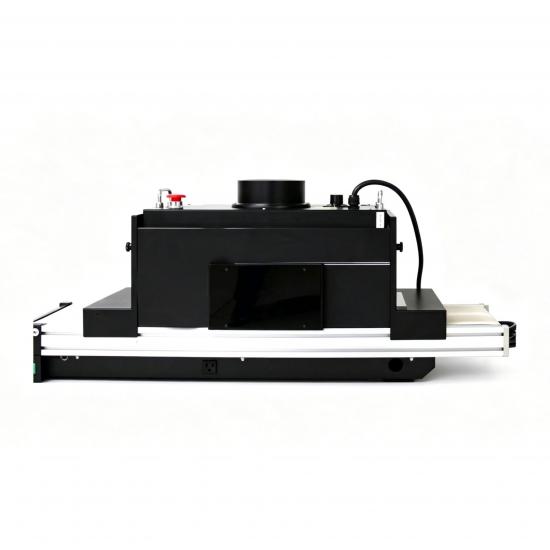

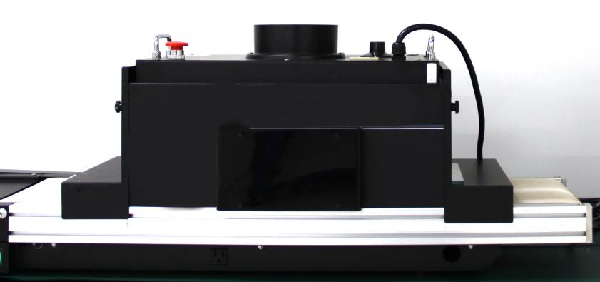

Two years limited warranty with lifetime technical supportContinuous Mesh Belt UV Curing Machine with 230mm Curing Width for Adhesive and Coating Curing
Equipment parameters:
|
Mesh belt UV Curing Machine |
KT-XL8250F |
|
UV Lamp Power |
1000 W |
|
UV Irradiance (Max.) |
60-80 mW/cm² (at 80 mm height) |
|
UV Peak Wavelength |
365 nm |
|
Lamp Life |
1000 H |
|
Max. Curing Sample Size |
230 mm |
|
Conveyor Belt Speed (Adjustable) |
0.6 m/min – 5 m/min |
|
Conveyor Belt Height (Adjustable) |
20-110 mm |
|
Weight |
35 kg |
|
Fuse |
15 A |
|
Machine Dimensions (L × W × H) |
1130 mm × 285 mm × 3800 mm (height adjustable) |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
