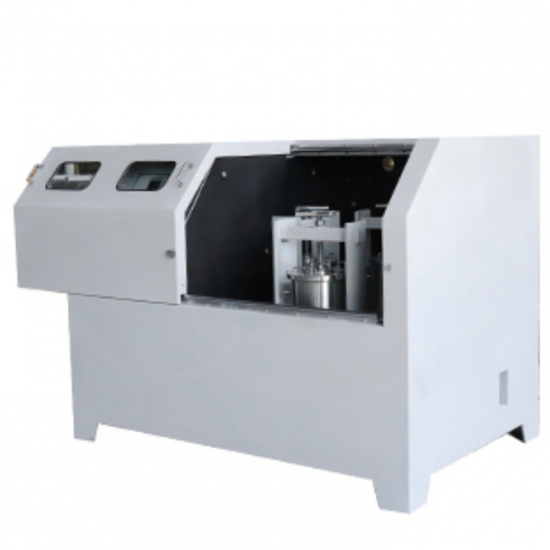

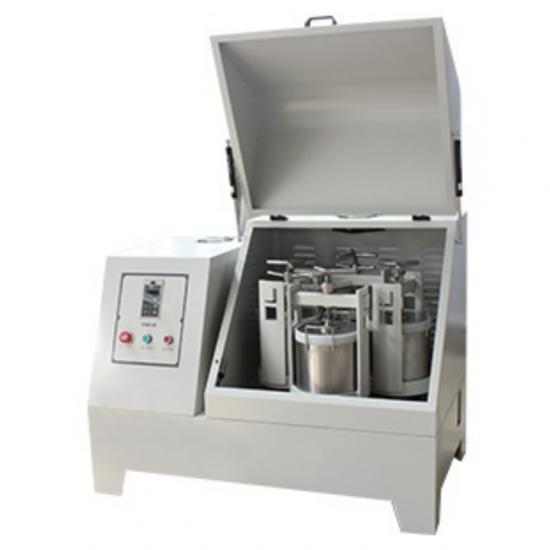

Large Vertical Production Type Planetary Ball Mill For Mixing and Grinding

Product introduction

The vertical production type planetary ball mill is a large planetary ball mill designed and manufactured on the basis of the principle of the small planetary ball mill. The production type planetary ball mill is mainly suitable for batch grinding production by users.

Product use

Vertical production planetary ball mills are widely used in departments such as geology, mineral resources, metallurgy, electronics, building materials, ceramics, chemical engineering, light industry, medicine, and environmental protection. It is applicable to electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, phosphors, long afterglow luminescent powders, rare earth polishing powders, electronic glass powders, fuel cells, zinc oxide varistors, piezoelectric ceramics, nanomaterials, circular ceramic capacitors, MLCC, thermistors (PTC, NTC), ZnO varistors, dielectric ceramics, and alumina ceramics The production fields of zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and other products.

Product feature

1. Stable revolving speed of the drive gear ensures consistency and repeatability of experiment.

2. Planetary movement principle is adopted in the machine with advantages of high speed, large energy, high efficiency, fine granularity.

3. Four powder samples from different sizes and different materials can be obtained for each batch.
4. Ball mill is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The frequency converter is
equipped with device of under voltage and over-current to protect the motor.
5. Planetary ball mill has functions of timing power off, self-timing forward and reversal rotation. You may choose freely any operation mode of one-way direction,
alternation, succession, time setting according to experimental needs, so as to improve grinding efficiency.
6. Technical features of Tencan planetary ball mill: low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine for stopping to prevent safety accident if the safety cover is opened while machine is running.

Product Parameter

Note:Production-type planetary ball mills generally refer to those with a specification of 20L or more. However, production-type is only a relative concept. Some customers have a large production volume and use 100L planetary ball mills to process samples. Some customers have very expensive products but a very small production volume, and they use 4L planetary ball mills for small-batch production.

Drive Mode	Gear drive
Operation Mode	Two or four mill jars can be used for each grinding
Max Load Capacity For Materials	Less than 1/3 of each jar volume, total max capacity: less than 1/3 of total jars volume
Feed Size of Materials	Soft and Crispy material≤10mm,Other hard materials≤3mm
Output Granularity	Smallest granularity can be reached to 0.1µm
Volume of the ball mill jar	Each can is 5L-50L, with a total volume of 20L-200L
Speed adjustment mode	The brand frequency converter offers stepless speed regulation with a rotational speed accuracy of 0.2/min
Rotational Speed Ratio	1/2
Max.Continuous Operating Time	72 Hours

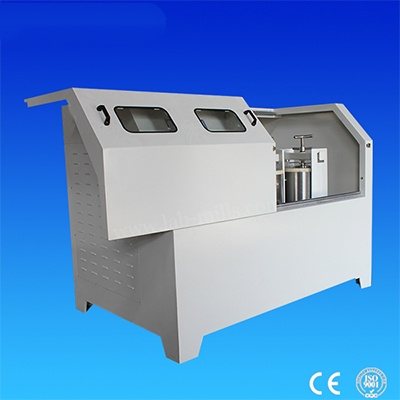

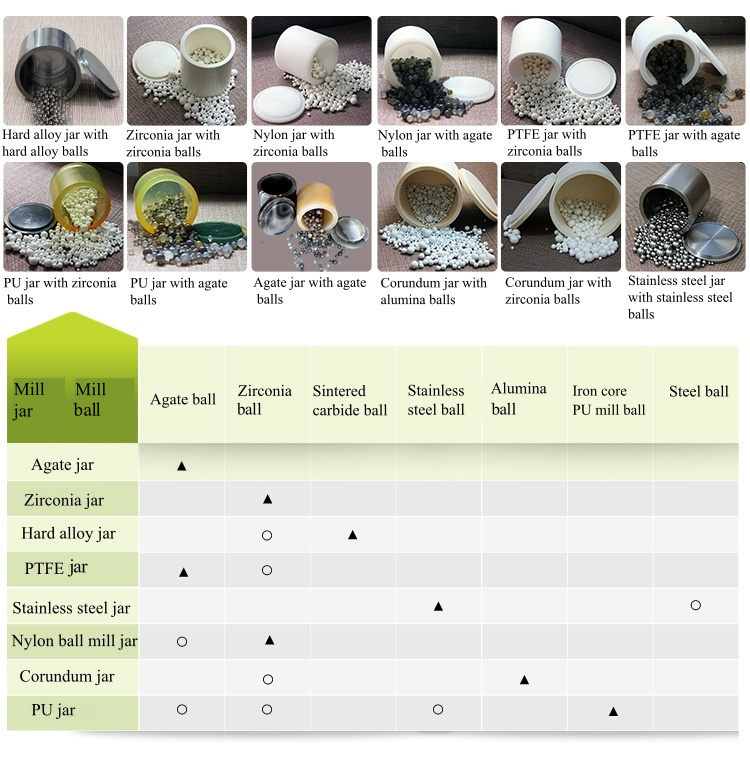

Materials of Available Mill Jars	304 Stainless steel, 316l stainless steel, Zirconia, Nylon, PU, Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide,etc

Technical Parameter Table(I) of Vertical Square Planetary Ball Mill (Production Type)
Type NO	Specification	Volume of Each Matched Pot	Quantity	Remarks (Optional)
TMAX-XQM-2	2L	50-500ml	4 pcs	Matched with vacuum mill jars from 50ml to 250ml
TMAX-XQM-4	4L	250-1000ml	4 pcs	Matched with vacuum mill jars from 50ml to 1000ml
TMAX-XQM-6	6L	1-1.5L	4 pcs	Matched with vacuum mill jars from 50ml to 1000ml
TMAX-XQM-8	8L	1-2L	4 pcs	Matched with vacuum mill jars from 50ml to 1500ml
TMAX-XQM-10	10L	1-2.5L	4 pcs	Matched with vacuum mill jars from 1L to 2L
TMAX-XQM-12	12L	1-3L	4 pcs	Matched with vacuum mill jars from 1L to 2L
TMAX-XQM-20	20L	2-5L	4pcs	Matched with vacuum mill pots from 2L to 4L
TMAX-XQM-40	40L	5-10L	4pcs	Can be Matched with 5L Vacuum mill Pot
TMAX-XQM-60	60L	10-15L	4pcs	Can be Matched with 10L Vacuum mill Pot
TMAX-XQM-100	100L	20-25L	4pcs	Can be Matched with 20L Vacuum mill Pot

Technical Parameter Table(II) of Vertical Square Planetary Ball Mill (Production Type)
Model	Power (KW)	Voltage	Revolution Speed (rpm)	Rotation Speed (rpm)	Total Timing (min)	Alternating Run Time of Forward & Reversal Rotation (min)	Noise≤db
TMAX-XQM-2	0.75	220V-50Hz	35-335	70-670	1-9999	1-999	60db
TMAX-XQM-4	0.75	220V-50Hz	35-335	70-670	1-9999	1-999	60db
TMAX-XQM-6	0.75	220V-50Hz	35-335	70-670	1-9999	1-999	60db
TMAX-XQM-8	1.5	220V-50Hz	35-290	70-580	1-9999	1-999	60db
TMAX-XQM-10	1.5	220V-50Hz	35-290	70-580	1-9999	1-999	60db
TMAX-XQM-12	1.5	220V-50Hz	35-290	70-580	1-9999	1-999	65db
TMAX-XQM-20	4	380V-50Hz	25-215	50-430	1-9999	1-999	65db
TMAX-XQM-40	5.5	380V-50Hz	20-195	40-390	1-9999	1-999	68db
TMAX-XQM-60	7.5	380V-50Hz	27-174	40-260	1-9999	1-999	68db
TMAX-XQM-100	11	380V-50Hz	27-160	40-240	1-9999	1-999	68db

Technical Parameter Table(III) of Vertical Square Planetary Ball Mill (Production Type)
Model	Power (KW)	Speed Control Mode	Net Weight (kg)	Dimension (mm)
TMAX-XQM-2	0.75	Frequency Control	93	750470564
TMAX-XQM-4	0.75	Frequency Control	93	750470564
TMAX-XQM-6	0.75	Frequency Control	93	750470564
TMAX-XQM-8	1.5	Frequency Control	150	900600640
TMAX-XQM-10	1.5	Frequency Control	150	900600640
TMAX-XQM-12	1.5	Frequency Control	150	900600640
TMAX-XQM-20	4	Frequency Control	440	1200760920
TMAX-XQM-40	5.5	Frequency Control	675	14008501030
TMAX-XQM-60	7.5	Frequency Control	875	16009501120
TMAX-XQM-100	11	Frequency Control	1100	175011001180

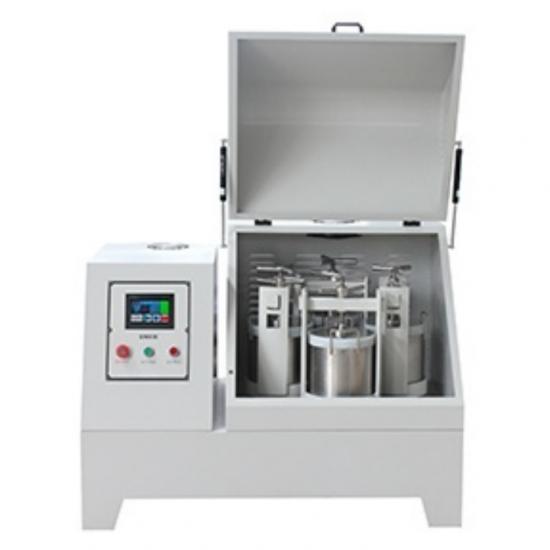

Product display

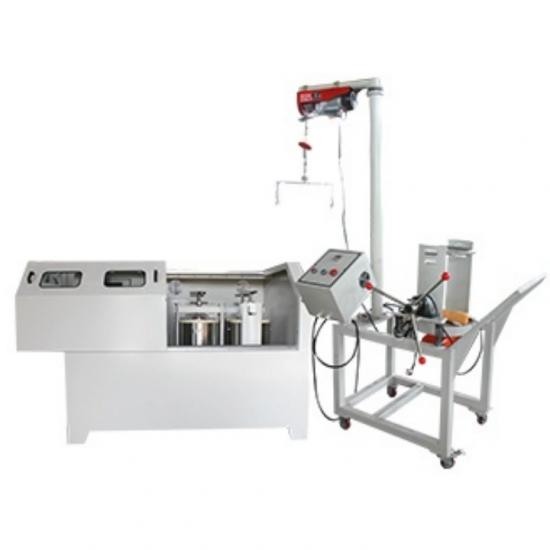

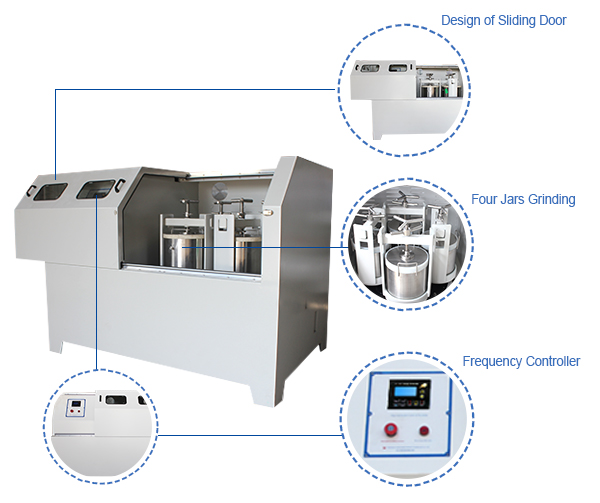

Ball Mill Machine Manufacturer

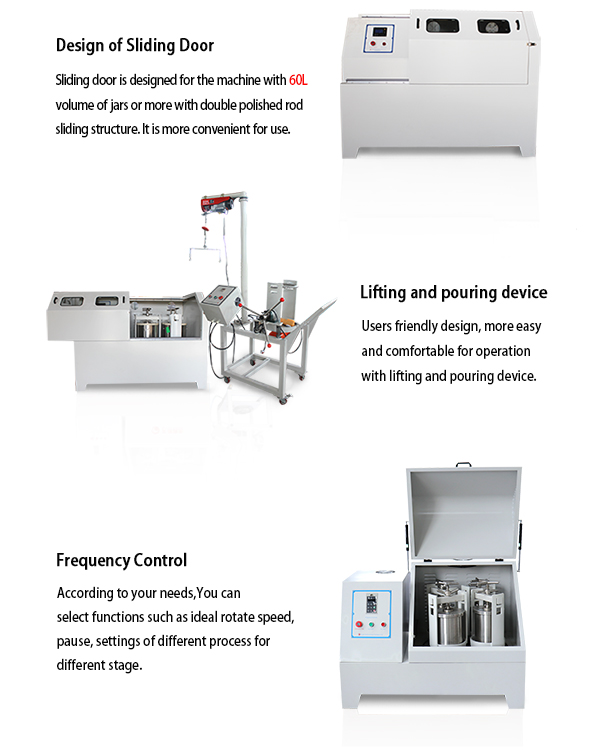

Product details

Ball Mill Machine Manufacturer

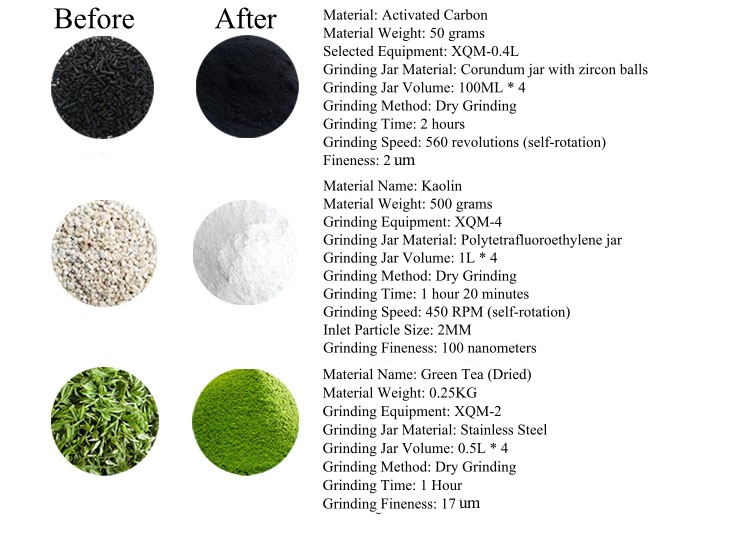

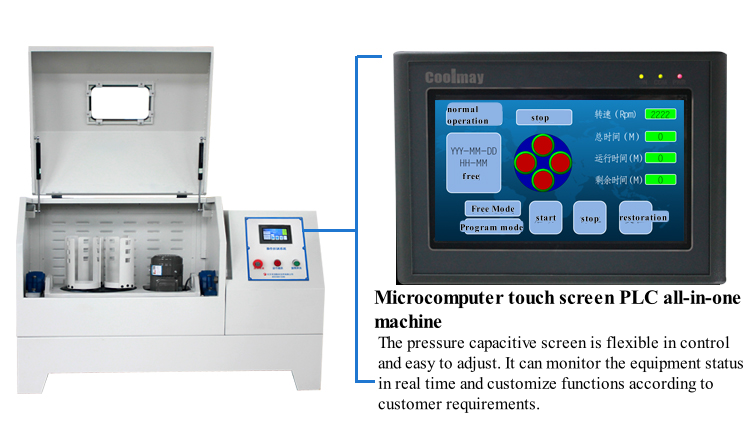

Our company has also launched a microcomputer touch screen PLC all-in-one machine. Customers can choose the control panel according to their own needs.
