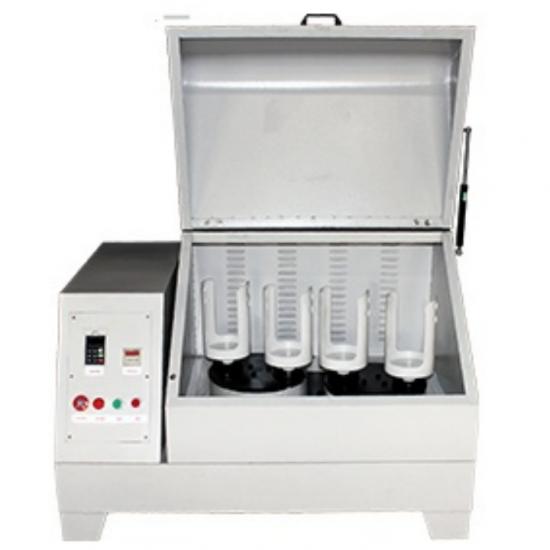

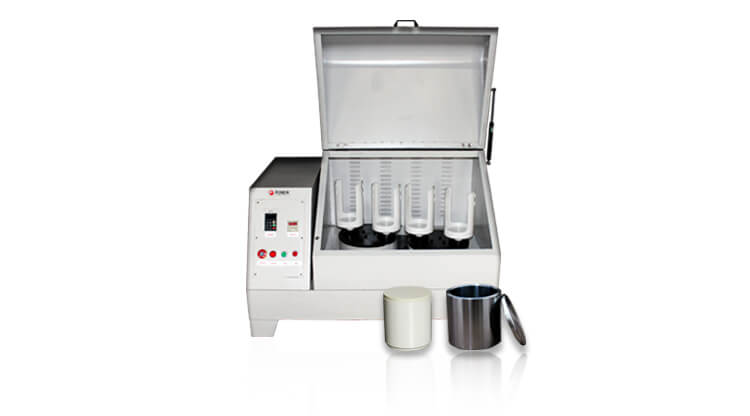

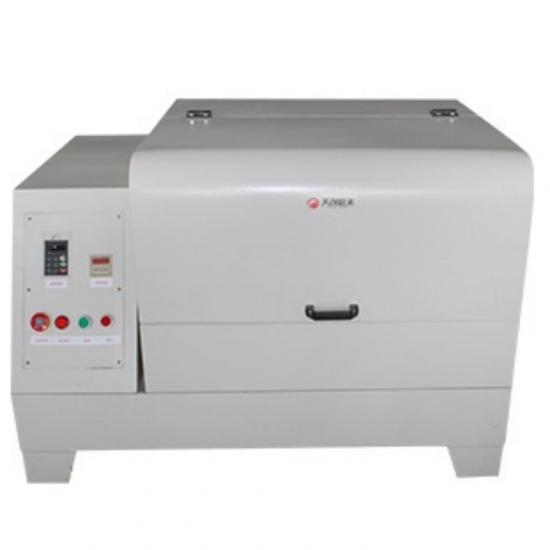

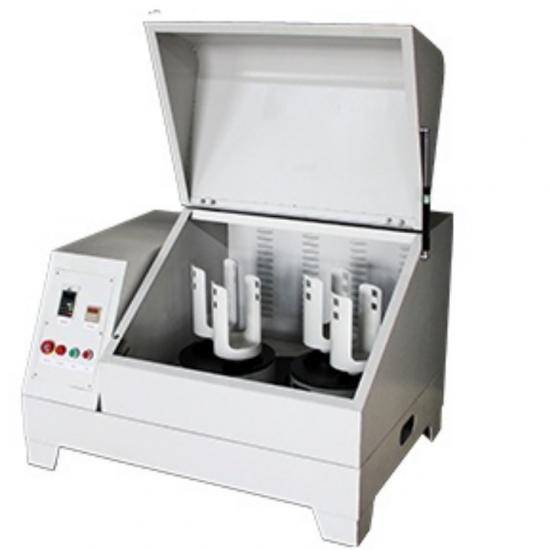

Small Desktop High Efficiency and High Energy Dual Planetary Ball Mill

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-SXQM
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
20 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Small Desktop High Efficiency and High Energy Dual Planetary Ball Mill

Product operating principle

The double-planet structure enables the large planetary disk to drive the movement of the small planetary disk. Compared with the ordinary planetary ball mill of the same specification, the radius of revolution and the rotational speed of the grinding jar are magnified. The centrifugal force acting on the grinding balls increases several times, and the collision, shearing and friction between the grinding balls are significantly enhanced, improving the grinding effect and efficiency. Some materials can be ground to the nanometer level. The double planetary ball mill is a typical high-efficiency and high-energy ball mill.

Product Applications

TMAX-SXQM series of dual planetary ball mill is a kind of essential devise for labs, which want to mix, grind or produce high-tech new material in small lot. It is widely used in the following industries such as electronic, magnetism, medicine, ceramic, geology, mineral, metallurgy, build material, chemical, light industry, beauty, environmental protection, and etc.

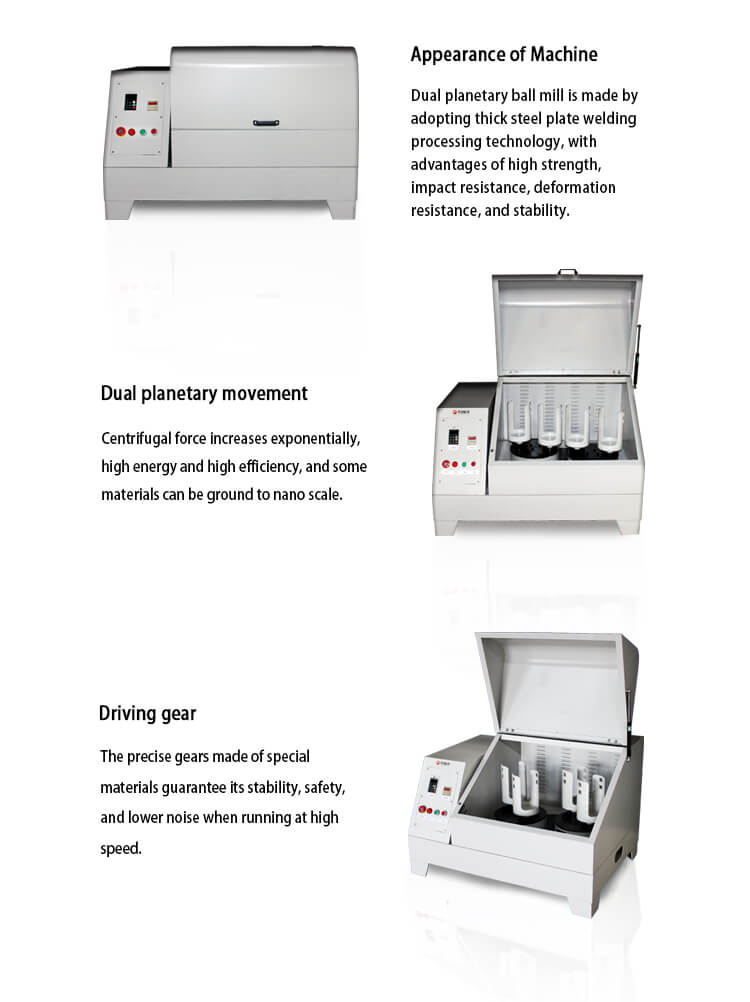

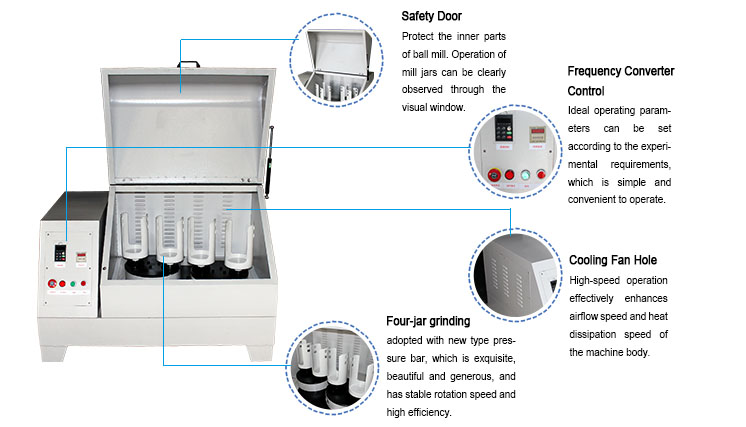

Product feature

The professional appearance design and industrial shape of the equipment shell are made by welding thickened steel plates, which features high strength, impact resistance, anti-deformation, and a grand and stable appearance. The materials of the machined parts undergo strict heat treatment processes and are processed by numerical control technology. The transmission gears are made of special materials and are precision gears to ensure smooth, safe and low-noise operation of the equipment at high speed.

Technical Data Sheet of Dual Planetary Ball Mill

Drive Mode	Gear drive
Operation Mode	Two or four mill jars can be used for each grinding
Max Capacity for Materials	Less than 1/3 of each jar volume Total max capacity: less than 1/3 of total jars volume
Volume of the ball mill jar	Each can is 0.05L-50L, with a total volume of 0.2L-200L
Feed Size	Soft and crispy materials ≤ 10mm Other hard materials ≤ 3mm
Output Granularity	Smallest granularity can be achieved to 0.1μm
Speed adjustment mode	The brand frequency converter offers stepless speed regulation with a rotational speed accuracy of 0.2 /min
Rotation Speed Ratio	1:2
Max Continuous Operating Time	72 Hours

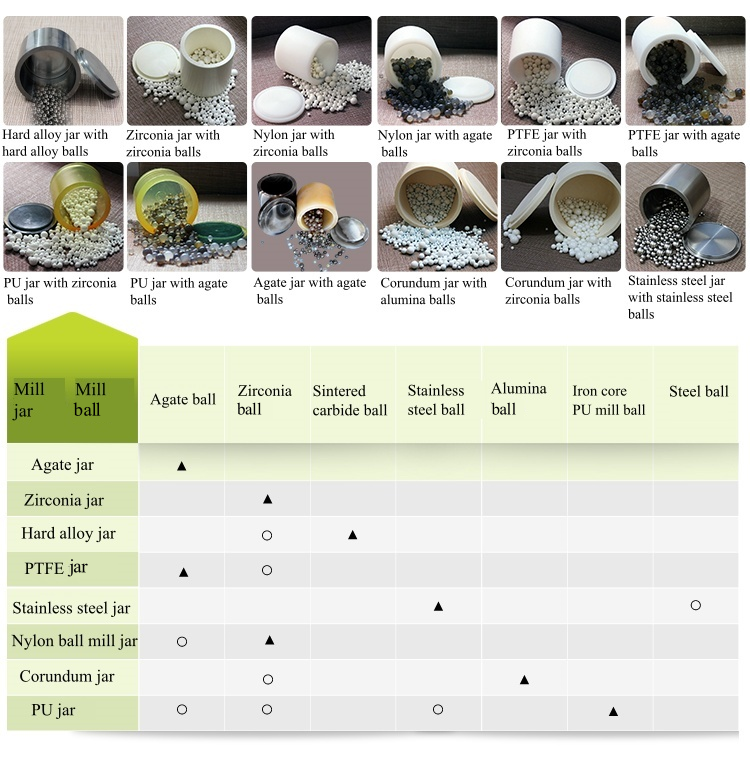

Materials of Available Mill Jars	304 Stainless steel, 316l stainless steel, Zirconia, Nylon, PU,Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide

Table 1 Technical Parameters For Dual Planetary Ball Mill

Model No.	Specifications	Matchable Sizes of Mill Jars	Matched Quantity	Matchable Sizes of Vacuum Mill Jars(Optional)
TMAX-SXQM-0.4	0.4L	50ml, 100ml	4 pcs	50ml
TMAX-SXQM-1	1.0L	250ml	4 pcs	50ml. 100ml
TMAX-SXQM-2	2.0L	500ml	4 pcs	50ml, 100ml, 250ml
TMAX-SXQM-4	4.0L	1000ml	4 pcs	50ml-500ml
TMAX-SXQM-6	6.0L	1L-1.5L	4 pcs	50ml-1000ml

Table 2 Technical Parameters For Dual Planetary Ball Mill

TMAX-

Model No.	Voltage	Power	Rotation Speed	Noise
TMAX-SXQM-0.4	220V-50Hz	1.5KW	140-1120 rpm	Less than 58db
TMAX-SXQM-1	220V-50Hz	1.5KW	140-1120 rpm	Less than 60db
TMAX-SXQM-2	220V-50Hz	1.5KW	140-1120 rpm	Less than 60db
TMAX-SXQM-4	220V-50Hz	1.5KW	140-1120 rpm	Less than 60db
TMAX-SXQM-6	220V-50Hz	1.5KW	140-1120 rpm	Less than 60db

Table 3 Technical Parameters For Dual Planetary Ball Mill

Model No.	Speed Control	Net Weight	Net Dimensions
TMAX-SXQM-0.4	Frequency Control	250kgs	1150800760mm
TMAX-SXQM-1	Frequency Control	250kgs	1150800760mm
TMAX-SXQM-2	Frequency Control	250kgs	1150800760mm
TMAX-SXQM-4	Frequency Control	250kgs	1150800760mm
TMAX-SXQM-6	Frequency Control	250kgs	1150800760mm
