Item No.:
TMAX-PC-15BPayment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
15 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:

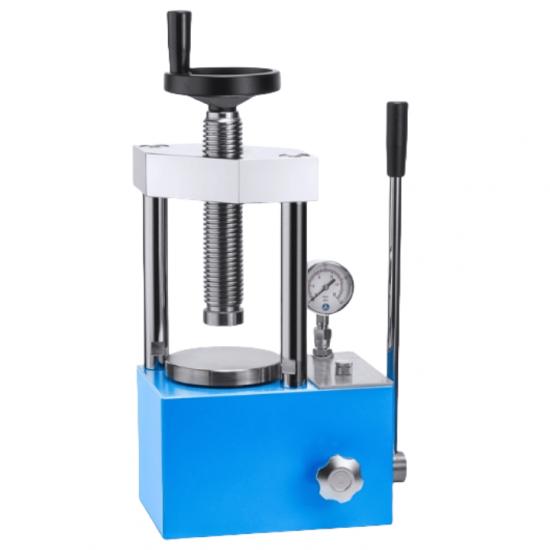

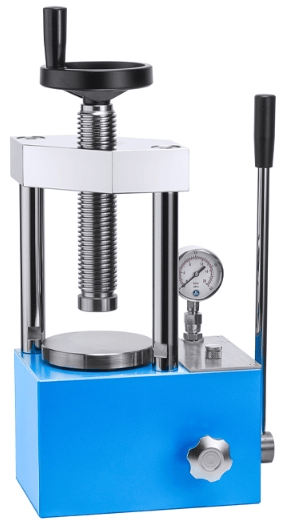

One year limited warranty with lifetime technical supportLaboratory 15T 30Mpa Two-column Manual Hydraulic Press Machine with Digital Pointer Pressure Gauge

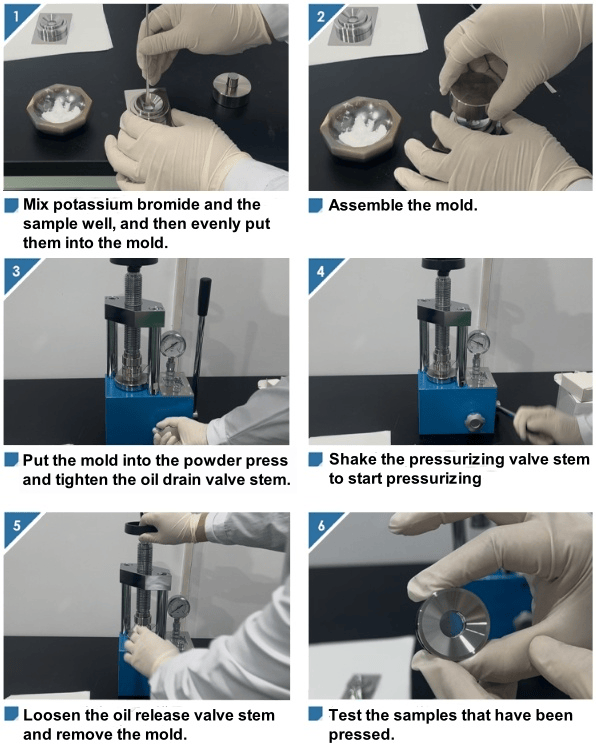

Operation steps
Technical parameters
|
Instrument model |
PC-15B |
|
Pressure range |
0-15T(0-30Mpa) |
|
Piston diameter |
Chrome-plated cylinder φ80mm(d) |
|
Overall structure |
The equipment has no sealed connection, reducing oil leakage points |
|
Pressure gauge |
Dual-scale display of pressure and intensity |
|
Maximum piston stroke |
30mm(T) |
|
Pressure stability |
≤1 MPa/10 min |
|
Workbench diameter |
Φ90mm (D) |
|
The number of columns |
Two columns |
|
Column spacing |
140×160 (M×N) |
|
Product size/weight |
270×200×440 mm(L×W×H) /55kg |
|
Packaging size/weight |
405×330×550 mm (L×W×H)) /64kg |
|

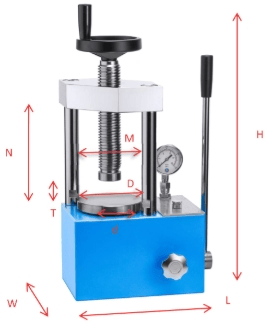

Schematic diagram of powder press dimensions |
|

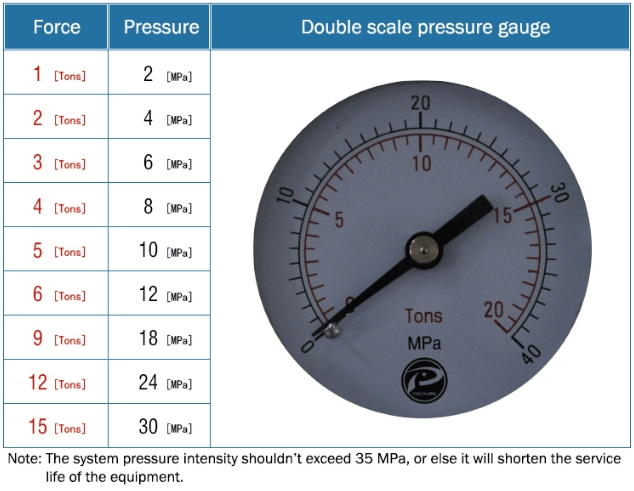

Pressure conversion
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
