Lab Transparent Acrylic Glovebox

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-GBT
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Lab Transparent Acrylic Lab Transparent Acrylic Glovebox

Product Description

During scientific experiments, some substances are highly prone to oxidation and deliquescence under atmospheric conditions, which makes the chemical reactions of the test substances and the pre-processing of the samples extremely difficult, thereby affecting the experimental process and test results. The organic glass vacuum glove box (also known as the vacuum inert gas operation box) effectively addresses these issues. This device enables the safe insertion and removal of test samples, and allows for smooth operation, reactions, and testing in an oxygen-free and water-free environment, ensuring the normal conduct of scientific experiments.

Product features

1. Simple structure, convenient to use, capable of transmitting ultraviolet light, lightweight;

2. Under normal conditions, its form is stable, highly transparent, resistant to chemical corrosion and climate change;

3. The box is equipped with porous electrical sockets, facilitating scientific experiments;

4. Good sealing performance, and can shield and absorb the α-rays and low-energy β-rays emitted by radioactive substances to protect human tissues from being damaged by ionizing radiation;

5. It can be used for inert gas replacement to maintain an anaerobic and anoxic operating environment.

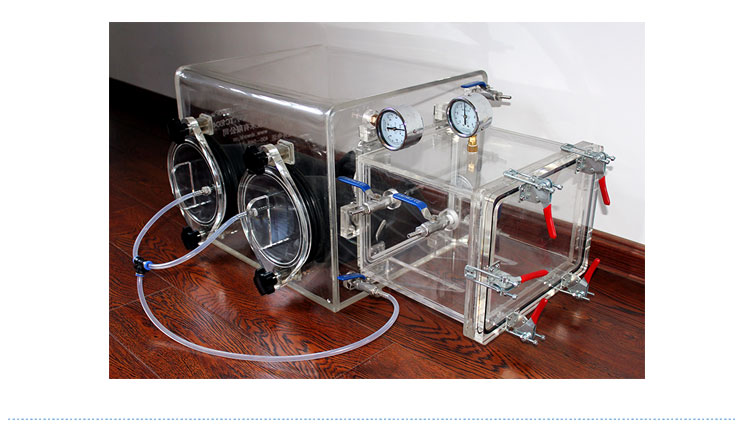

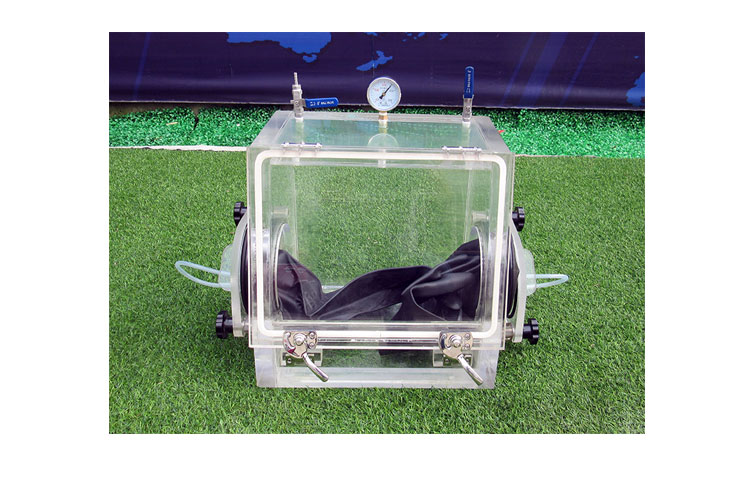

Product picture

Glove Box

Product Parameter

No.	Model No.	Box Size (mm)	Material	Glove hole size (mm)	Glass Thickness (mm)	Left door opening size (mm)
1	TMAX-GBT-10A	740450500	Organic Glass or Acrylic Glass	Φ150	10	250×320
2	TMAX-GBT-15A	740450500		Φ150	15	250×320
3	TMAX-GBT-30A	740450500		Φ150	30	300×330
4	TMAX-GBT-10B	1000500500		Φ150	10	250×320
5	TMAX-GBT-15B	1000500500		Φ150	15	250×320
6	TMAX-GBT-30B	1000500500		Φ150	30	300×330
7	TMAX-GBT-10C	1200600600		Φ150	10	350×380
8	TMAX-GBT-15C	1200600600		Φ150	15	350×380
9	TMAX-GBT-30C	1200600600		Φ150	30	350×380
10	TMAX-GBT-10D	1200800700		Φ150	10	350×380
11	TMAX-GBT-15D	1200800700		Φ150	15	350×380
12	TMAX-GBT-30D	1200800700		Φ150	30	350×450

No.	Model No.	Size of Transition Cabinet (mm)	Box body pressure-bearing capability	Remarks
1	TMAX-GBT-10A	No Transition Cabinet	3000pa+3000pa	Isolated from dust, no vacuum
2	TMAX-GBT-15A	240240240	3000pa+3000pa	Slight vacuum can be pumped, water or oxygen removal system is for option.
3	TMAX-GBT-30A	240240240	-0. 1~0MPa	Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal
4	TMAX-GBT-10B	No Transition Cabinet	3000pa~+3000pa	Isolated from dust, no vacuum
5	TMAX-GBT-15B	240240240	3000pa~+3000pa	Slight vacuum can be pumped, water or oxygen removal system is for option.
6	TMAX-GBT-30B	240240240	-0.1~0MPa	Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal
7	TMAX-GBT-10C	No Transition Cabinet	3000pa~+3000pa	Isolated from dust, no vacuum
8	TMAX-GBT-15C	240240240	3000pa~+3000pa	Slight vacuum can be pumped, water or oxygen removal system is for option.
9	TMAX-GBT-30C	240240240	-0.1~0MPa	Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal
10	TMAX-GBT-10D	No Transition Cabinet	-3000pa~+3000pa	Isolated from dust, no vacuum
11	TMAX-GBT-15D	240240240	-3000pa~+3000pa	Slight vacuum can be pumped, water or oxygen removal system is for option.
12	TMAX-GBT-30D	240240240	-0.1~0MPa	Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal

Note:

1. The box types are classified into three categories (choose one from the three): box with a transition compartment, box with a left-opening door, and box with a transition compartment + left-opening door.

2. The water and oxygen removal function is achieved by replacing inert gas (due to the characteristics of the acrylic material, water removal cannot be guaranteed, if the customer has relevant requirements, please communicate with the technical department in advance).

3. Leakage rate: meets the leakage rate requirements of level 2 sealed box rooms as stipulated in ISO10648-2 (hourly leakage rate (h-1) ≤ 2.5×10-3).

Equipment quality and guarantee

This product is covered by a one-year warranty for the main unit and lifetime technical support, except for damage caused by human factors or abnormal use.
