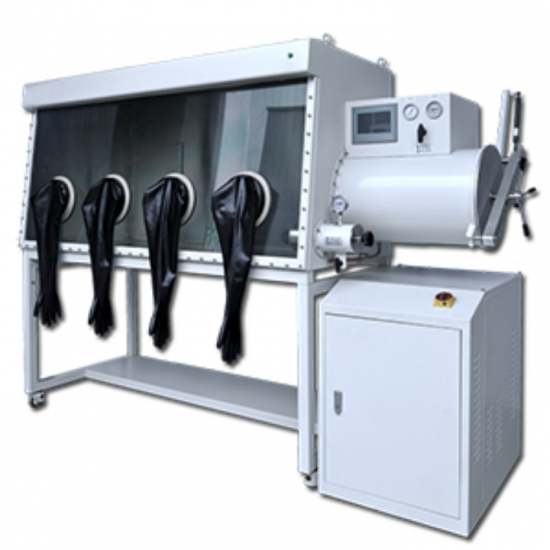

Specifications of Standard Model of Purification Glove Box

No.

Model No.

Box Dimensions

Total Dimensions

Operating Sides

Numbers of Gloves

Options

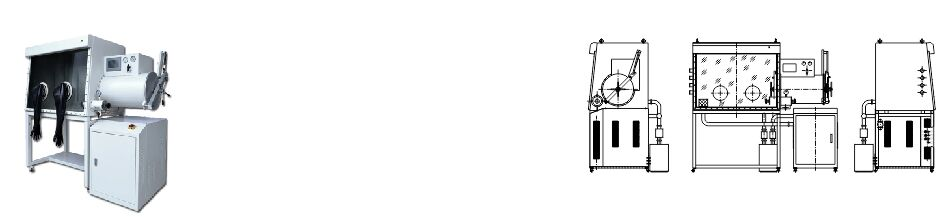

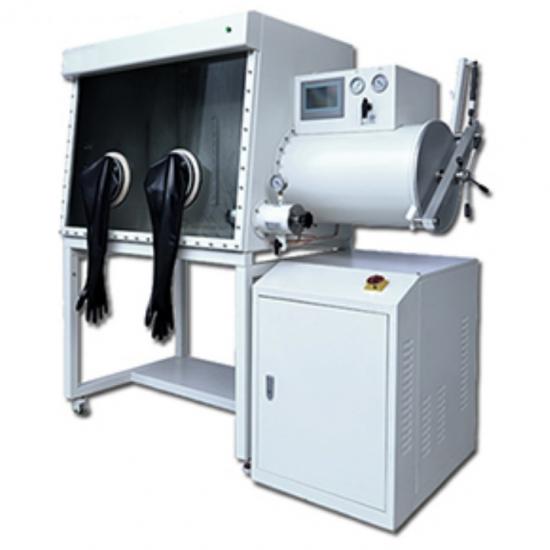

1

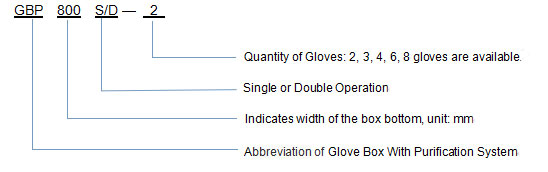

TMAX-GBP800-2

1200*800*930mm

1915*830*1830mm

Single

2

Single or double purification columns

2

TMAX-GBP1000S-2

1200*1000*930mm

1915*1060*1830mm

Single

2

Single or double purification columns

3

TMAX-GBP1000D-4

1200*1000*930mm

1915*1060*1830mm

Double

4

Single or double purification columns

4

TMAX-GBP1200S-2

1200*1200*930mm

1915*1260*1830mm

Single

2

Single or double purification columns

5

TMAX-GBP1200D-4

1200*1200*930mm

1915*1260*1830mm

Double

4

Single or double purification columns

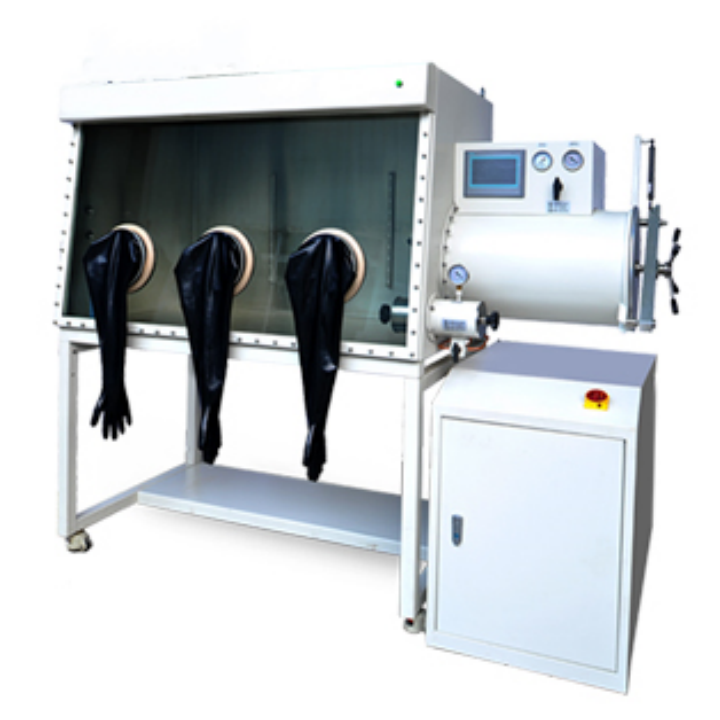

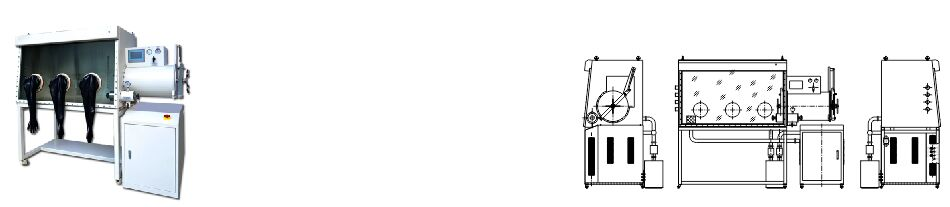

6

TMAX-GBP800-3

1500*800*930mm

2215*1060*1830mm

Single

3

Single or double purification columns

7

TMAX-GBP1000S-3

1500*1000*930mm

2215*1060*1830mm

Single

3

Single or double purification columns

8

TMAX-GBP1000D-6

1500*1000*930mm

2215*1060*1830mm

Double

6

Single or double purification columns

9

TMAX-GBP1200S-3

1500*1200*930mm

2215*1260*1830mm

Single

3

Single or double purification columns

10

TMAX-GBP1200D-6

1500*1200*930mm

2215*1260*1830mm

Double

6

Single or double purification columns

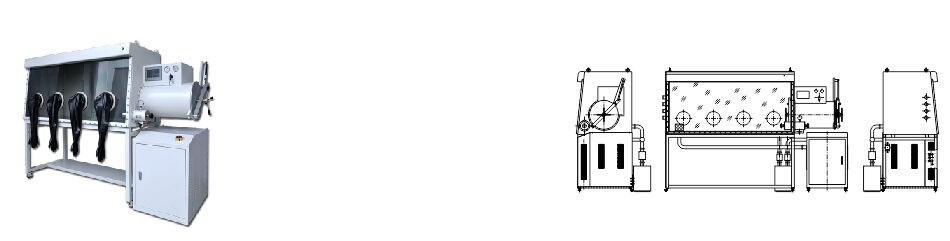

11

TMAX-GBP800-4

1900*800*930mm

2615*1060*1830mm

Single

4

Single or double purification columns

12

TMAX-GBP1000S-4

1900*1000*930mm

2615*1060*1830mm

Single

4

Single or double purification columns

13

TMAX-GBP1000D-8

1900*1000*930mm

2615*1060*1830mm

Double

8

Single or double purification columns

14

TMAX-GBP1200S-4

1900*1200*930mm

2615*1260*1830mm

Single

4

Single or double purification columns

15

TMAX-GBP1200D-8

1900*1200*930mm

2615*1260*1830mm

Double

8

Single or double purification columns

Notes：
Cabinet water and oxygen content under the standard condition:
Water content ≤1ppm, oxygen content≤1 ppm (Note: Standard condition is that an atmospheric pressure, constant temperature of 20 degree).
Leakage Rate: ≤0.05Vol%/ h (subject to change value of oxygen content in box)
Used Gases
a) Working Gas: N2、Ar、He and etc.
b) Controlling Gas: Compressed air or Inert Gas.
c) Restoring Gas: Mixed gas of working gas and hydrogen.
Restoring gas is as same as working gas if there is only water removal system or oxygen removal system.

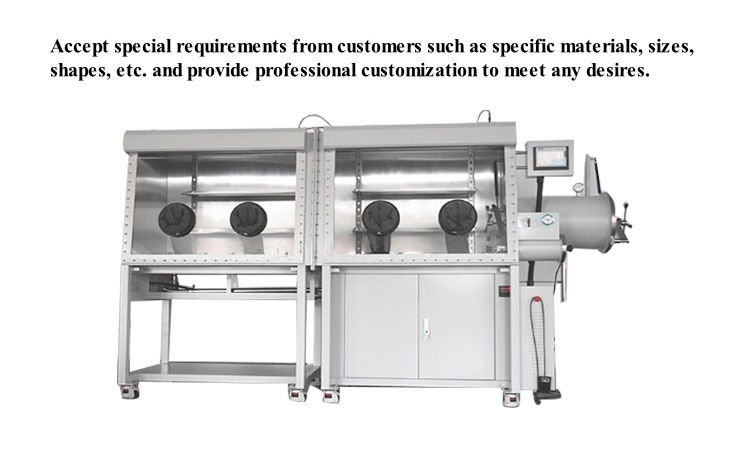

Remarks: All Single side boxes of 4 gloves are assembled glove box. Numbers of assembled box can be ordered as per customer’s needs. Quantity of purification columns is also designed to be matched according to customer’s requirements

Gas pressure withstand by the box body

 -3000Pa -+3000Pa

The vacuum degree value that the transition chamber can withstand

<100pa

Cabinet water content in the standard condition (Note: The standard condition is one atmospheric pressure, constant temperature of 20 degrees)

<1ppm

Cabinet oxygen content in the standard condition (The standard condition is one atmospheric pressure, constant temperature of 20 degrees )

<1ppm

Leakage rate

<0.05vol%/h

NAME

DESCRIPTION

Automatic control

Controlled and monitored automatically by the program control unit.

Box body manual/auto gas replacement

Before initial use, cabinet air shall be "replaced" with inert gas or nitrogen, which can be easily achieved by using auto gas replacement function of the cabinet provided by the system, gas replacement can also be achieved manually.

Transition cabinet manual/auto replacement

 When material was placed in a box, the transition cabinet of the gas needs to be replaced. You may automatic gas exchange function provided by the airlock system; you may also achieve gas replacement manually.

Gas purification control

After setting up the work status and results, the system purification procedures set to “Auto”, the system will automatically maintain the atmosphere condition of the cabinets, then the system will automatically complete the work; you may also choose to manual control.

Pedal air-pressure control

Use the foot controller-through inflation or exhaust system, to control gas pressure in the cabinets.

Reduction of purification system

Purification materials restore is done automatically by the system, we only need to set the conditions of system restore. Open “restore”, the system will automatically complete the restoration work, the whole process does not need to monitor.

On-line operating condition detection

The control system provides users with the operating condition detection function of the component of the equipment. Such function can be used to observe operating condition of the component and inspect fault source of each function and component.

System parameter setting

System settings function, users can set the system parameters to achieve the desired working conditions and feature set.

Data logging function

The system provides operating parameter record of the equipment, this record can be traced back to monitor production or experiment.

Control of gas reserve function

When the temporary cutting of control-gas supply, or cutting off control-gas source for some time, the control-gas reserve will protect the equipment continue working.

Standby function of cycle gas cooled

Purification system provides a heat exchange for cooling the circulating gas, can be used alone by injecting the coolant to control the temperature of the circulating gas.

Multi-level safety system

The control system sets up a variety of security features, include multilevel security tips, alarm and disable function, to protect the safety of operating personnel and equipment.

Protection function when purification cycle blocked

When the circulation system is blocked, the control system prompts alerts, and take the initiative to adjust the speed of air, in order to protect the motor, though this function can also check out system cycle blocked, pipeline poor, filter control dust obstruction, and other issues.
