Item No.:
TMAX-MS-ZN320BCertificate:
CE CertifiedWarranty:

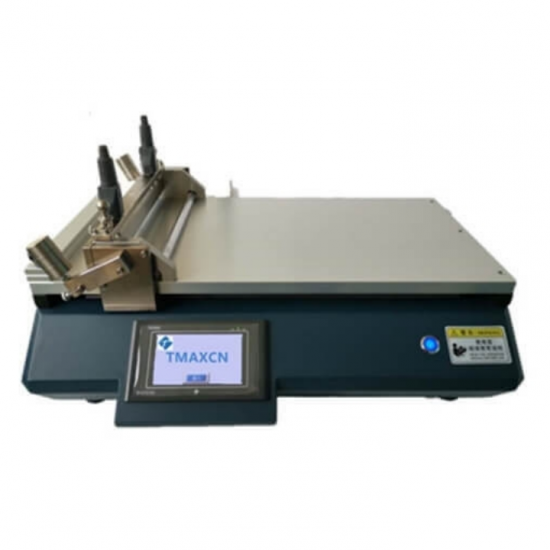

1 Year limited warranty with lifetime supportLab 160C Digital Display Film Coating Machine with Doctor Blade And Wire Bar
Features
TMAX-MS-ZN320B is an automatic coating machine with integrated functions such as bar coating, doctor blade and heating. It is an ideal equipment for coating electrodes, glues and other high viscosity samples in the laboratory. we are dedicated to providing quality blade coater for customers.
Specifications
|
Control system |
5 inch PLC touch screen |
|
Coating method |
Doctor blade/bar can be used alternately |
|
Heating |
normal temperature ~ 160 degrees (constant temperature setting) |
|
Effective coating range |
300*450mm |
|
Coating thickness |
0.005-3MM |
|
Automatic control |
travel setting/speed setting/temperature setting |
|
Suitable for |
Lithium battery, PET, aluminum foil, paper and other flat materials |
