Main parameter

PN: SK2V-3-12TP
Max.Temp: 1200C

Working temperature:0-1100C

Tube diameter:100mm ,inner diameter:94mm

The heating zone length:350mm

Tube material:Quartz tube

Heating rate:0~10 Degree/Min

Heating element:Resistance wire

Thermocouple:K type

Temperature accuracy: ±1℃

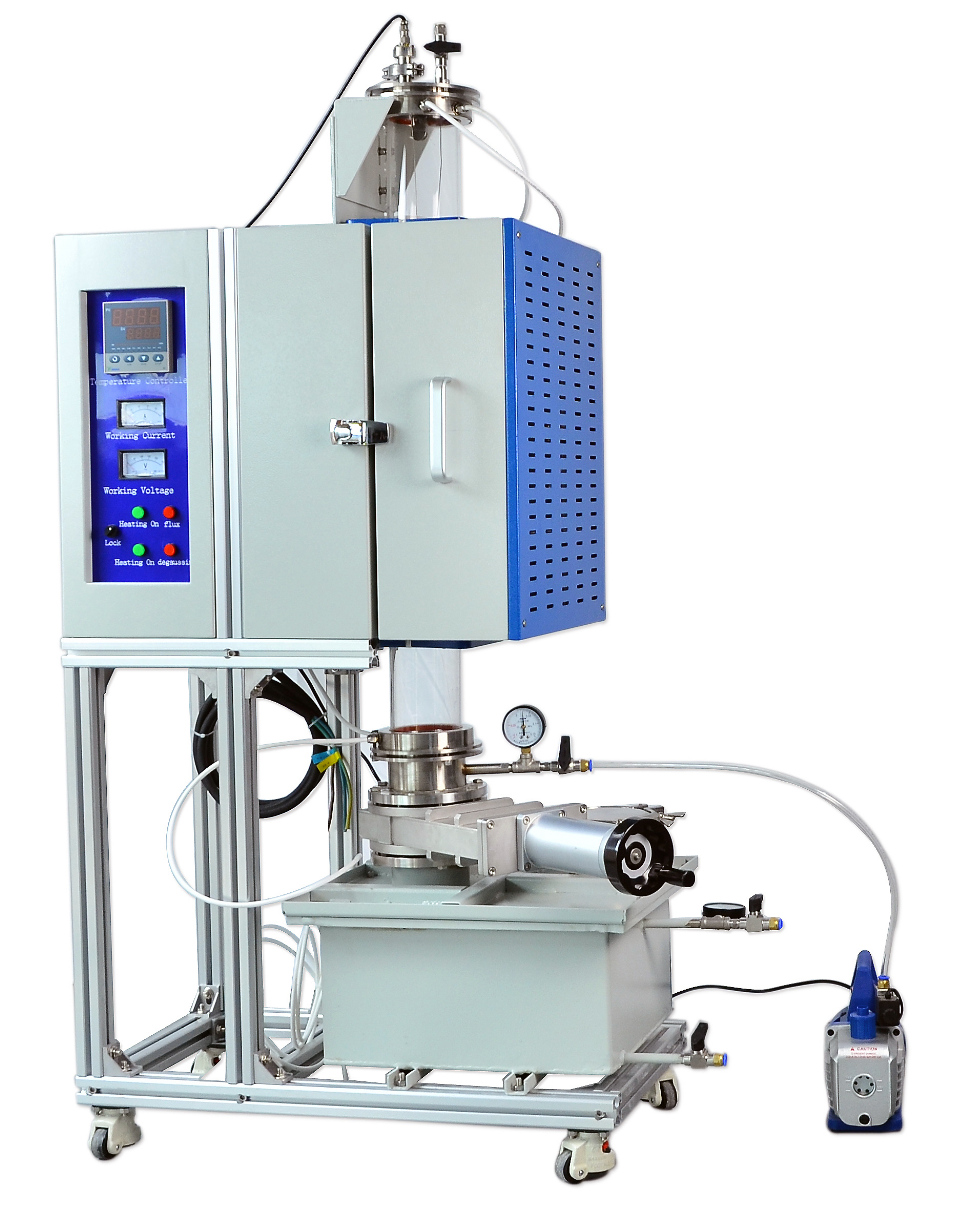

Sample hanging design

The top flange is installed with an electromagnet sample hanging device. Click the control button of the electromagnetic hanging device to release the sample into the quenching box. The sample and the suspension wire fall into the quenching box together;

The bottom flange is connected to a cartridge valve (manual operation).

Quenching tank

The liquid container is sealed to the furnace tube through the gate valve, allowing the sample to fall into the liquid container without contamination

Sealing way

Adopt 304 stainless steel Water cooled flange, Prevent excessive temperature,with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing

Inlet gas/Atmosphere

It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

Gas control

The air inlet can be set up 1 air intakes, each air inlet is provided with a ball valve, connected with a pressure gauge. The air outlet is connected with one air outlet, and all holes are equipped with ball valves.

Furnace Chamber material

Adopt advanced light alumina ceramic fiber, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

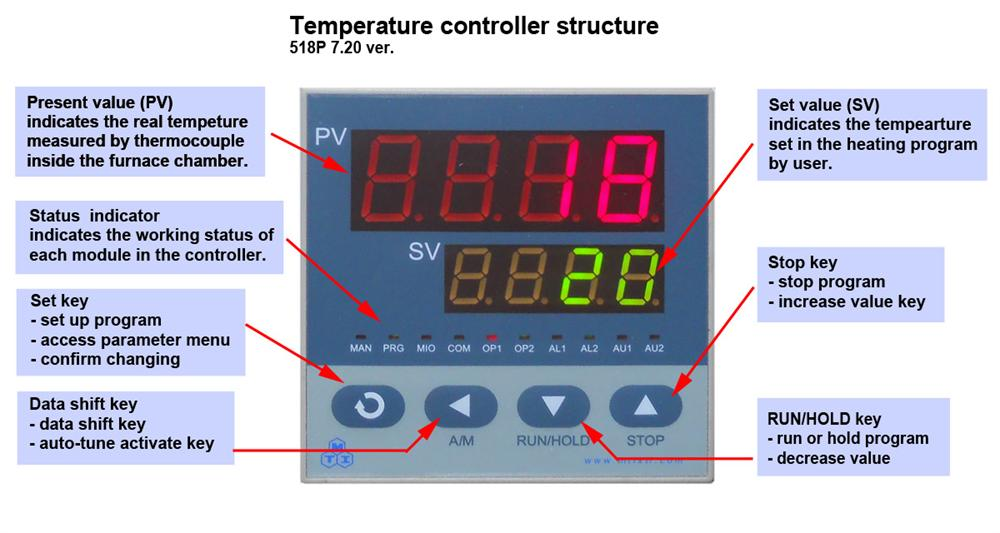

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (ultra-high temperature protection, coupling protection, overcurrent protection, and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and quartz tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

Crucible hook

1 pc

Quartz tube

1 pcs

Stainless steel water cooled flange

1 set

10mm Air pipe

Tube stopper

1pcs

User manual

1 book

Vacuum pump

1 set
