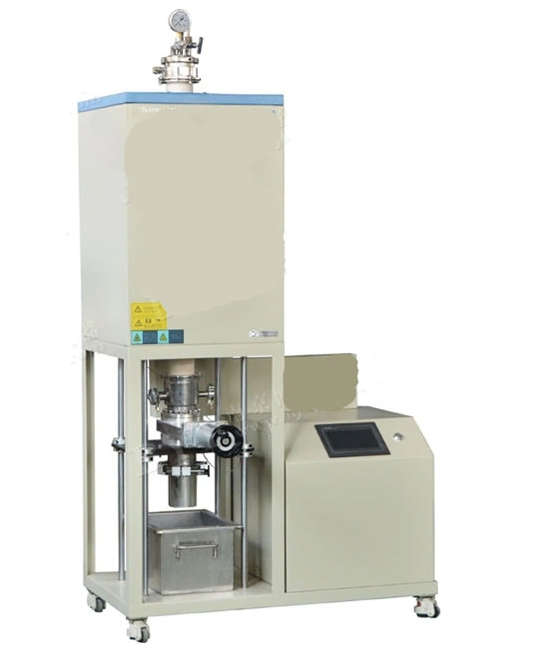

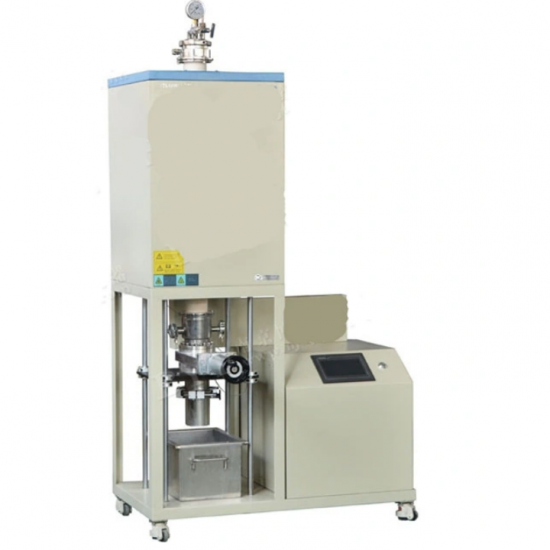

Main parameter

PN: SK2-5-18TPV
Max.Temp: 1700C

Working temperature:0-1550C

Tube diameter:60mm

The heating zone length:300mm

Tube material:Alumina quartz tube

Heating rate:0~10 Degree/Min

Heating element:Mosi2 heating element

Thermocouple:B type

Temperature accuracy: ±1℃

Inlet gas/Atmosphere

It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

Gas control

The air inlet can be set up 1 air intakes, each air inlet is provided with a ball valve, connected with a pressure gauge. The air outlet is connected with vacuum pump, and all holes are equipped with ball valves.

Furnace Chamber material

Adopt the advanced light alumina ceramic fiber, with excellent thermal insulation effect, light weight, high temperature resistance, The energy saving effect is 60-80% of the old electric furnace.

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

Sealing way

Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (ultra-high temperature protection, coupling protection, overcurrent protection and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and Alumina tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

(Not including alumina tube holder,tank)

1 set

High temperature gloves

1 pair

Crucible clip

1 pc

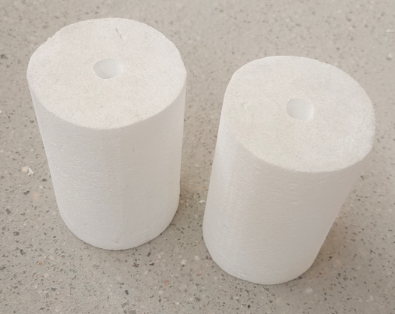

Tube stopper

1pc

User manual

1 book

Vacuum pump

1 set
