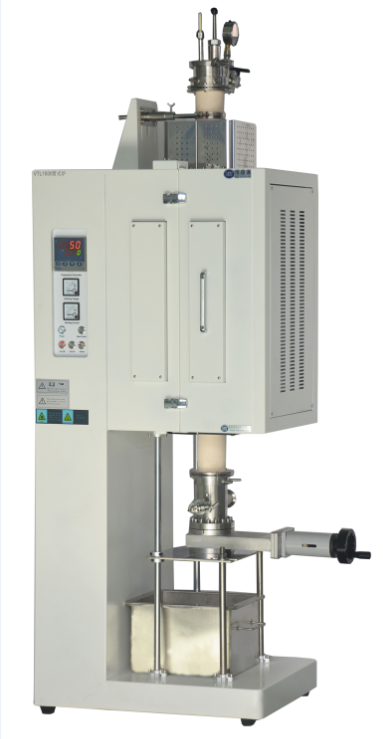

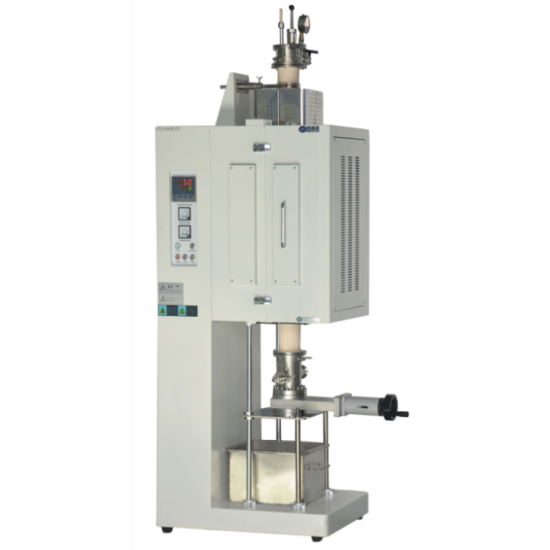

Main parameter

PN: SK2V-6-14TPQ
Max.Temp: 1400C

Working temperature:0-1300C

Tube diameter:100mm inner diameter:90mm

The heating zone length:350mm

Tube material:Alumina tube

Heating rate:0~10 Degree/Min

Heating element:Sic heater

Thermocouple:S type

Temperature accuracy: ±1℃

Sample hanging design

The top flange is installed with an electromagnet sample hanging device. Click the control button of the electromagnetic hanging device to release the sample into the quenching box. The sample and the suspension wire fall into the quenching box together;

The bottom flange is connected to a cartridge valve (manual operation).

Quenching tank

The liquid container and furnace tube are not sealed, so a sealing system is not required during quenching.

Sealing way

Adopt 304 stainless steel Water cooled flange, Prevent excessive temperature,with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing

Inlet gas/Atmosphere

It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

Gas control

The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves.

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (ultra-high temperature protection, coupling protection, overcurrent protection  and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and Alumina tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

Crucible hook

1 pc

Alumina tube

1 pc

Stainless steel water cooled flange

1 set

10mm Air pipe

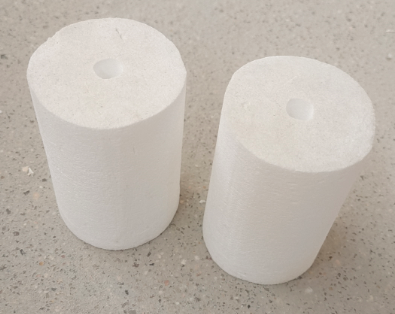

Tube stopper

1pc

User manual

1 book

Vacuum pump

1 set
