Power Supply AC

380V

Power

Max. design 260KW

Charging Tables

Two units

Furnace Chamber Dimensions (mm)

Depth 3050 × Width 1000 × Height 850

Longterm Working Temperature

≤1500℃

Temperature Control Range

80℃ to 1600℃

Temperature Measuring Element

Platinum-rhodium Type S thermocouple

Heating Element Location

Both sides of chamber + front and rear of furnace door; total 4-sided heating

Temperature Control Accuracy

±1℃ (Integrated circuit control, no overshoot)

Temperature Uniformity

±10℃ (depends on chamber size)

Temperature Control Points

Two points

Exhaust Ports

Auto open/close by temperature controller; two ports, φ60mm

Side Wall Holes

φ30mm; 5 upper and 5 lower on left side

Heating Rate

Adjustable freely; recommended max. 15℃/min, min. 1℃/h

Heating Element

MoSi₂ (molybdenum disilicide) rods

Furnace Body

CNC machined, polished, ground, pickled, phosphated, plastic powder coated and high-temperature baked; two-tone design, attractive appearance

Furnace Structure

Air-cooled double-layer with guide baffles for full cold-air circulation, cooling terminals and preventing oxidation

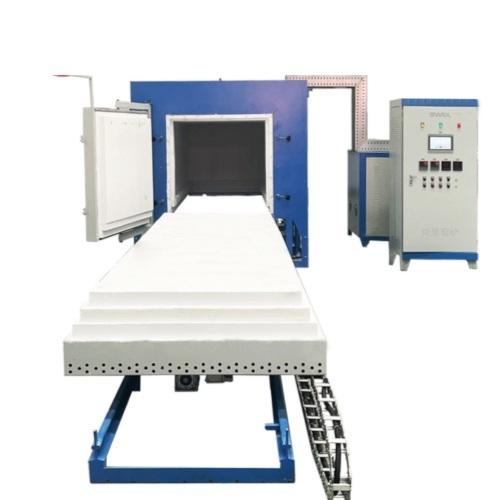

Door Opening

Electric side opening; trolley extends 1200mm from closed door

Door Sealing

6 sets of air cylinders on both sides and rear

Loading Capacity per Table

3 tons

Total Weight

Approx. 5 tons

Refractory Material

Vacuum formed highpurity alumina lightweight lining

Roof Structure

Flat suspended ceiling
